Body Control Systems - Diagnostics
›
Circuit Inspection
›
Door Lock Control Switch Circuit
›
Wiring Diagram

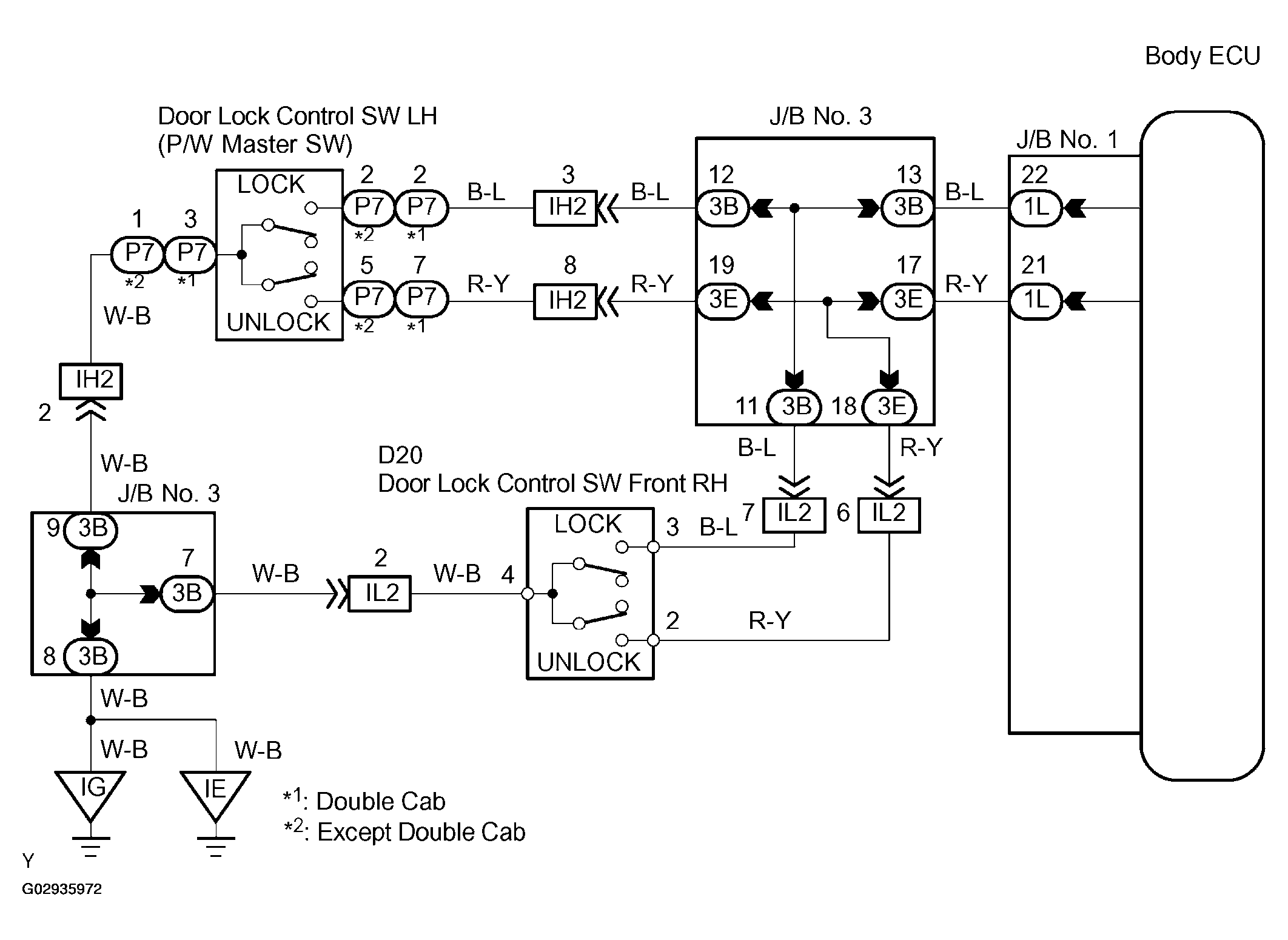

Door Lock Control Switch Circuit: Wiring Diagram
Fig 1: Identifying Door Lock Control Switch Circuit
