Toyota
›
2004
›
Tacoma Base, 4D Pickup
›
Repair and Diagnosis
›
Body & Frame
›
Body, Cab Control Systems
›
Body Control Systems - Diagnostics
›
Circuit Inspection
›
Ignition Switch Power Source Circuit
›
Wiring Diagram

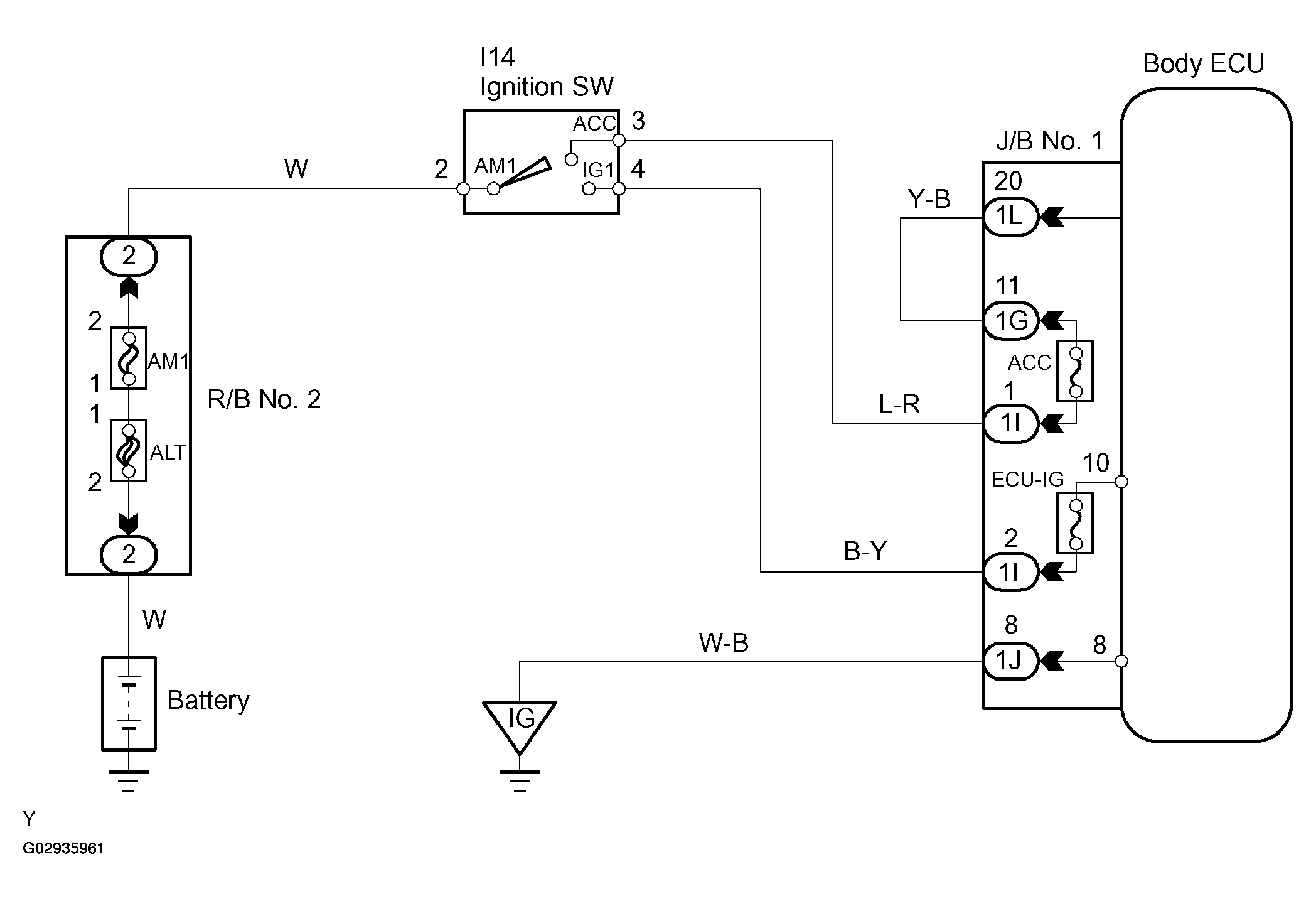

Ignition Switch Power Source Circuit: Wiring Diagram
Fig 1: Identifying Ignition Switch Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
