Problem Symptoms Table
›
Power Window Control System
Power Window Control System

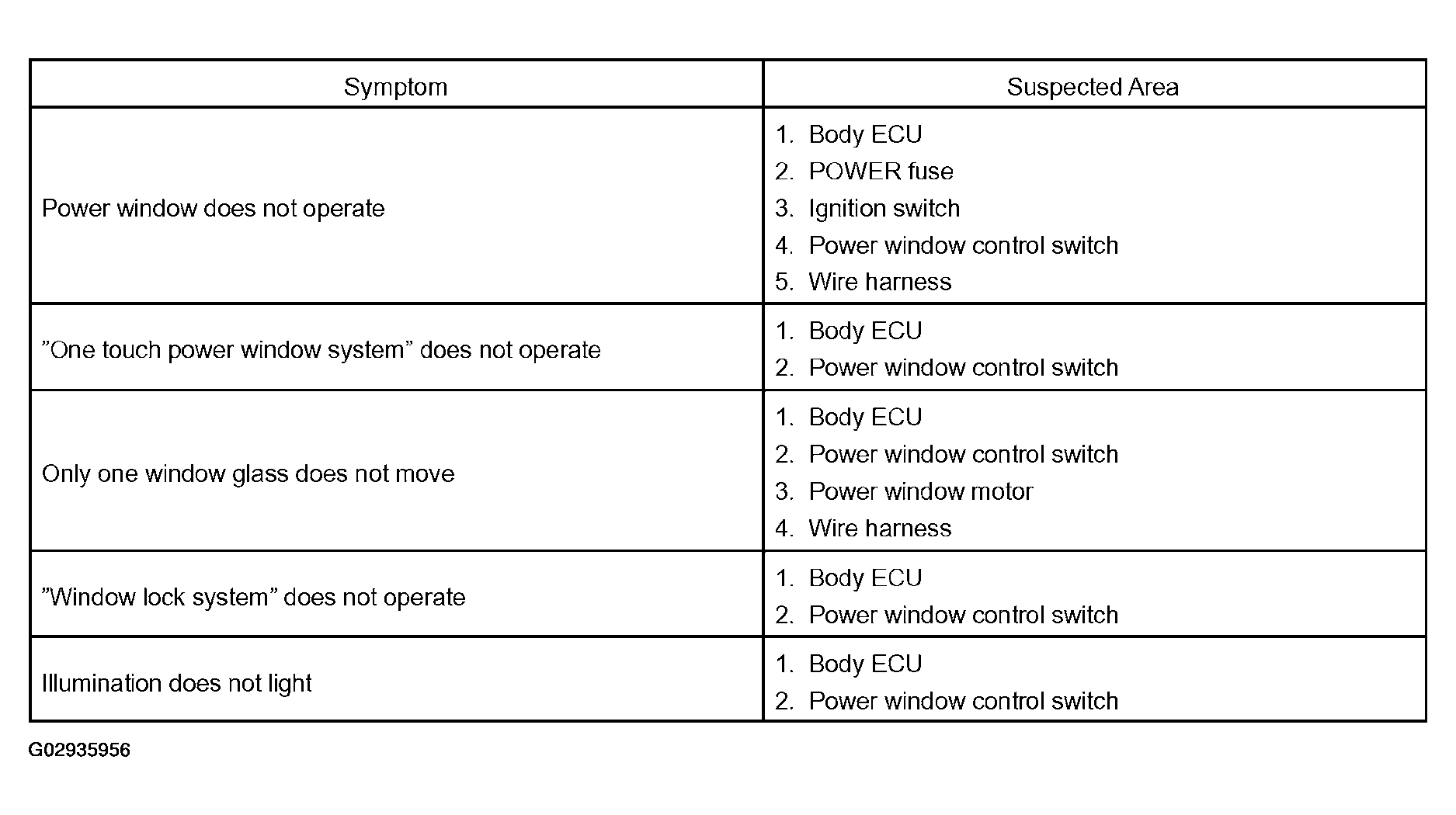

Fig 1: Identifying Power Window Control System Symptoms
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
