Terminals Of Ecu — 2004 Toyota Tacoma Base, 4D Pickup Service Manual ~ FixVault

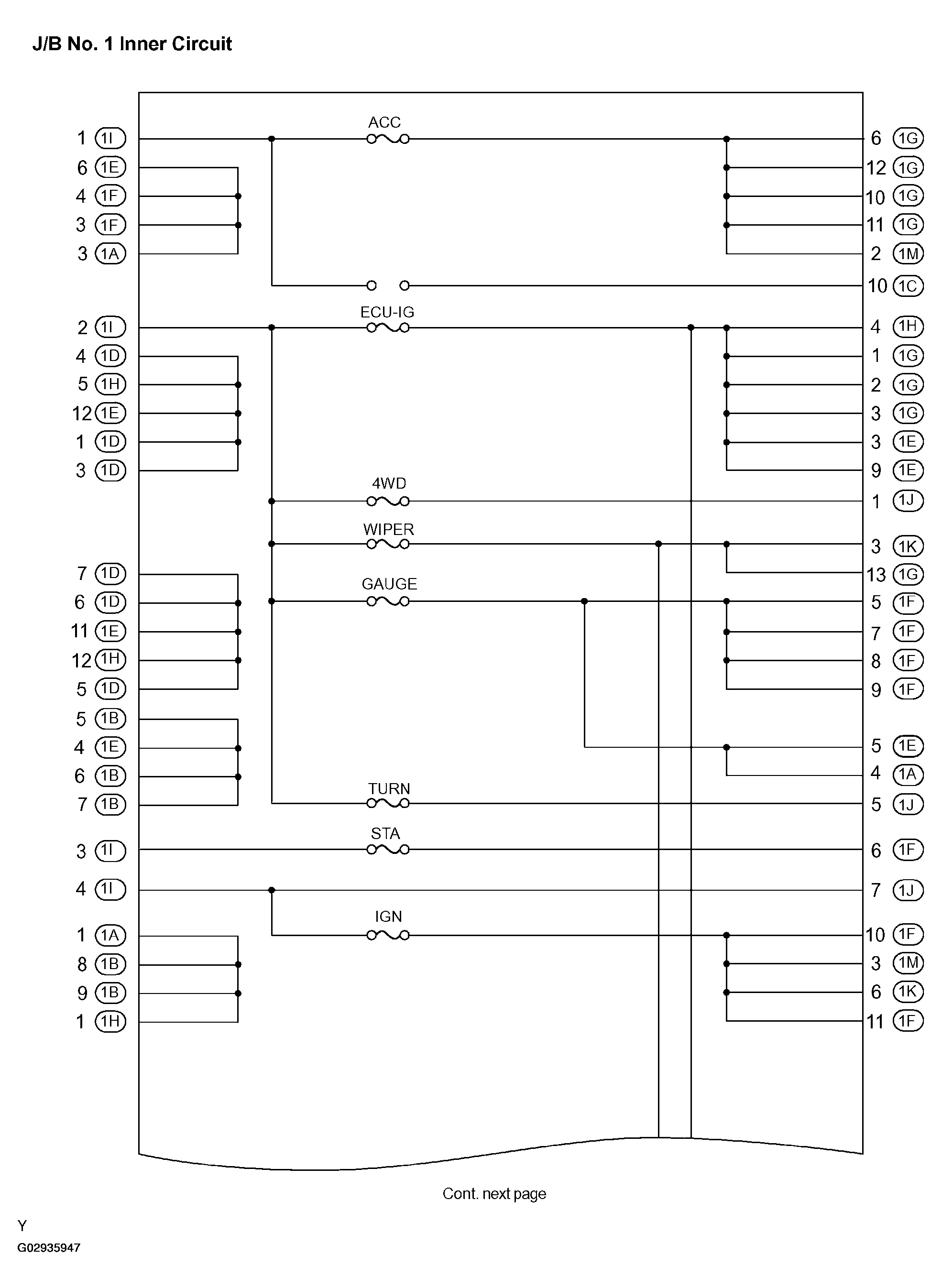

Fig 1: Locating ECU Inner Circuit Terminals (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

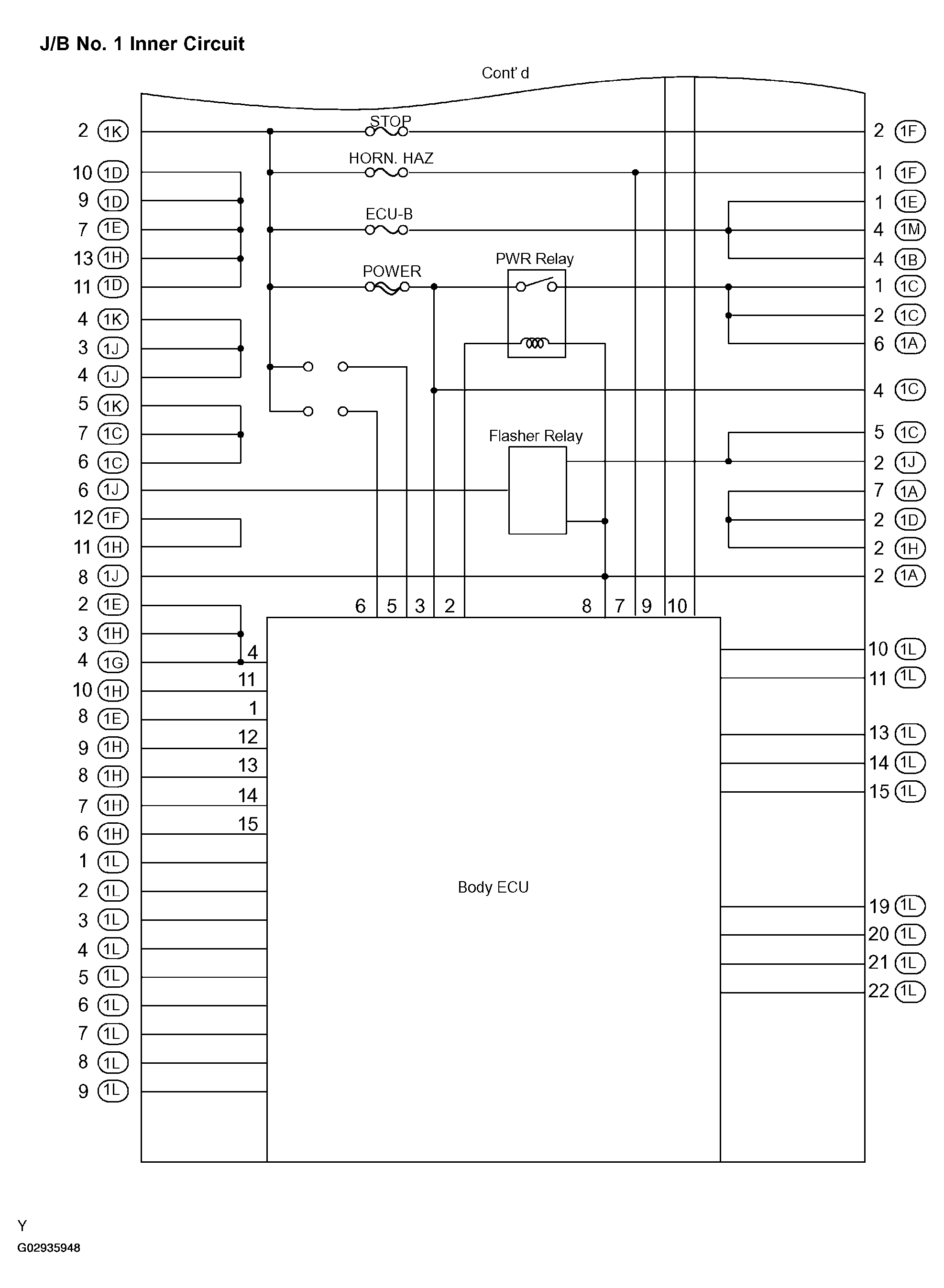

Fig 2: Locating ECU Inner Circuit Terminals (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

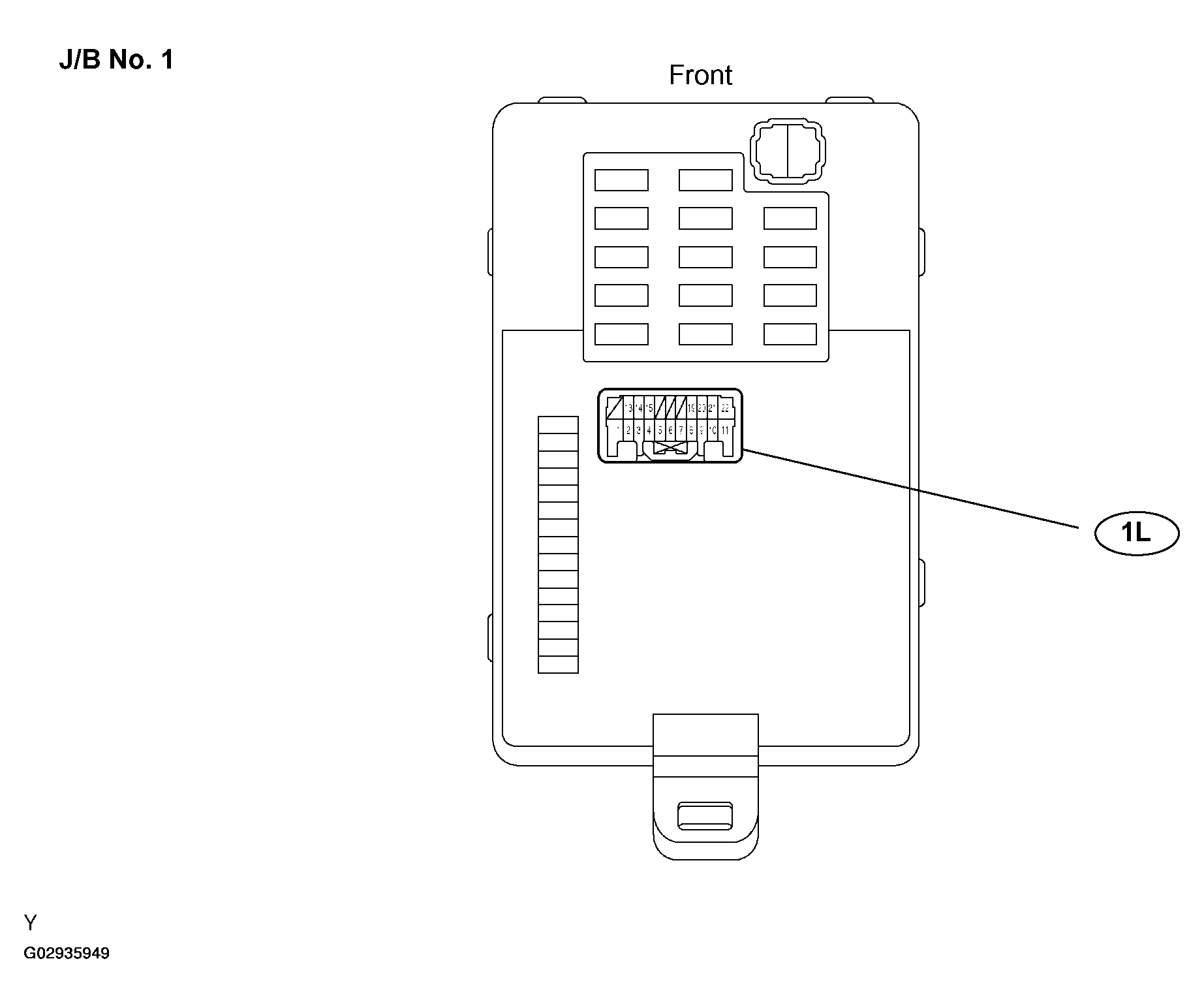

Fig 3: Identifying J/B No. 1 (Front)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

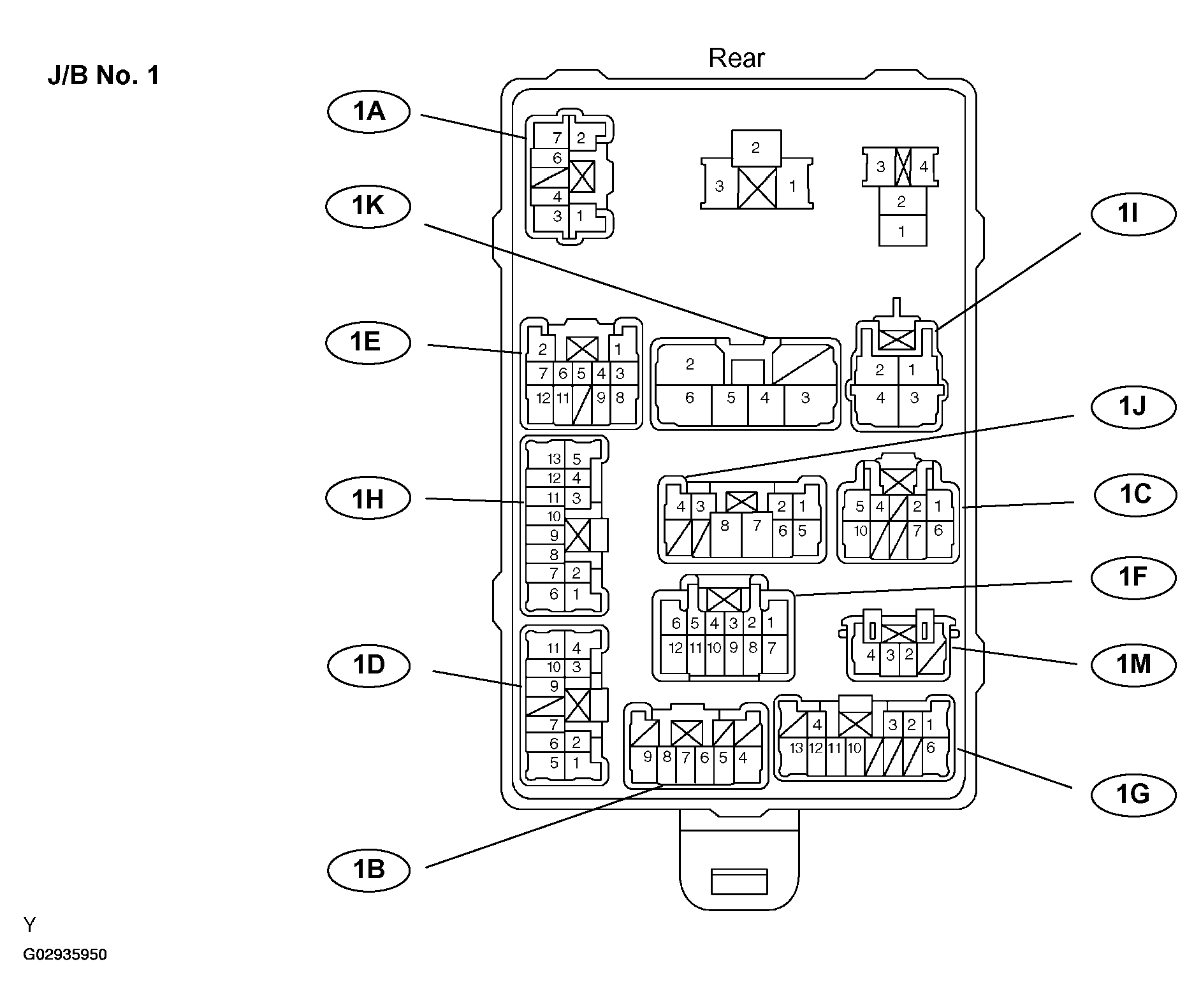

Fig 4: Identifying J/B No. 1 (Rear)

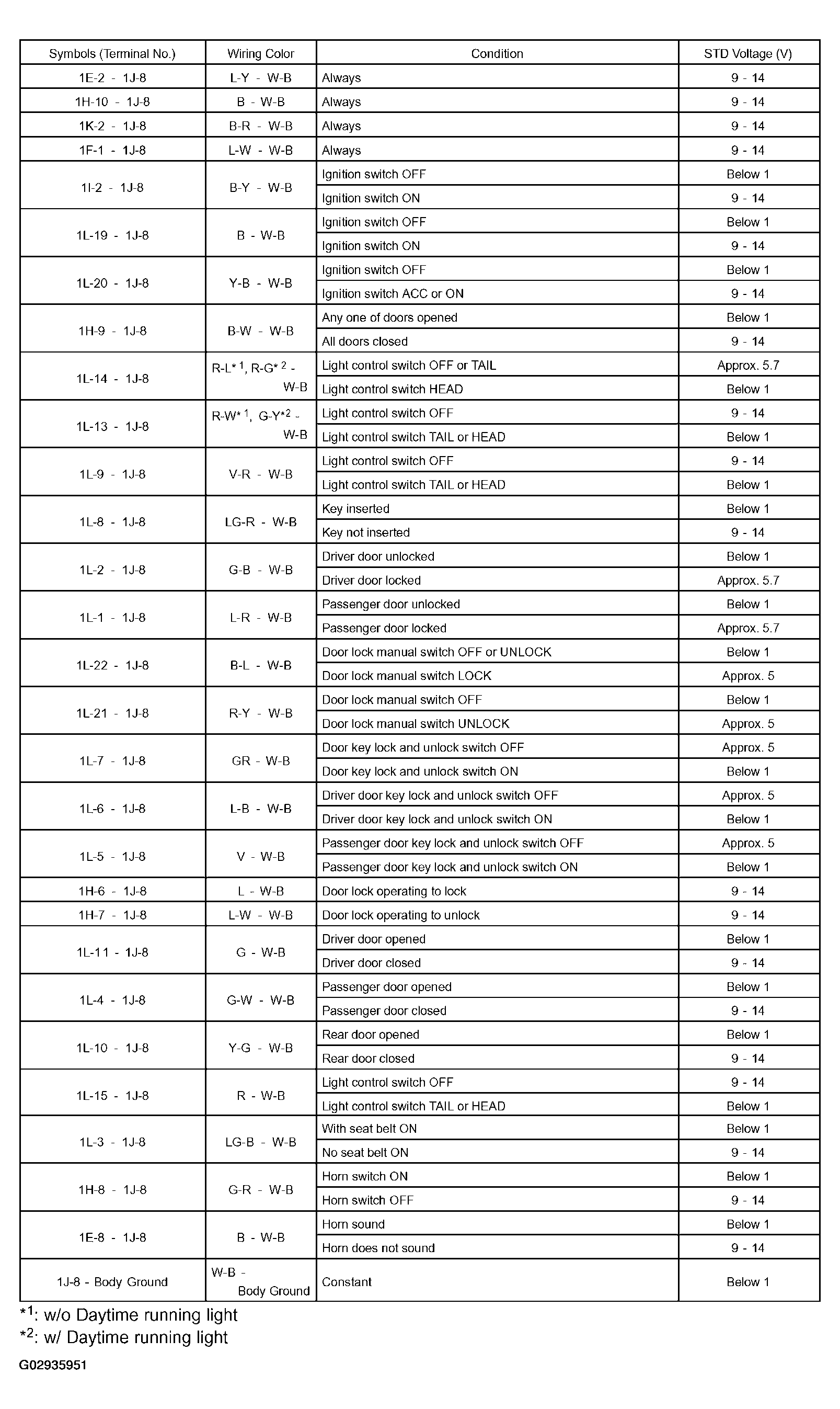

Fig 5: Identifying Terminal Condition & STD Voltage Table
