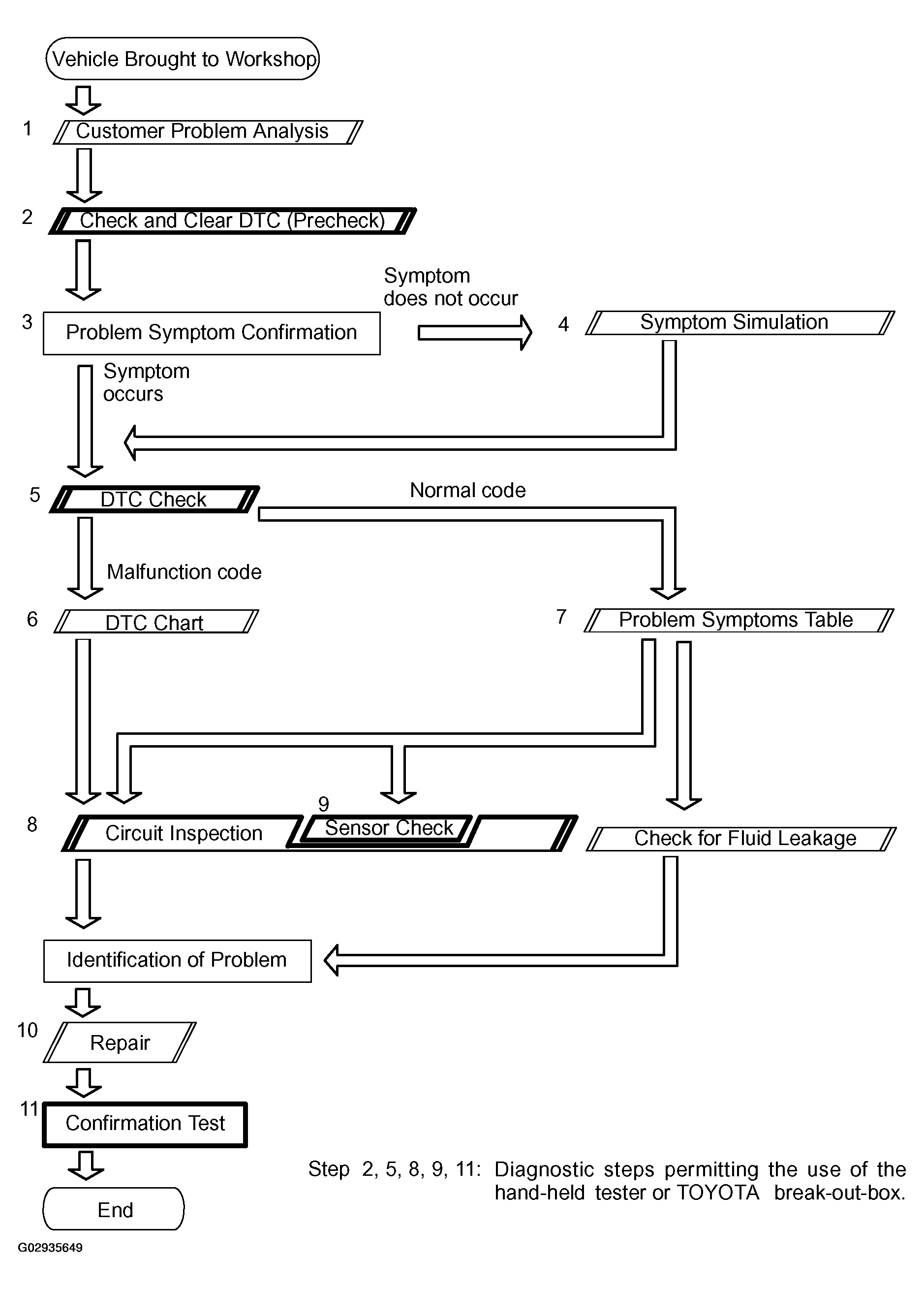

How To Proceed With Troubleshooting
Troubleshooting in accordance with the procedure on the following pages.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fail safe function:
When a failure occurs in the ABS system, the ABS warning light is lit and the ABS operation is prohibited.
