Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00262764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash

G00262765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

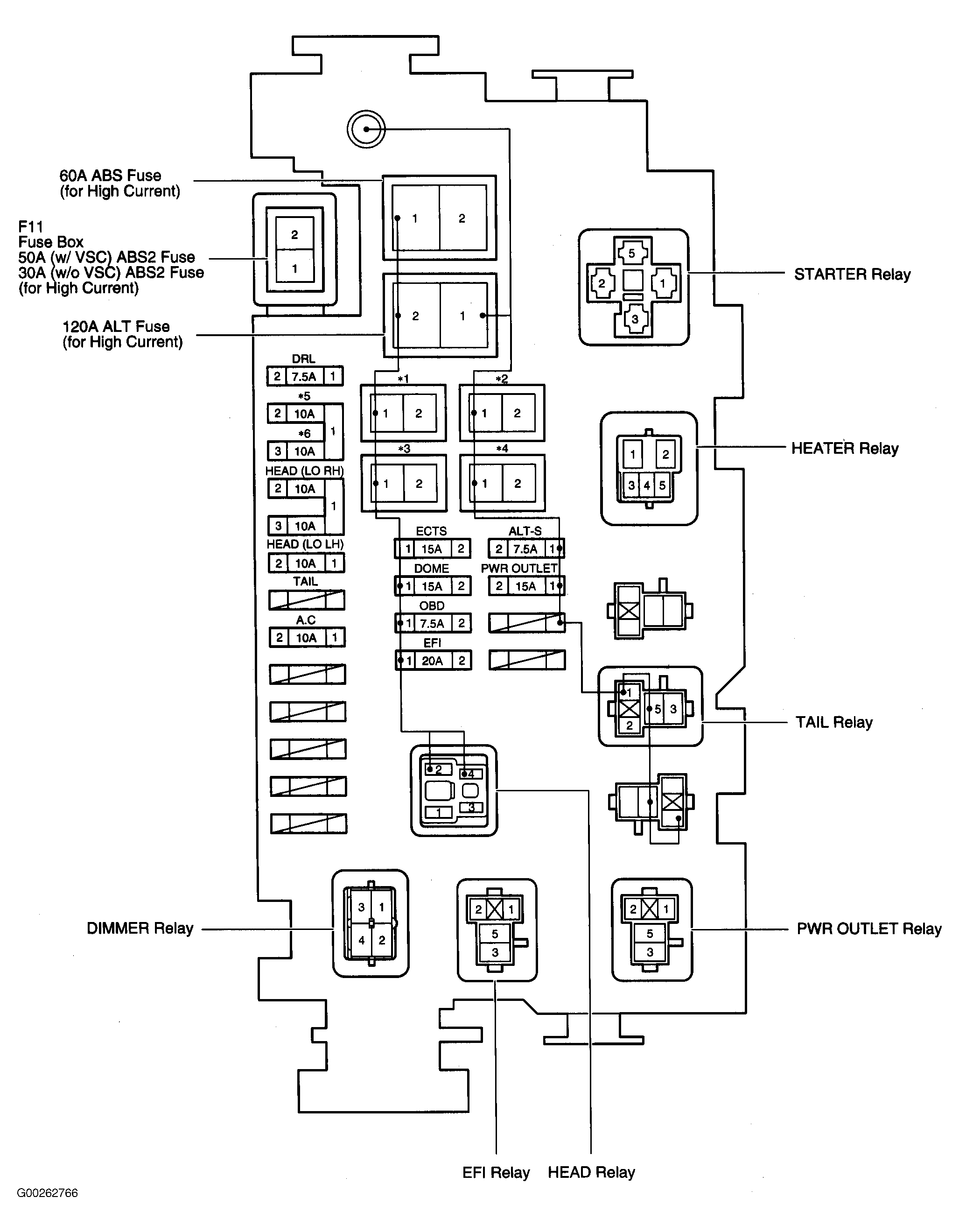

Fig 3: R/B No. 2

G00262766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

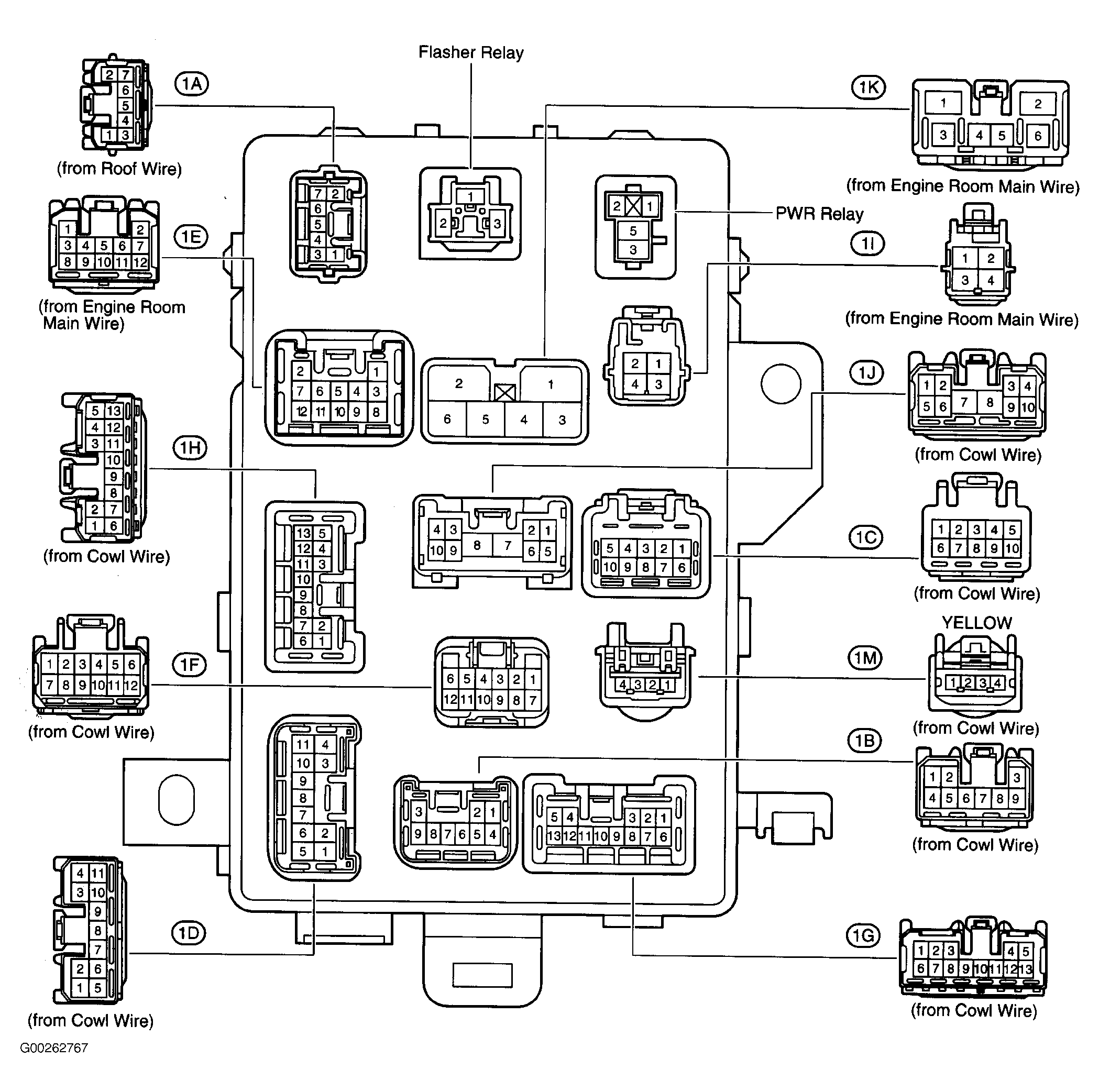

Fig 4: J/B No. 1

G00262767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

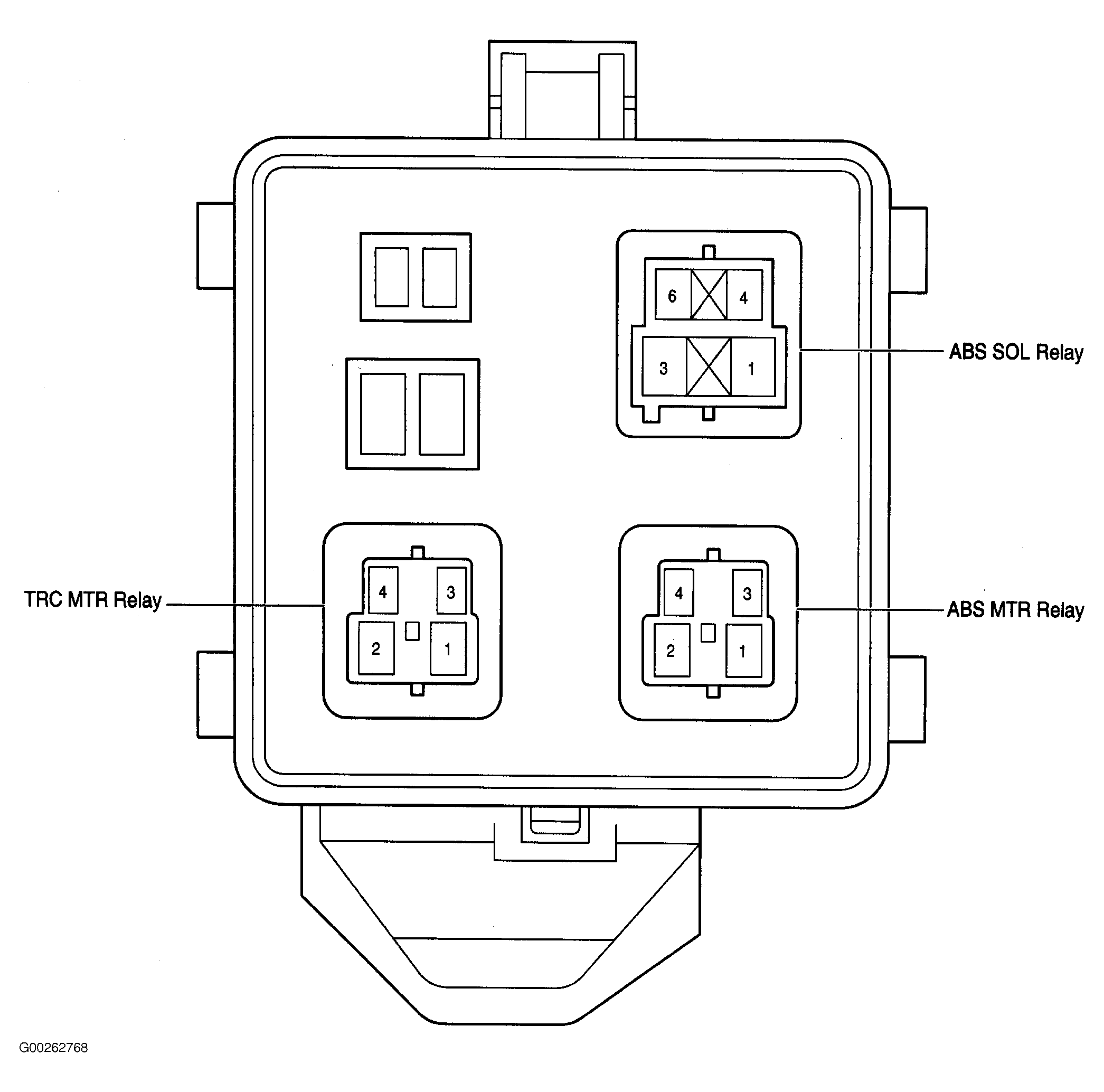

Fig 5: VSC R/B

G00262768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Compartment (3.4L)

G00262769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

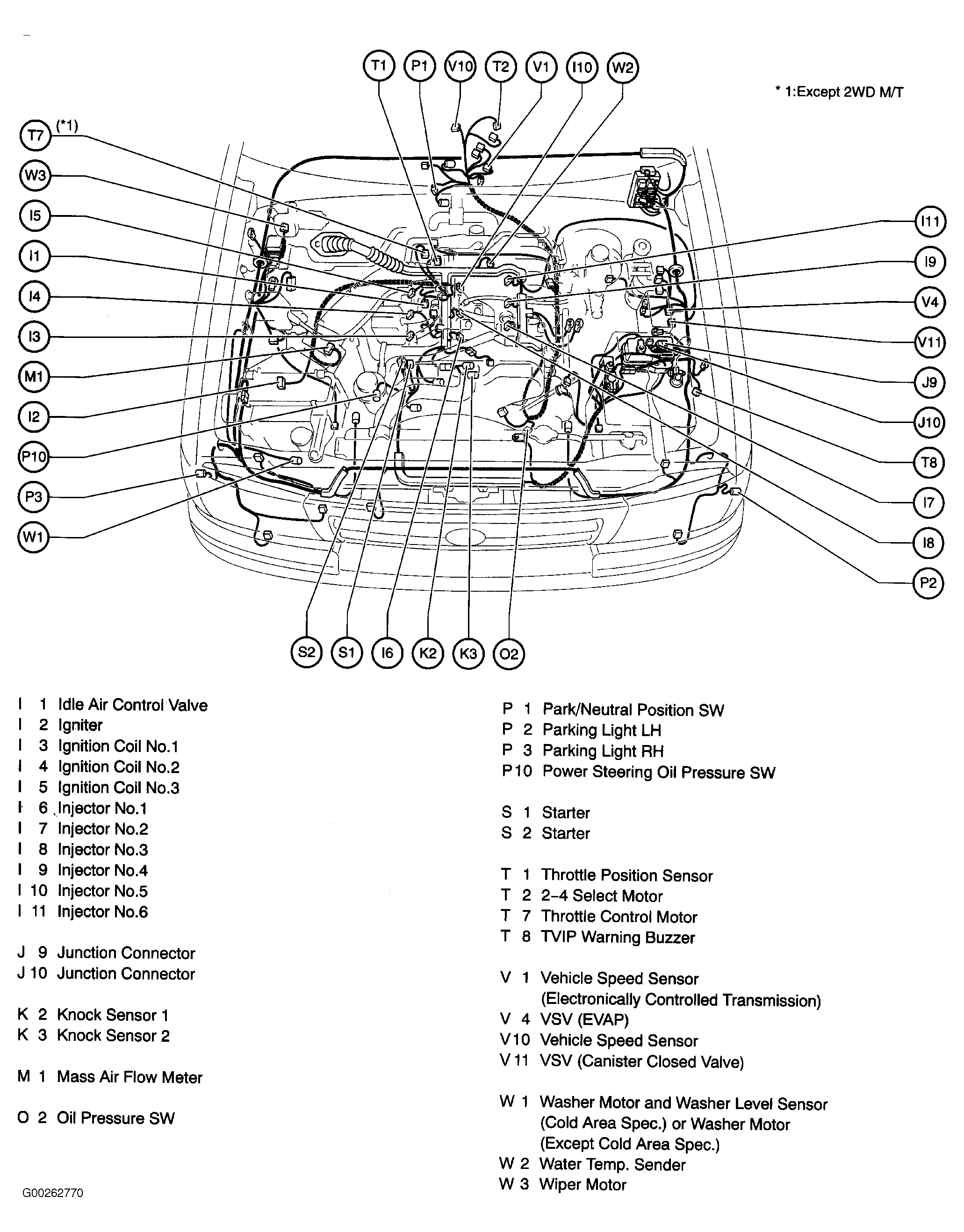

Fig 7: Engine (3.4L)

G00262770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Compartment (2.4L & 2.7L)

G00262771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

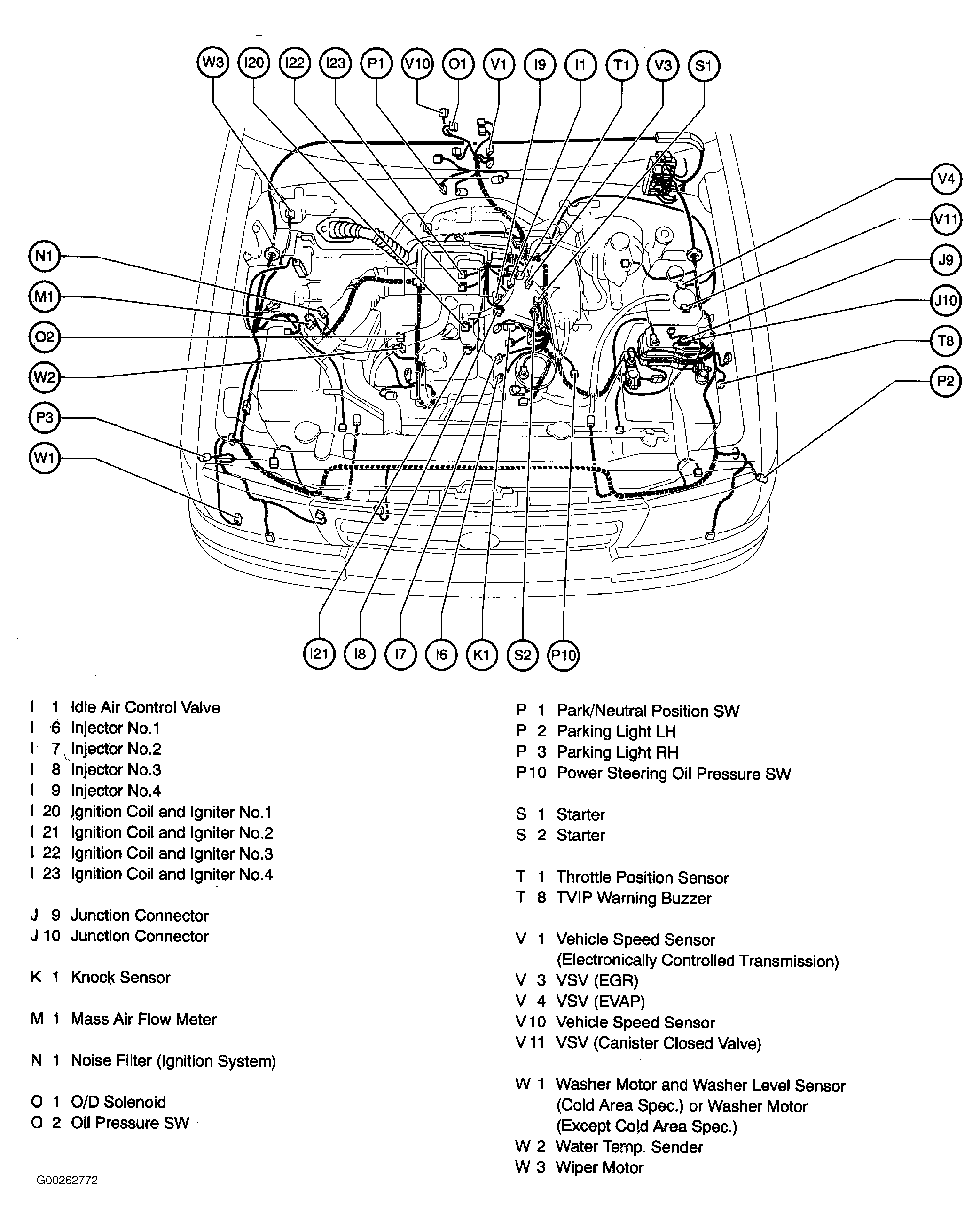

Fig 9: Engine (2.4L & 2.7L)

G00262772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

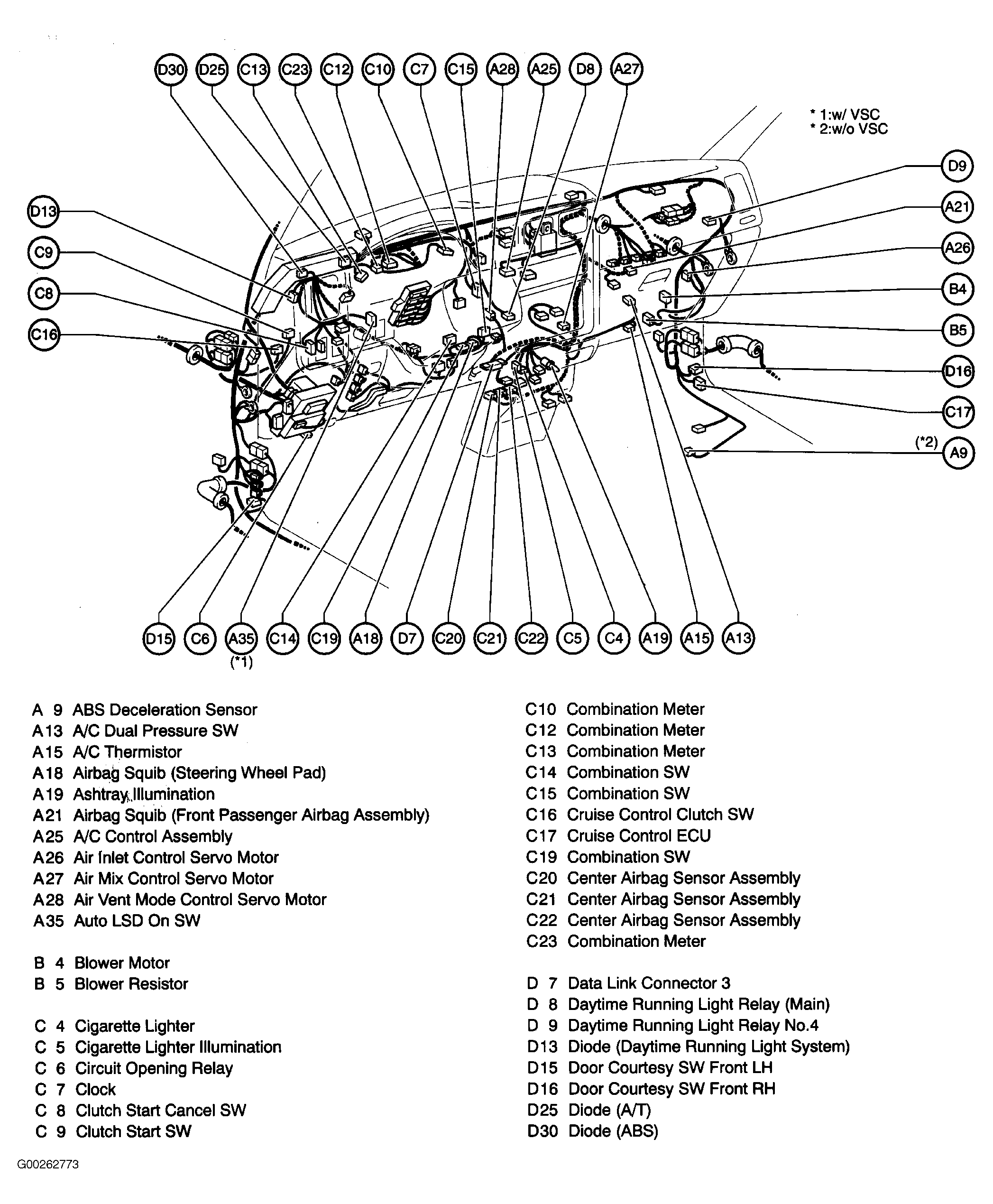

Fig 10: Dash

G00262773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

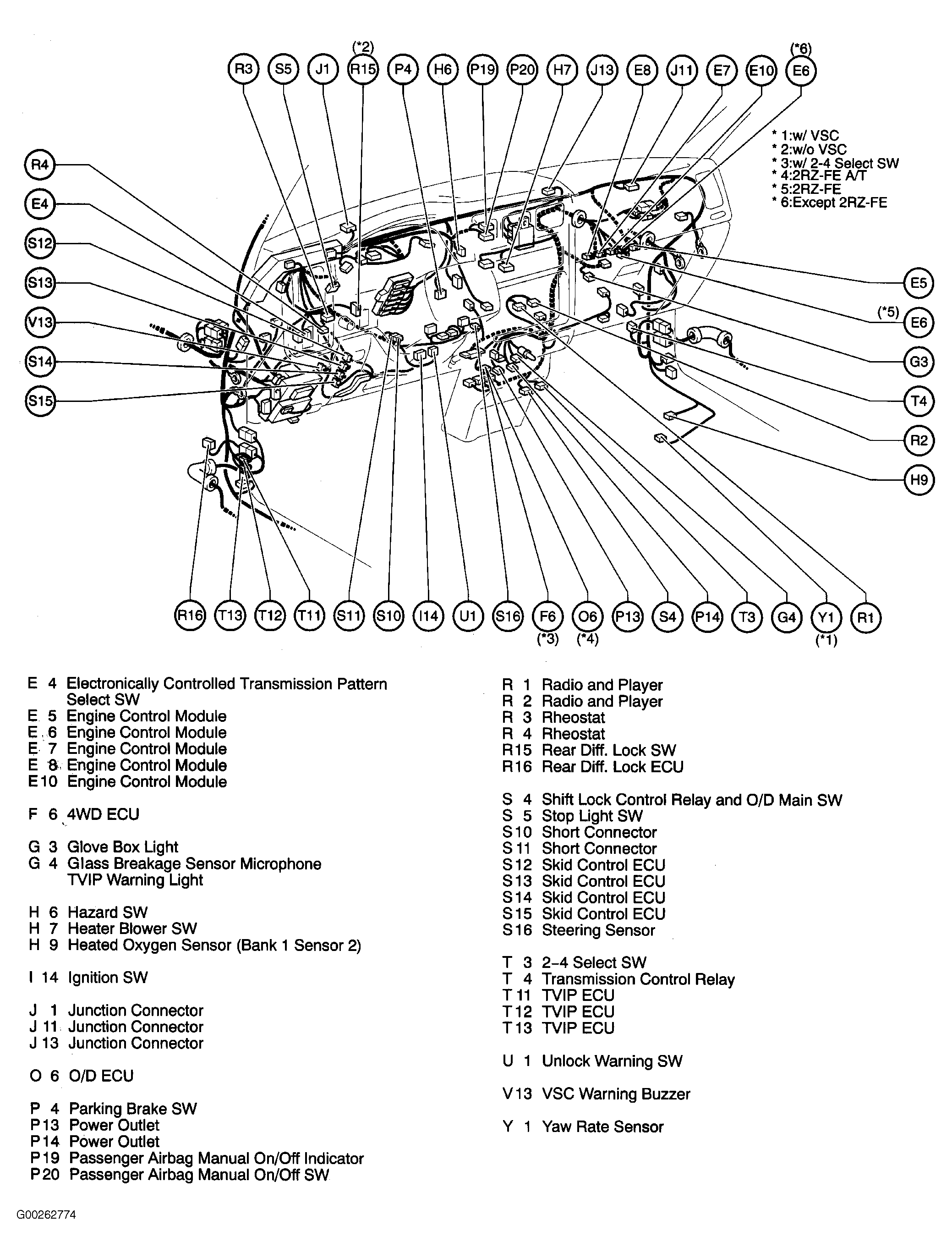

Fig 11: Dash

G00262774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

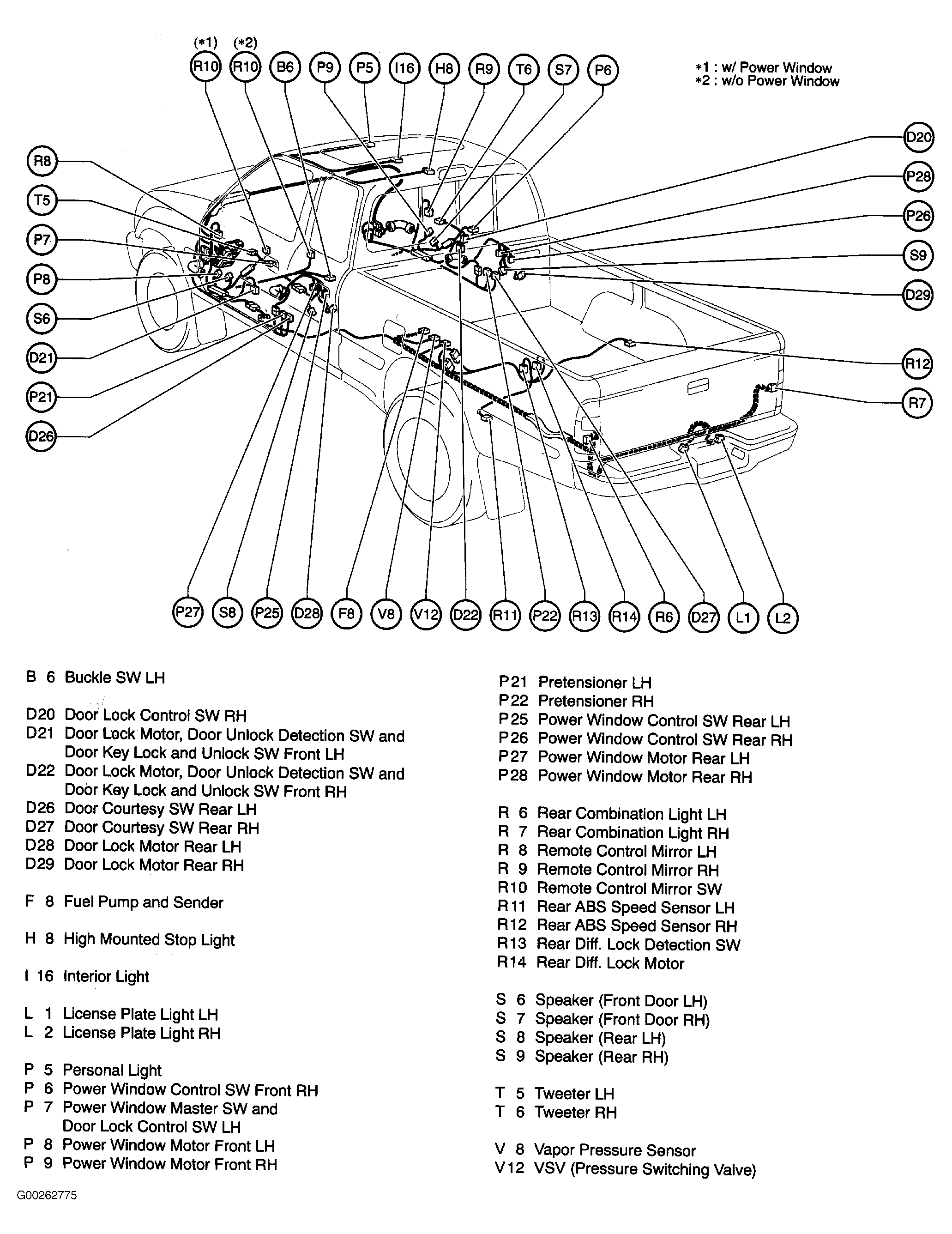

Fig 12: Vehicle Overview (Double Cab)

G00262775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

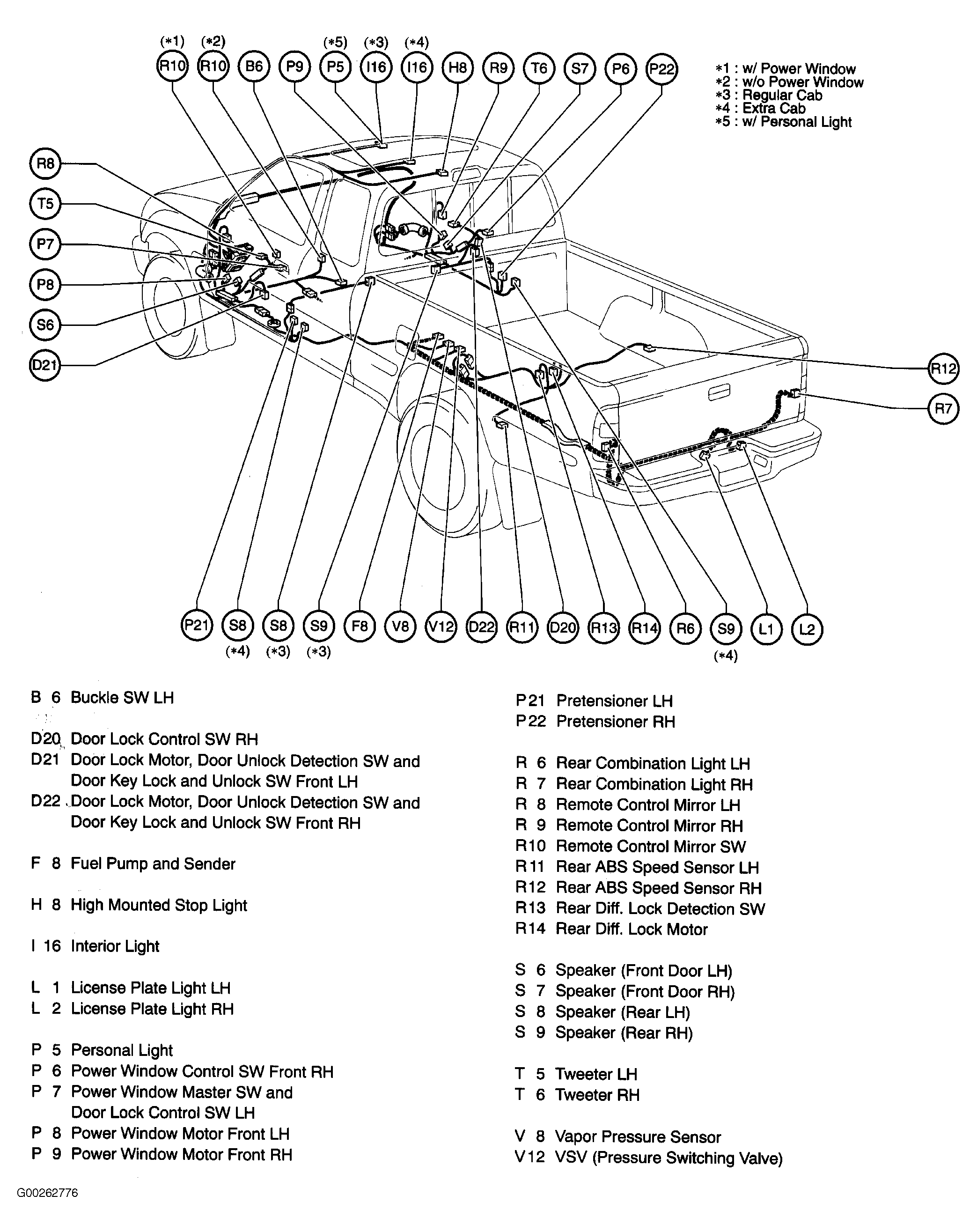

Fig 13: Vehicle Overview (Except Double Cab)

G00262776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

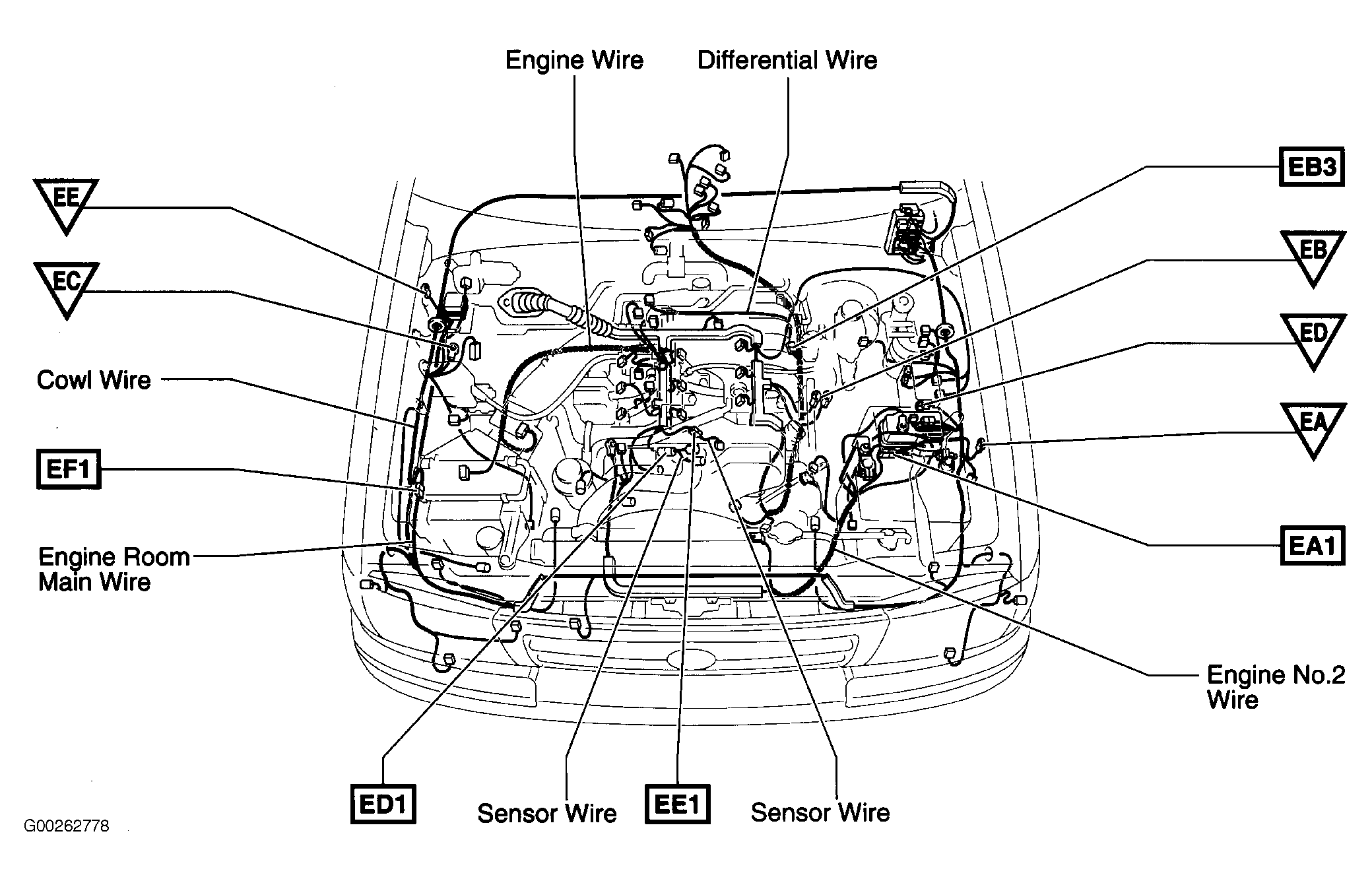

Fig 14: Engine Compartment (3.4L)

G00262778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

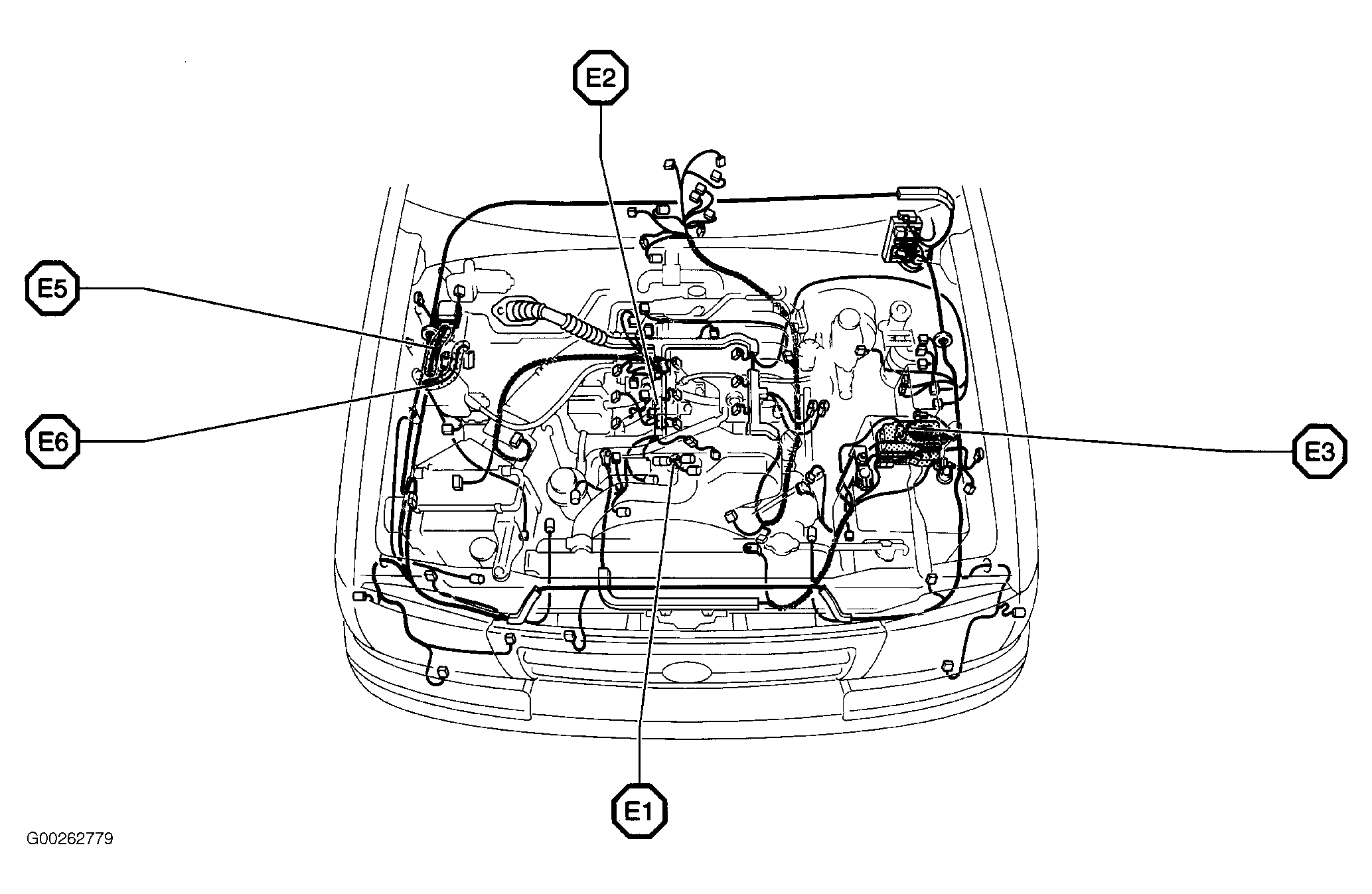

Fig 15: Engine Compartment (3.4L)

G00262779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

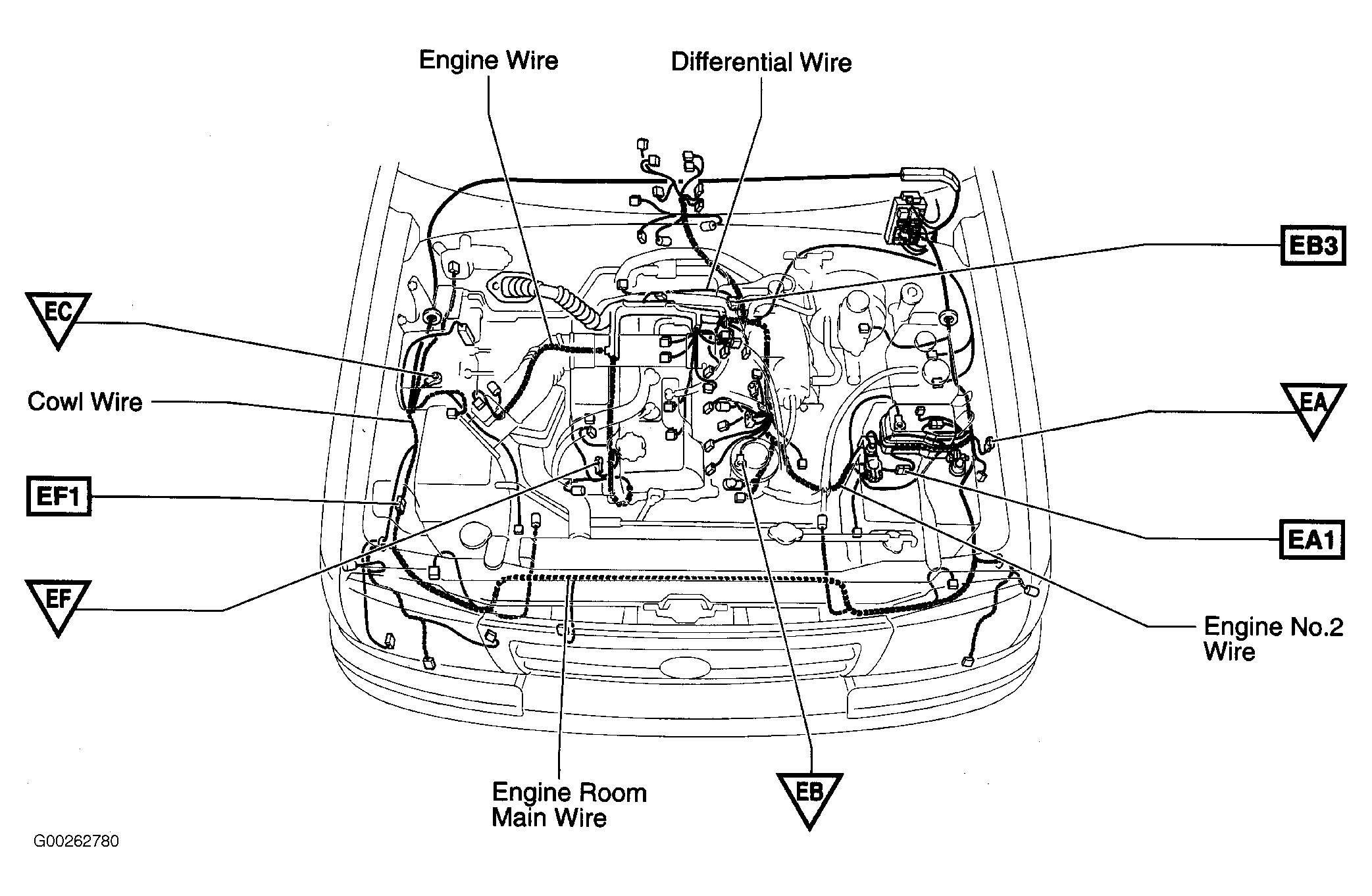

Fig 16: Engine Compartment (2.4L & 2.7L)

G00262780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

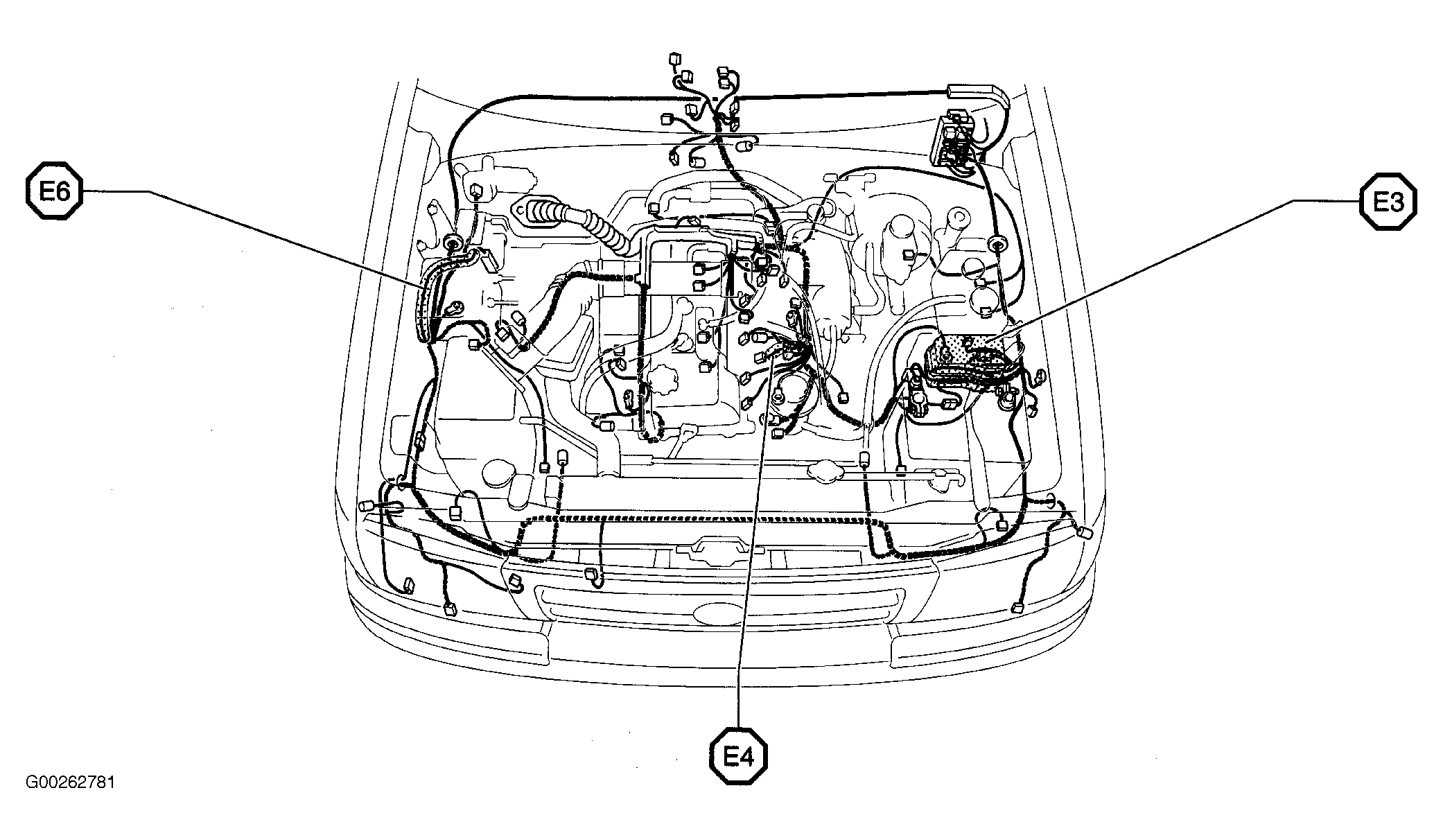

Fig 17: Engine Compartment (2.4L & 2.7L)

G00262781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

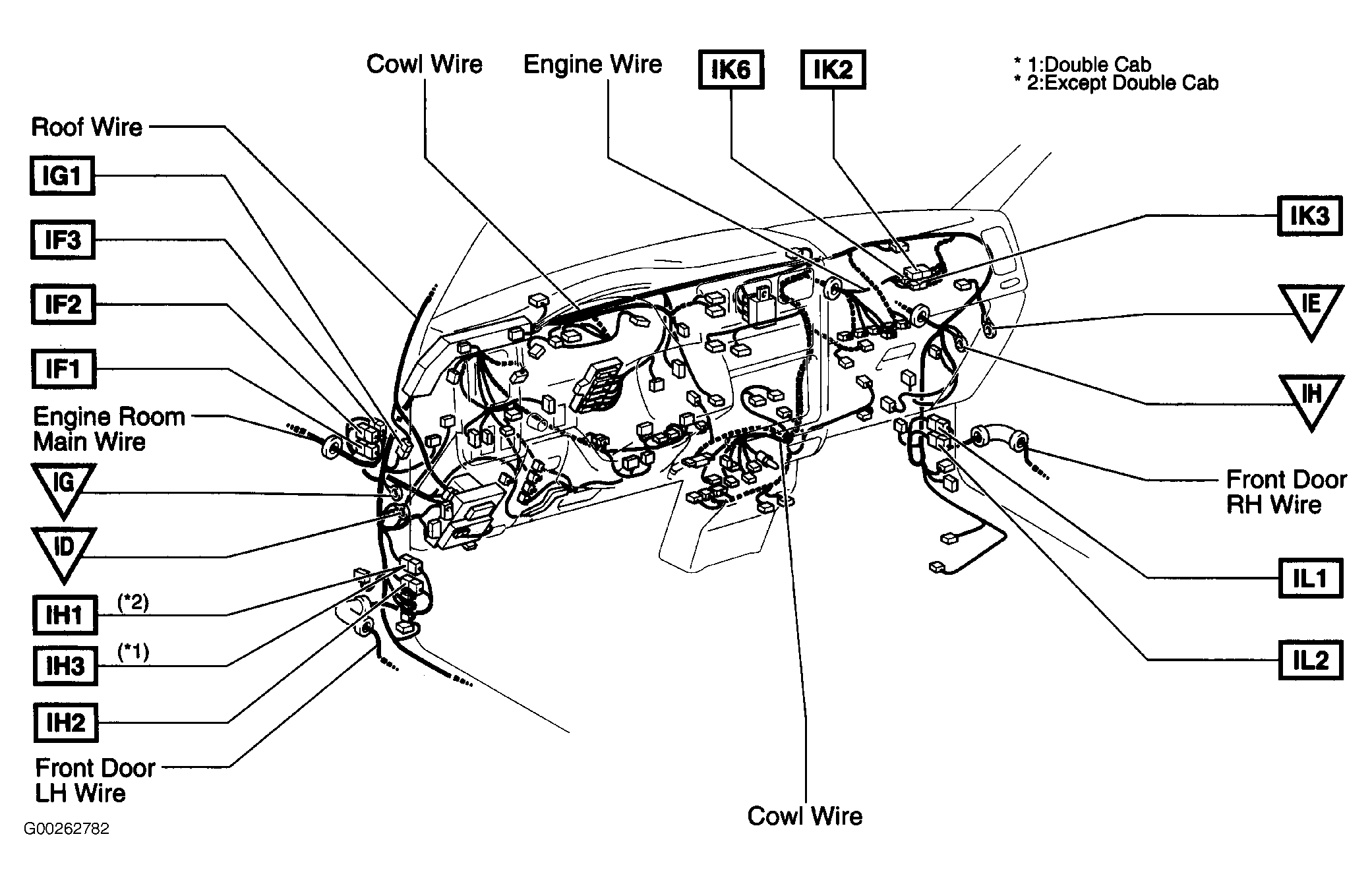

Fig 18: Dash

G00262782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

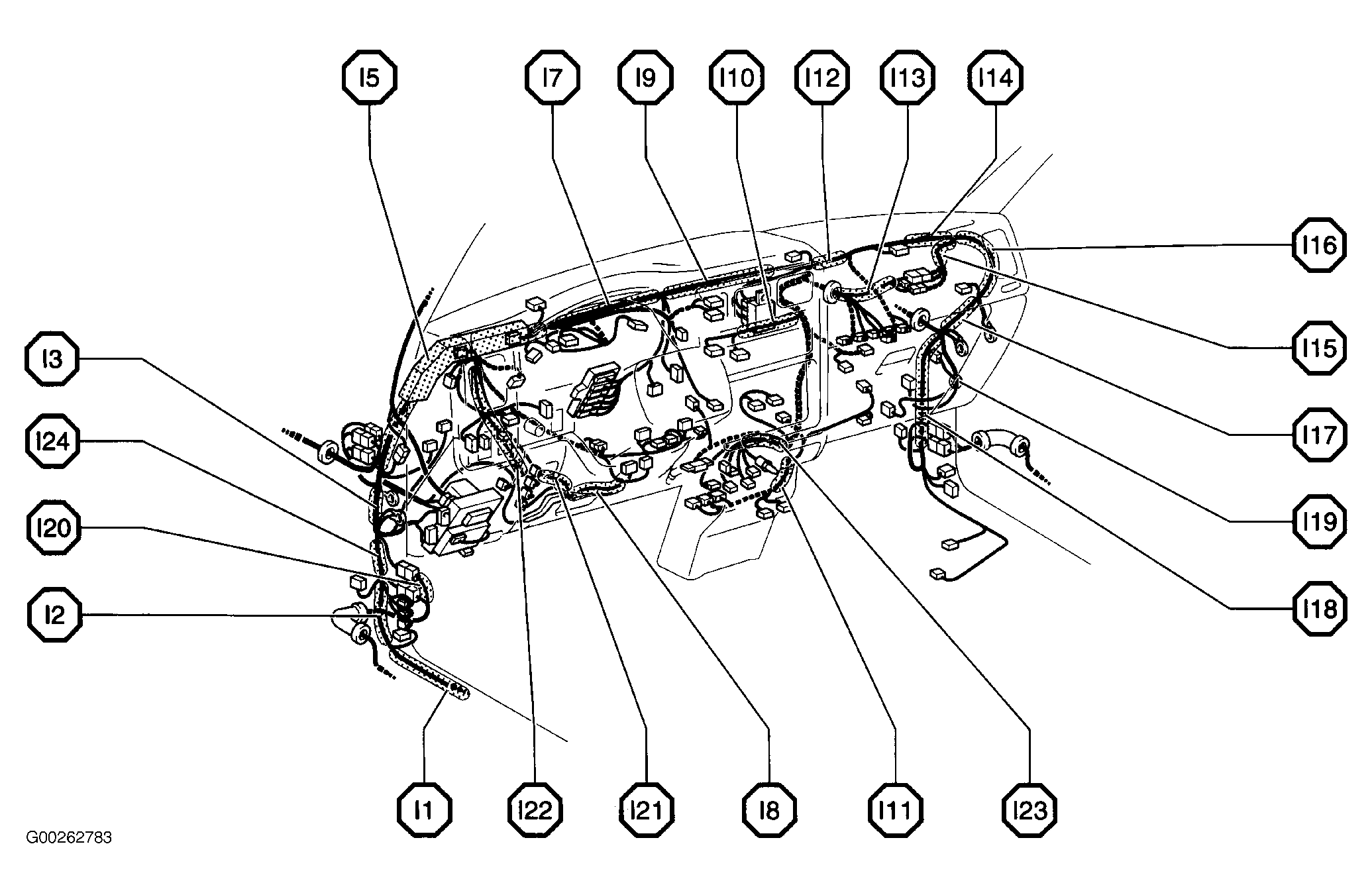

Fig 19: Dash

G00262783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

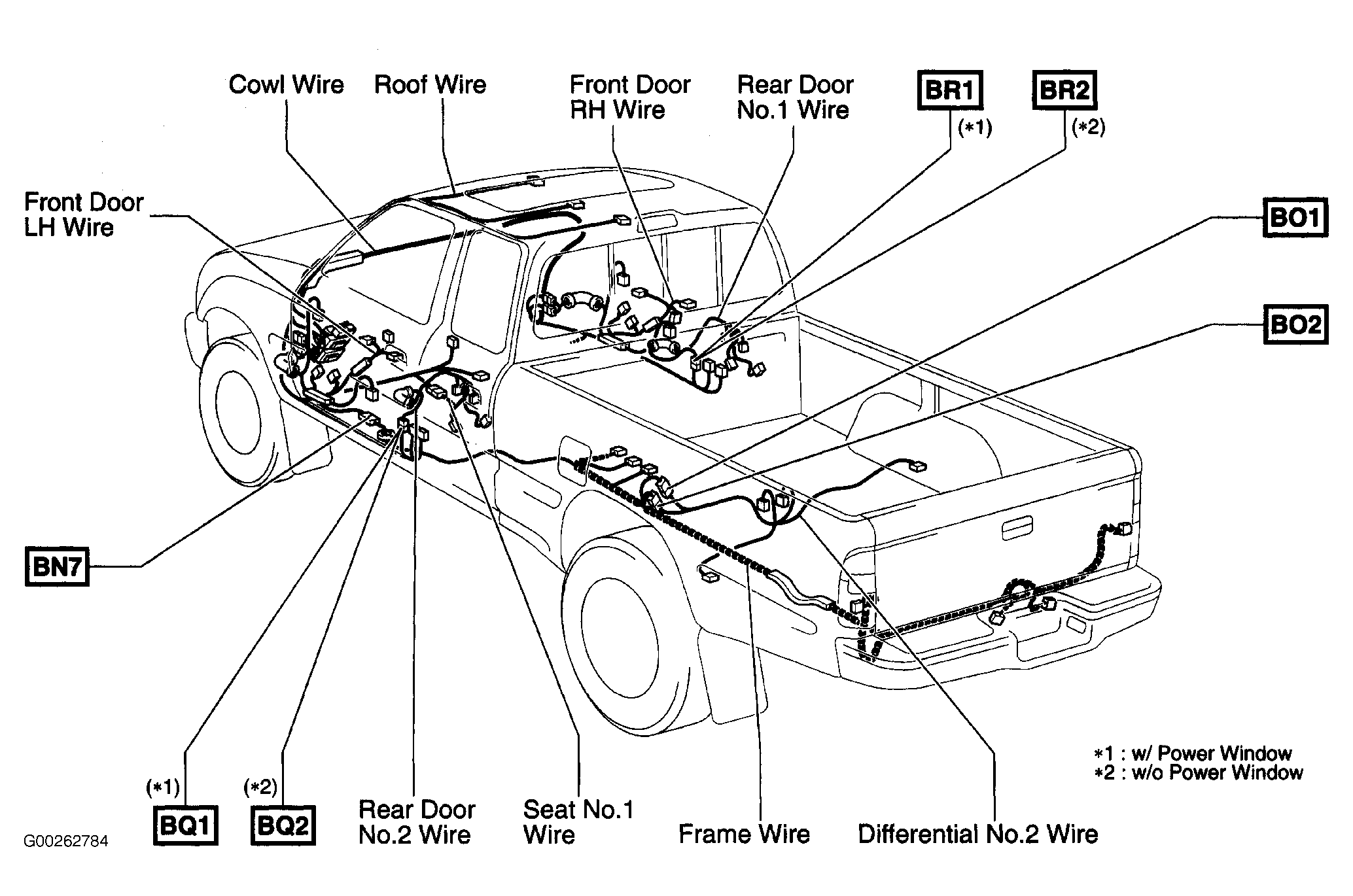

Fig 20: Vehicle Overview (Double Cab)

G00262784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

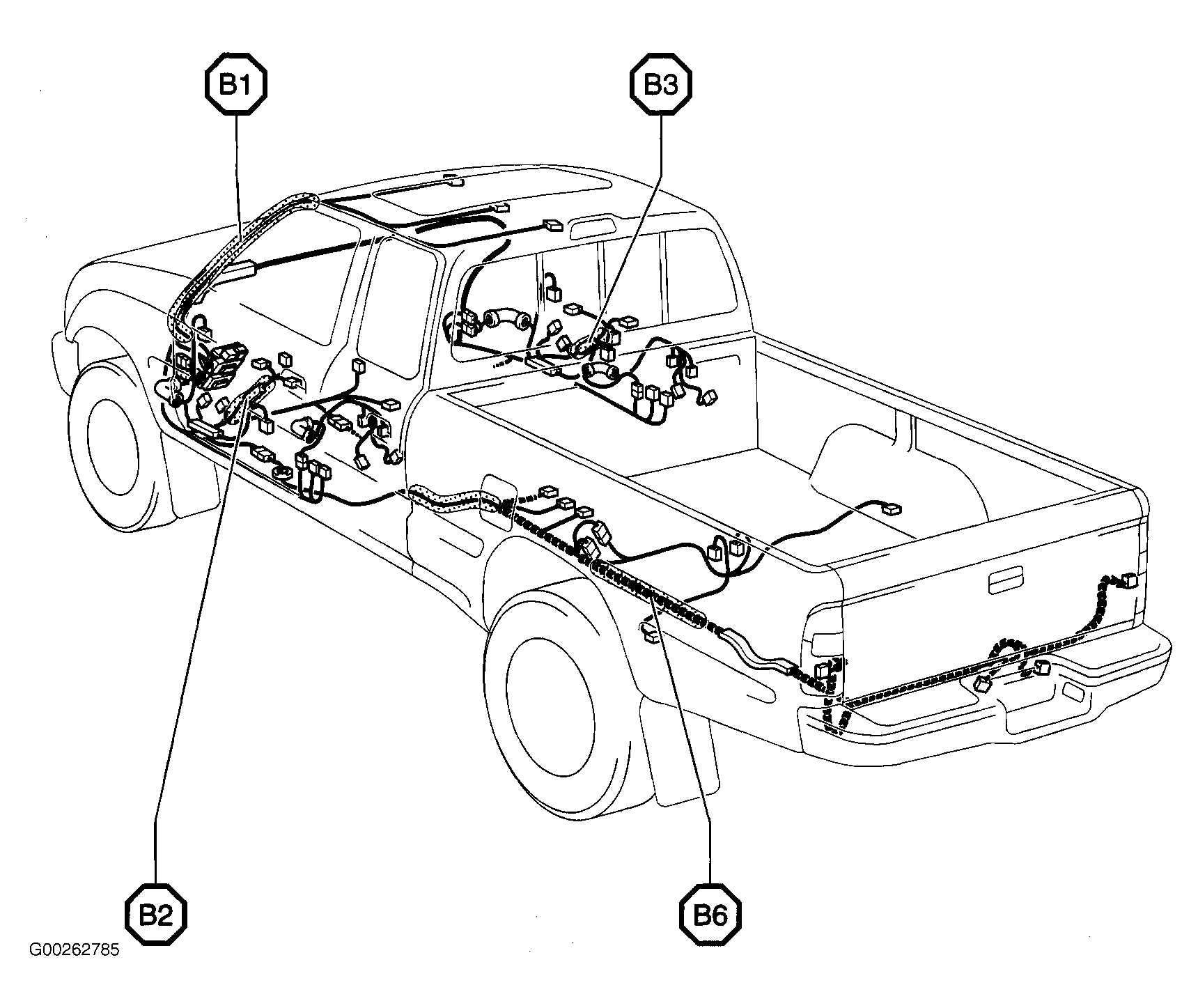

Fig 21: Vehicle Overview (Double Cab)

G00262785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

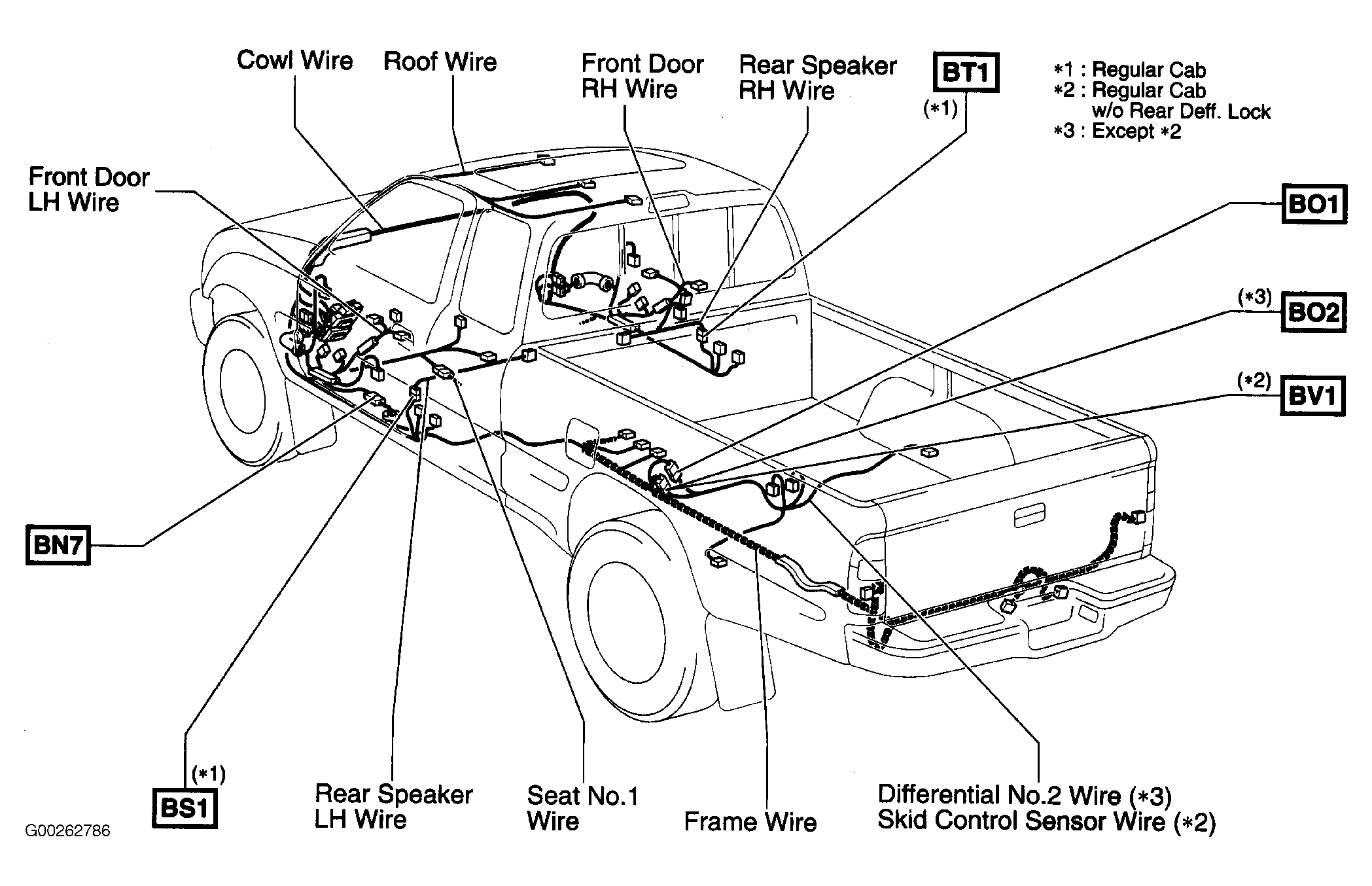

Fig 22: Vehicle Overview (Except Double Cab)

G00262786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

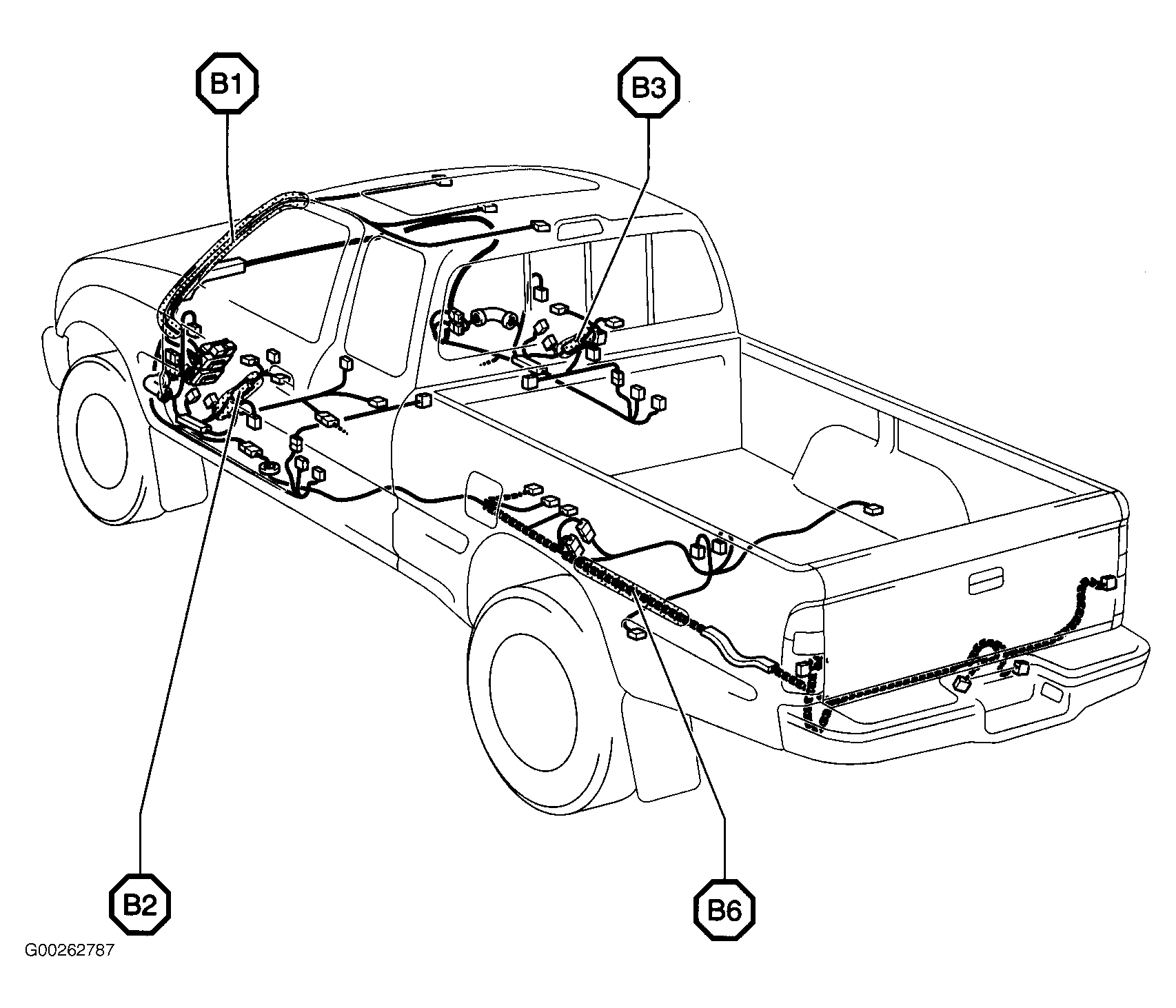

Fig 23: Vehicle Overview (Except Double Cab)

G00262787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

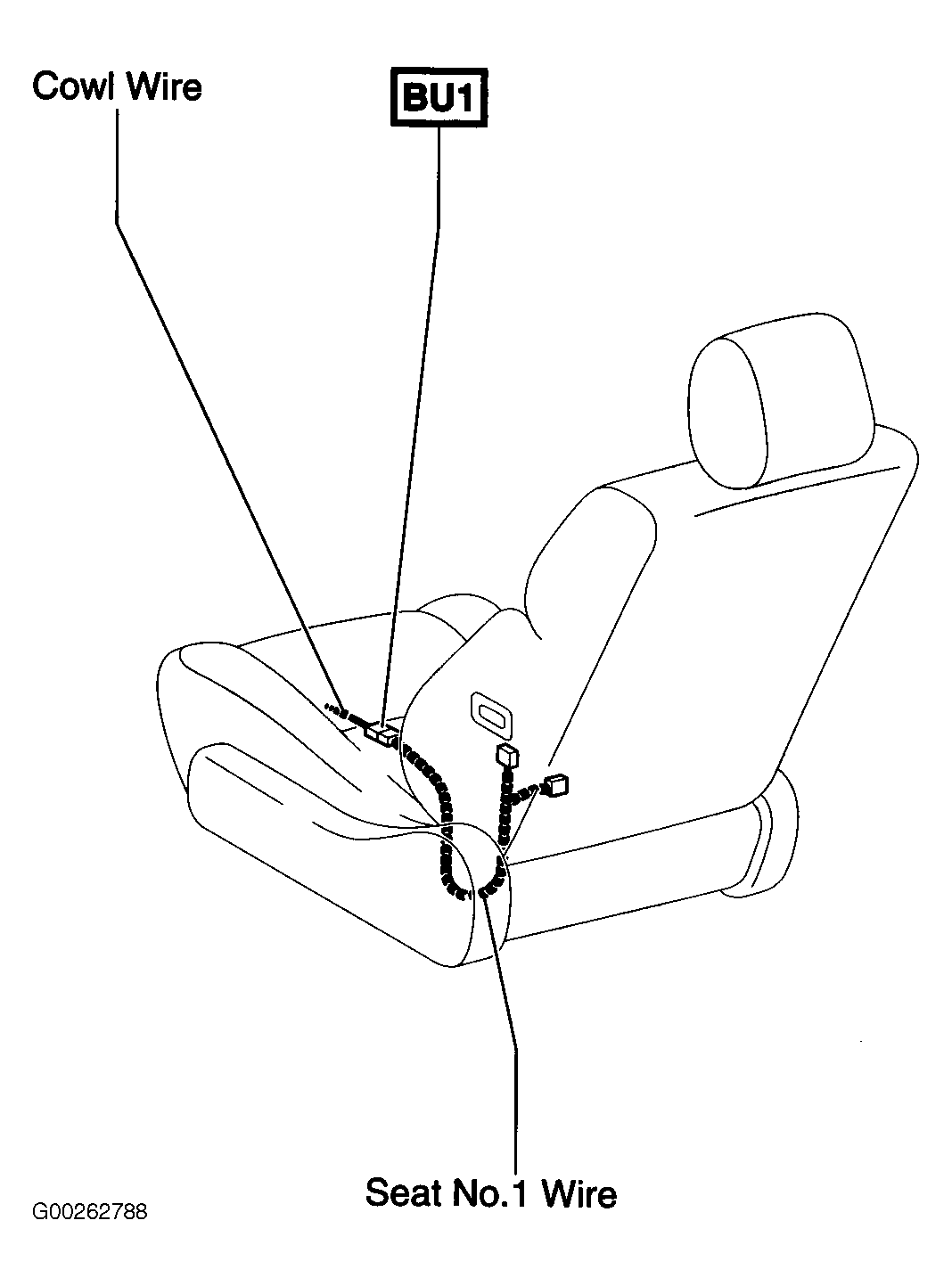

Fig 24: Seat

G00262788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
