Combination Meter: Circuit

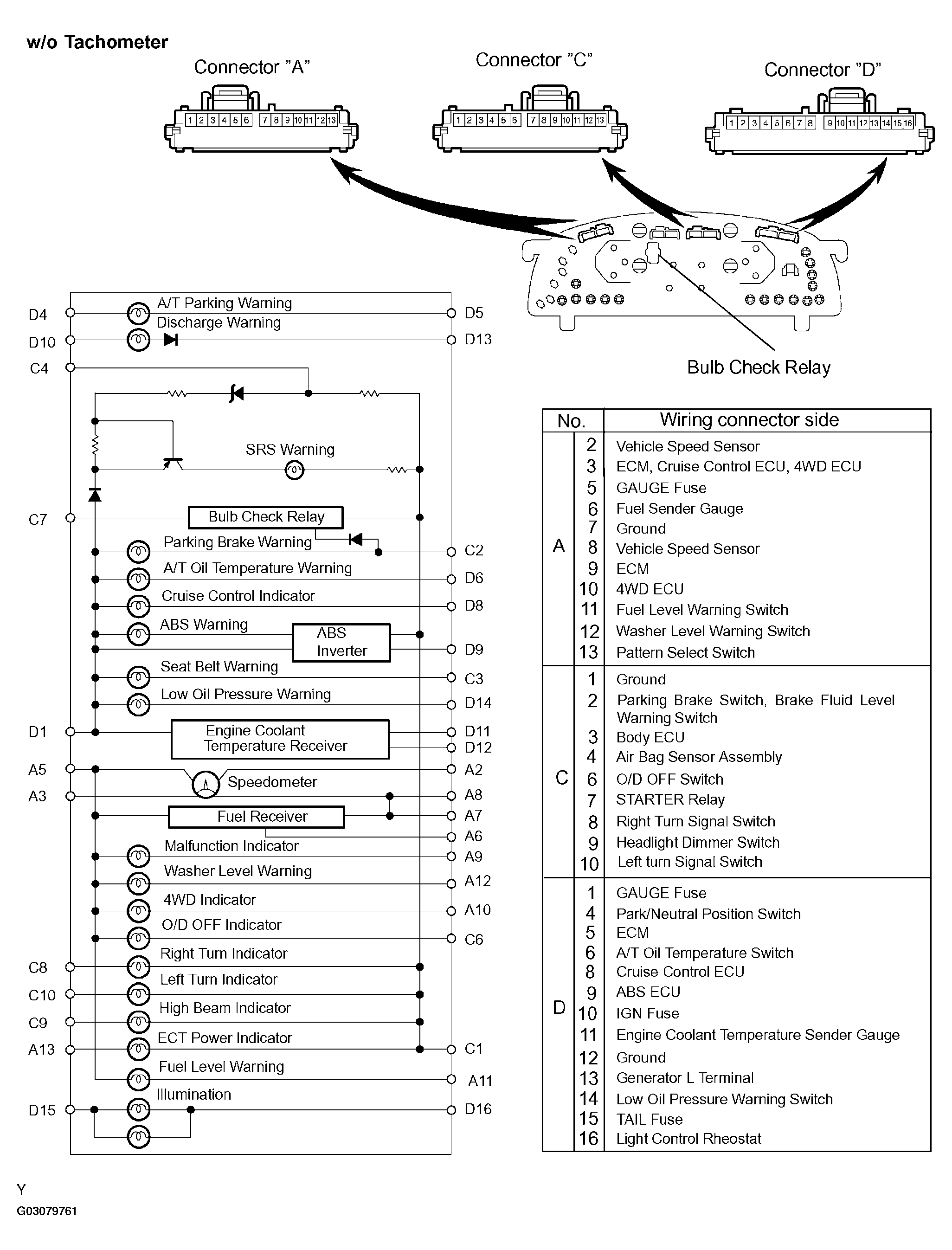

Fig 1: Combination Meter Connector Terminals & Specifications (w/o Tachometer)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

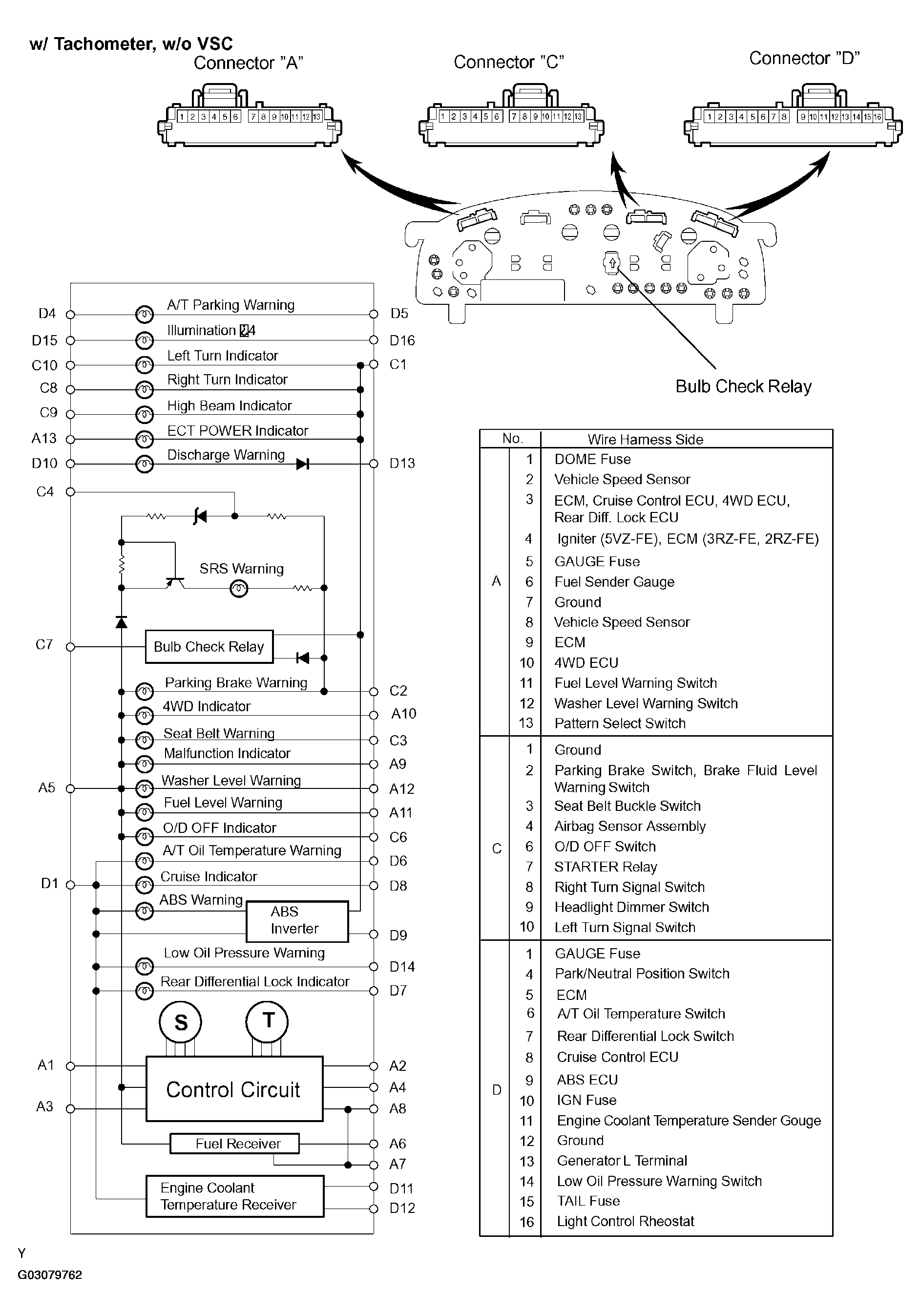

Fig 2: Combination Meter Connector Terminals & Specifications (W/Tachometer, W/O VSC)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

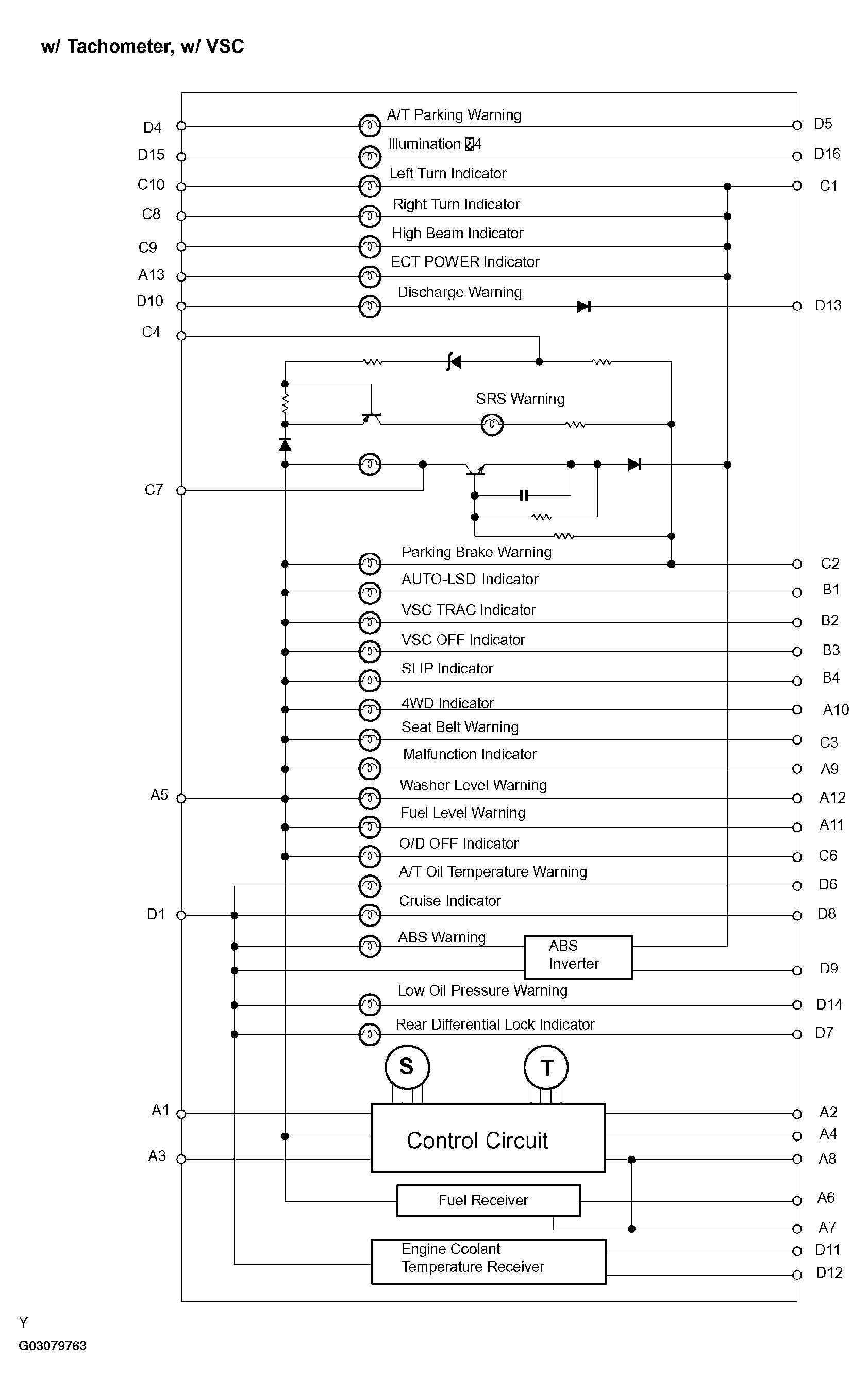

Fig 3: Combination Meter Connector Terminals & Specifications (w/Tachometer, W/VSC) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

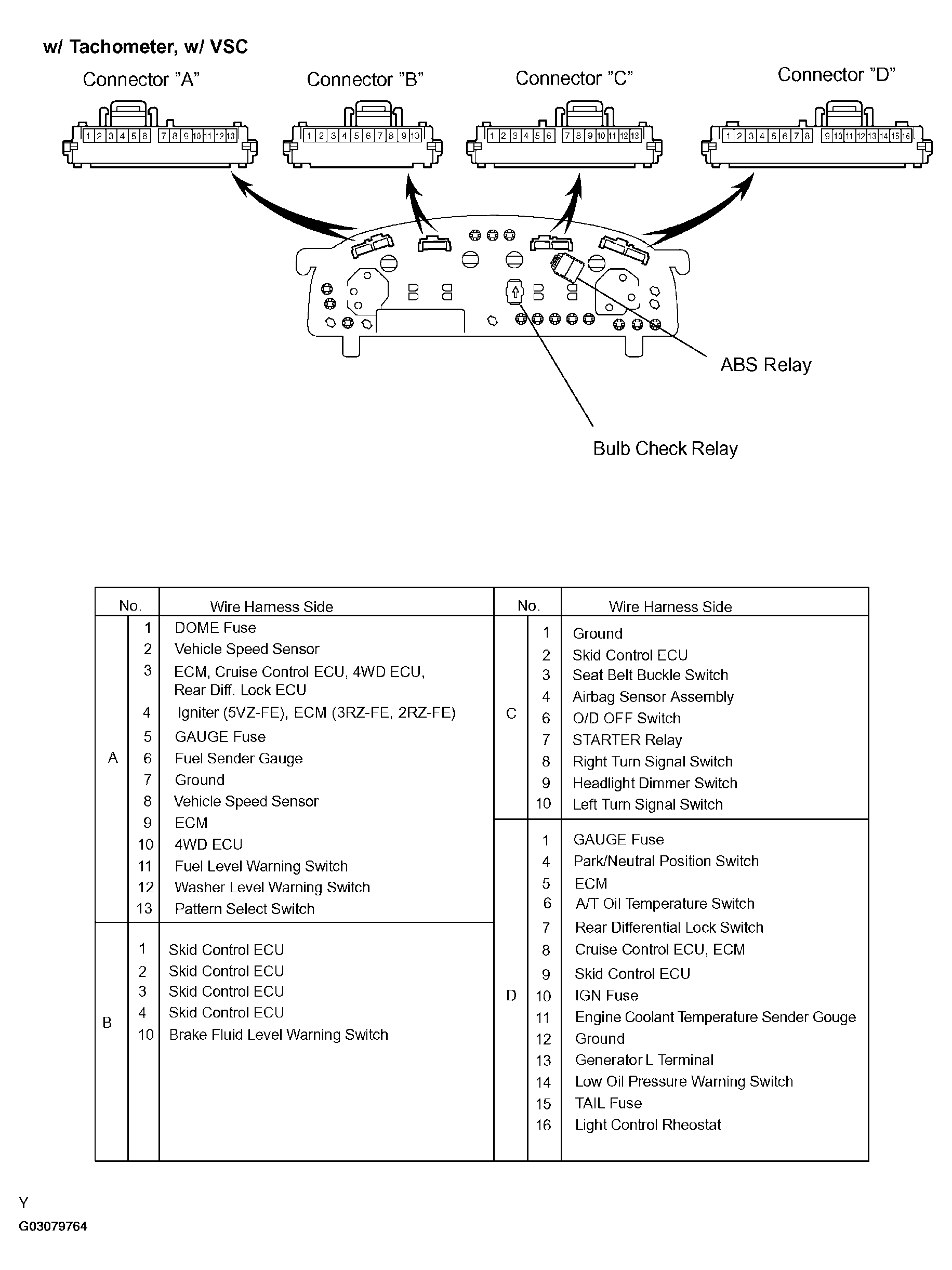

Fig 4: Combination Meter Connector Terminals & Specifications (w/Tachometer, W/VSC) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
