Engine Coolant Temperature (ECT) Sensor: Components

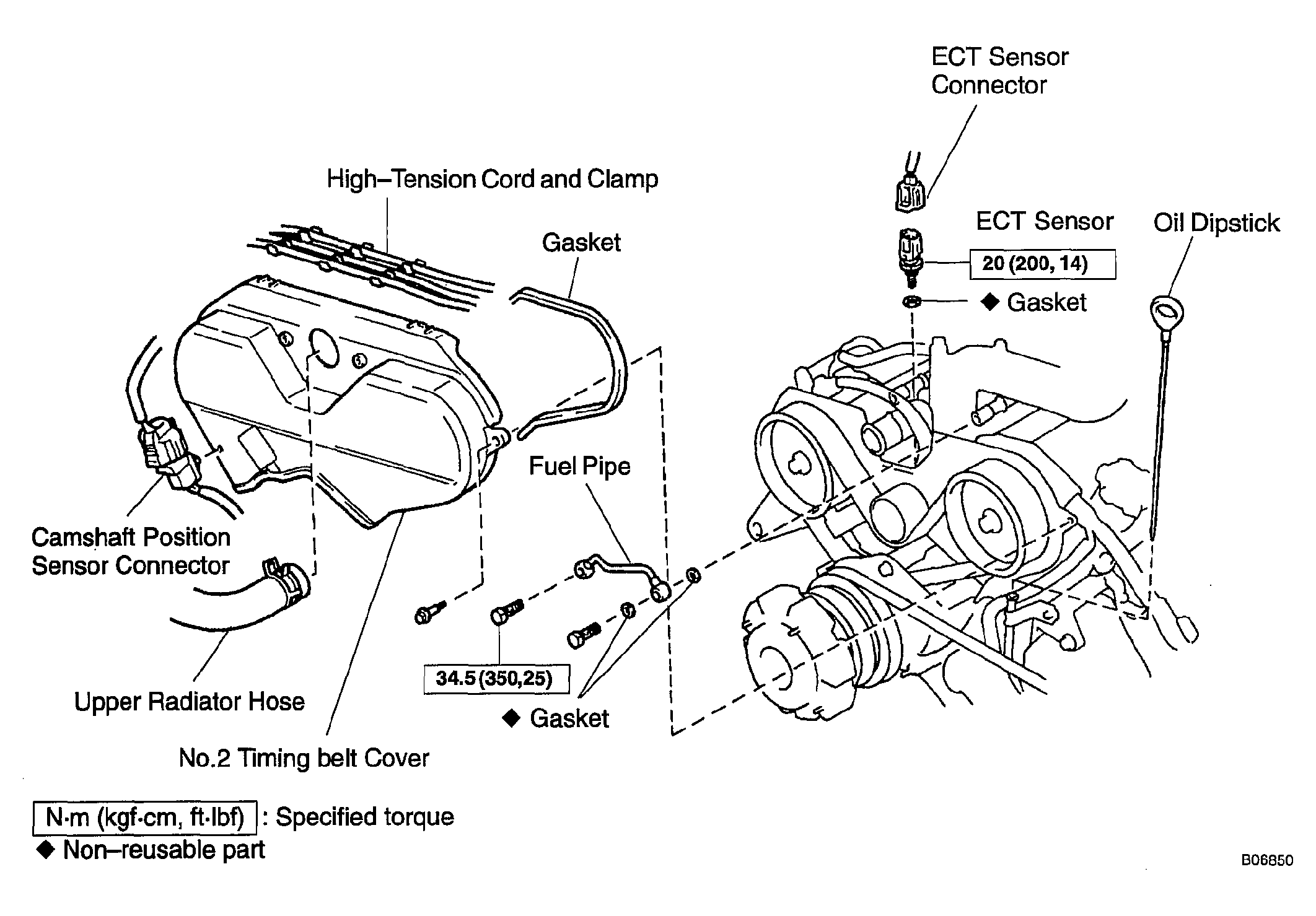

Fig 1: Exploded View Of Engine Coolant Temperature (ECT) Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
