Fuel Pump: Installation

  1. INSTALL FUEL PUMP FILTER TO FUEL PUMP

    Install the pump filter with a new clip.

  2. INSTALL FUEL PUMP TO FUEL PUMP BRACKET
    1. Install the rubber cushion to the fuel pump.
    2. Connect the fuel hose to the outlet port of the fuel pump.
    3. Install the fuel pump by pushing the lower side of the fuel pump.
    4. Install the lead wire to the fuel pump and connector of the fuel suction plate.
    Fig 1: Installing Fuel Pump To Fuel Pump Bracket
    G04241302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY TO FUEL TANK
    1. Install a new gasket to the fuel suction plate.
    2. Insert the fuel pump and sender gauge assembly into the fuel tank.
    3. Install the fuel pump and sender gauge to the fuel tank with the 8 bolts.

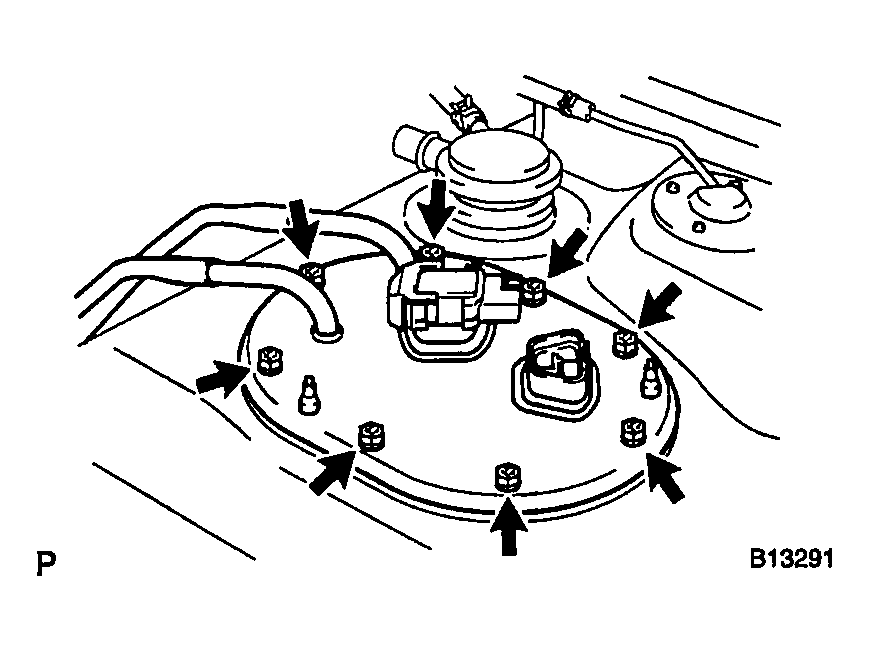

      Fig 2: Installing Fuel Pump & Sender Gauge With Bolts
      G04241303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 3.5 N.m (35 kgf.cm, 31 in.lbf)

  4. CONNECT FUEL MAIN TUBE AND RETURN TUBE TO FUEL TANK
  5. CHECK FOR FUEL LEAKS (See  PRECAUTION   )
  6. INSTALL FUEL TANK (See  FUEL TANK AND LINE   )
