Knock Sensor: Components

Fig 1: Exploded View Of Knock Sensor Components (1 Of 2)
G04241396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

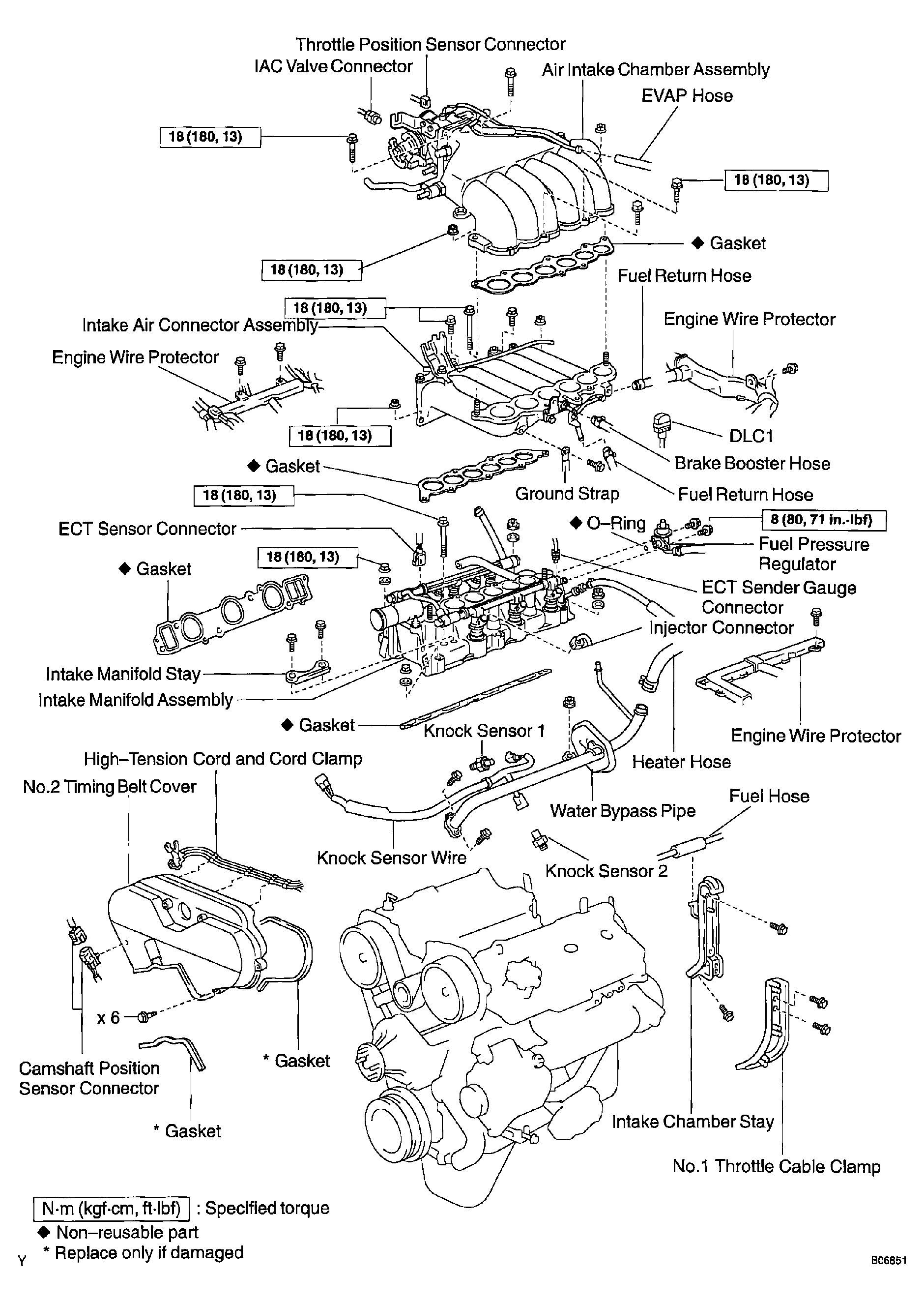

Fig 2: Exploded View Of Knock Sensor Components (2 Of 2)
G04241397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
