Home › Toyota › 2004 › Tacoma Base, 4D Pickup › Repair and Diagnosis › Engine Performance › Ignition System › Camshaft Position Sensor (5VZ-FE) › Components

Camshaft Position Sensor (5VZ-FE): Components

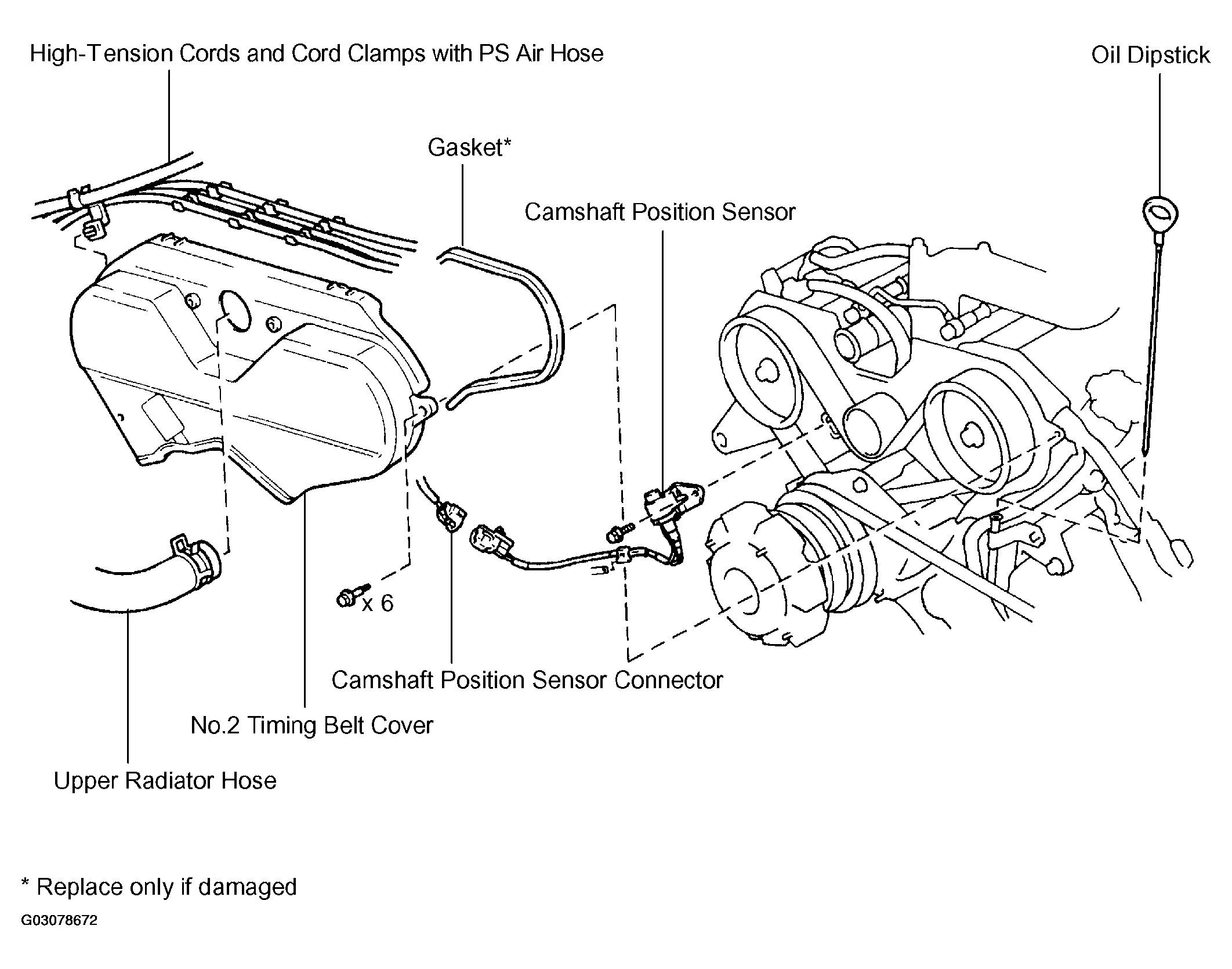

Fig 1: Identifying Camshaft Position Sensor Components
G03078672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
