Camshaft Position Sensor (5VZ-FE): Replacement

REMOVE NO. 2 TIMING BELT COVER
(See REMOVAL )
REMOVE CAMSHAFT POSITION SENSOR
1. Disconnect the sensor connector.
2. Remove the bolt and sensor.

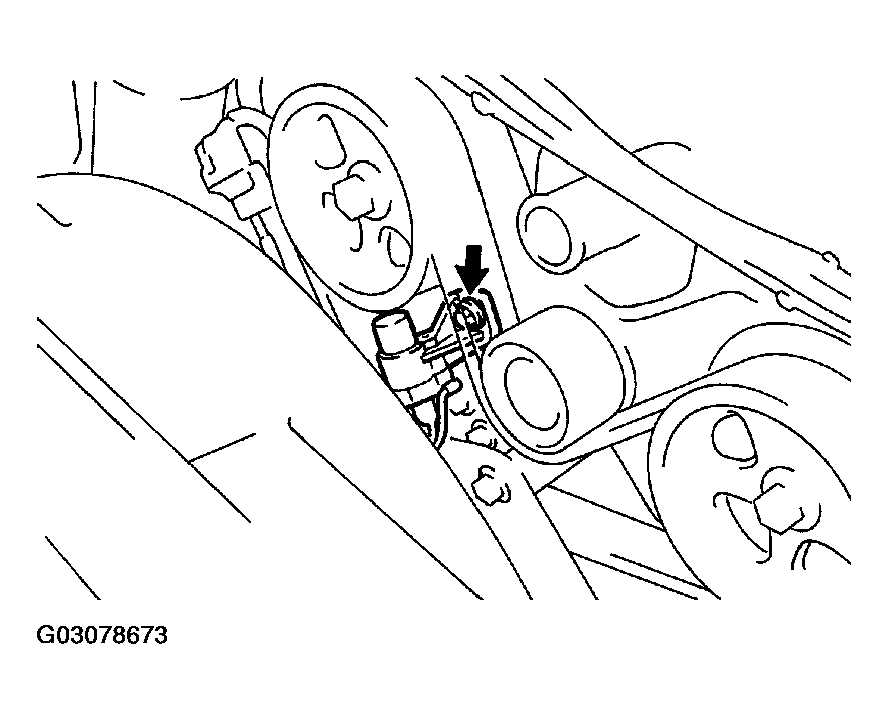

  Fig 1: Removing Camshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REINSTALL NEW CAMSHAFT POSITION SENSOR
1. Install a new sensor with the bolt.
  1. Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
2. Connect the sensor connector.
REINSTALL NO. 2 TIMING BELT COVER
(See REMOVAL )
