Crankshaft Position Sensor (5VZ-FE): Replacement

REMOVE ENGINE UNDER COVER
REMOVE CRANKSHAFT POSITION SENSOR
1. Disconnect the sensor connector.
2. Remove the bolt and sensor.

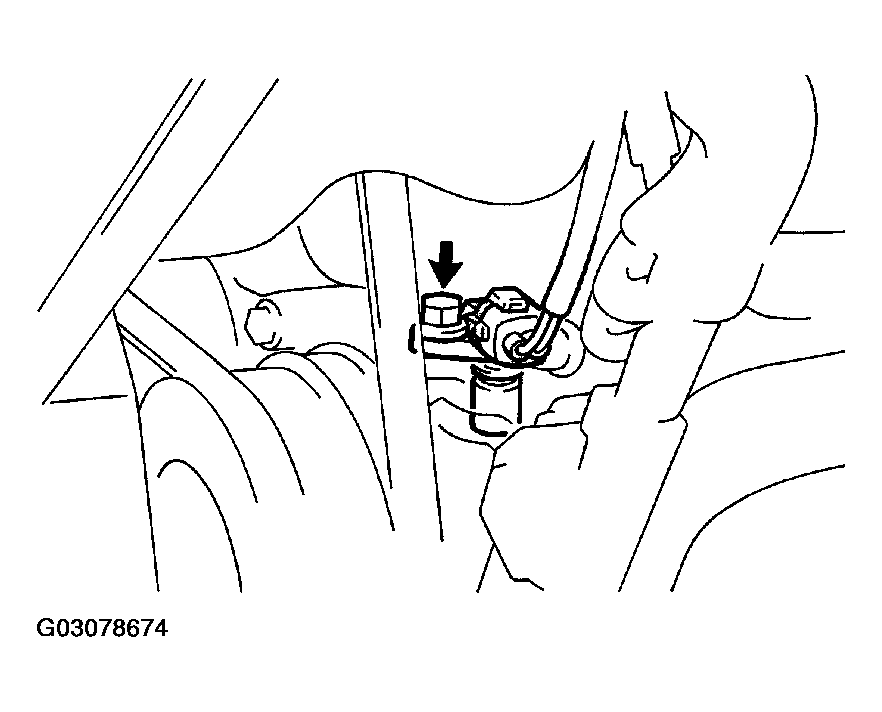

  Fig 1: Removing Bolt & Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
REINSTALL NEW CRANKSHAFT POSITION SENSOR
1. Install the sensor with the bolt.
2. Connect the sensor connector.
REINSTALL ENGINE UNDER COVER
