Tilt Steering Column: Components

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

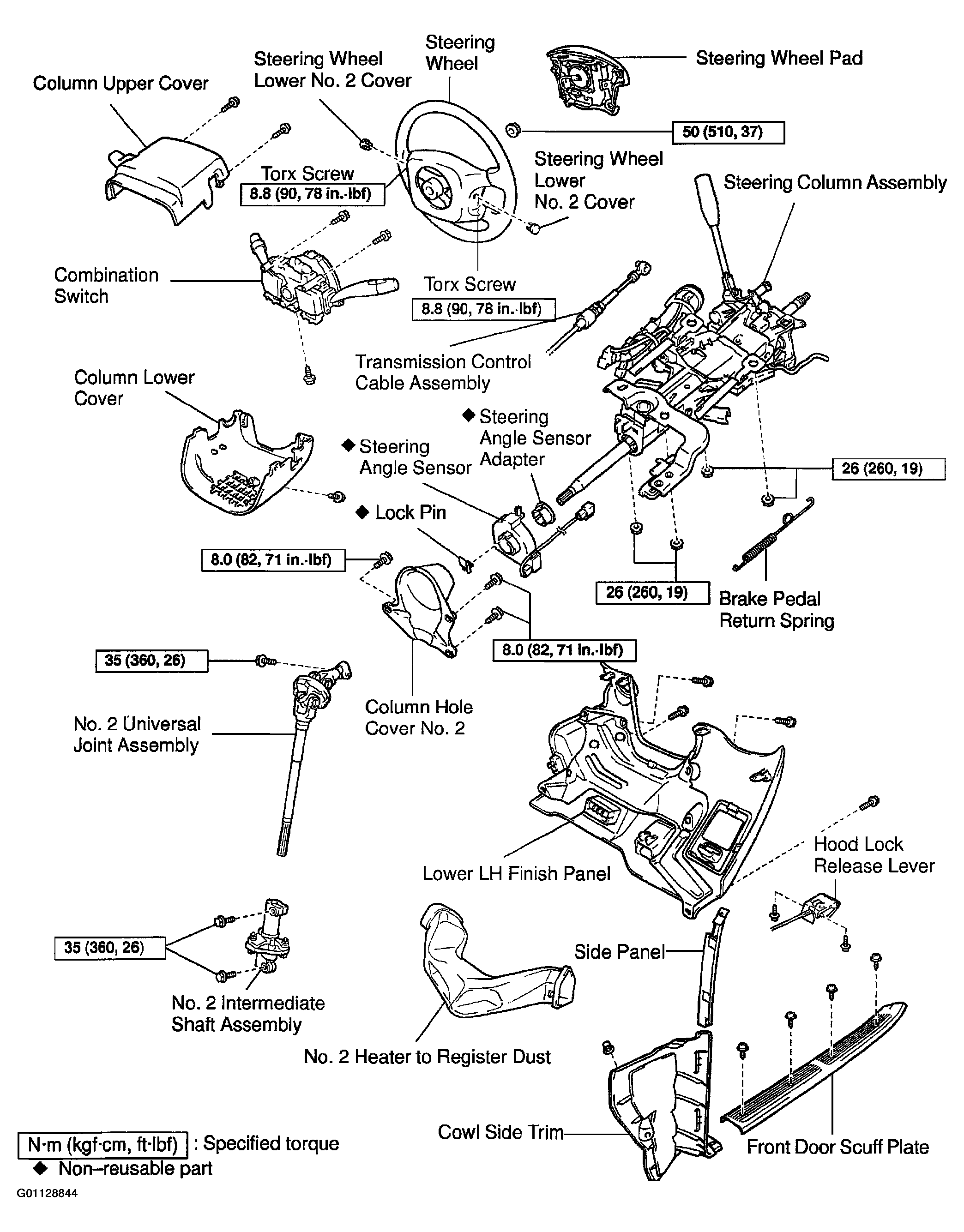

Fig 1: Locating Tilt Steering Column Components (1 Of 2)
G01128844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

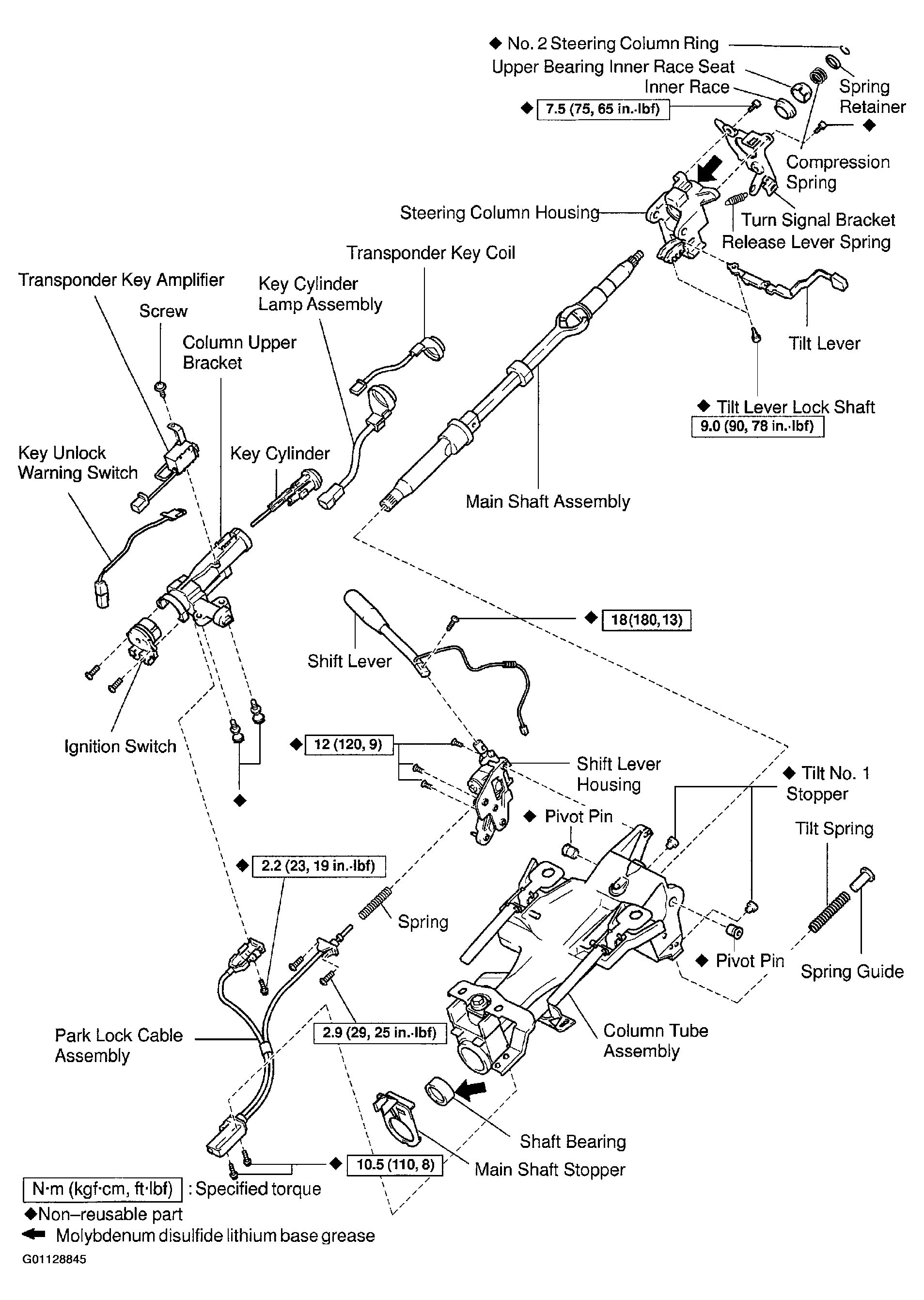

Fig 2: Locating Tilt Steering Column Components (2 Of 2)
G01128845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
