Vehicle Lift And Support Locations

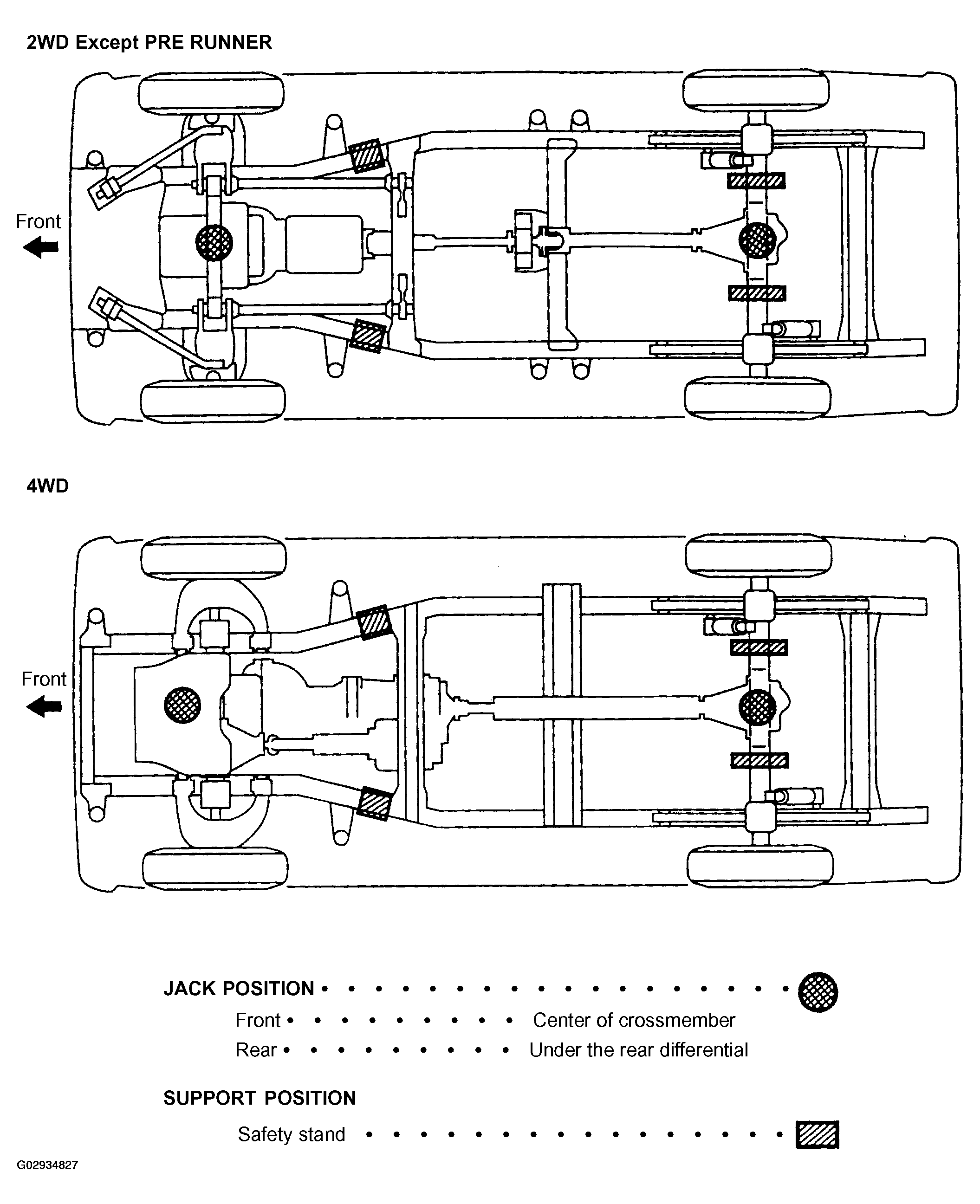

Fig 1: Locating Jack & Support Position Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

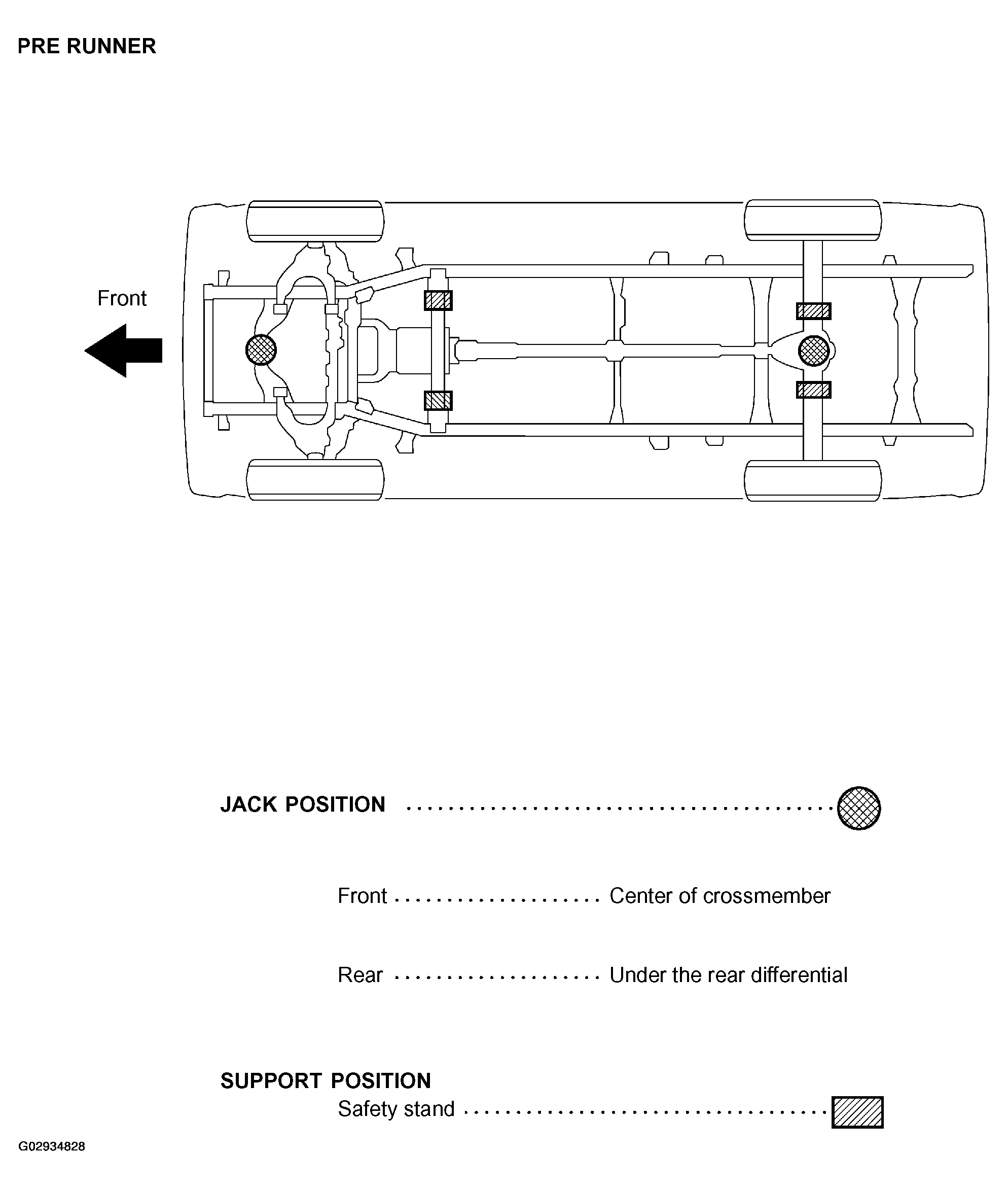

Fig 2: Locating Jack & Support Position Point (Pre Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
