Automatic Transmission Unit - A340F: Components

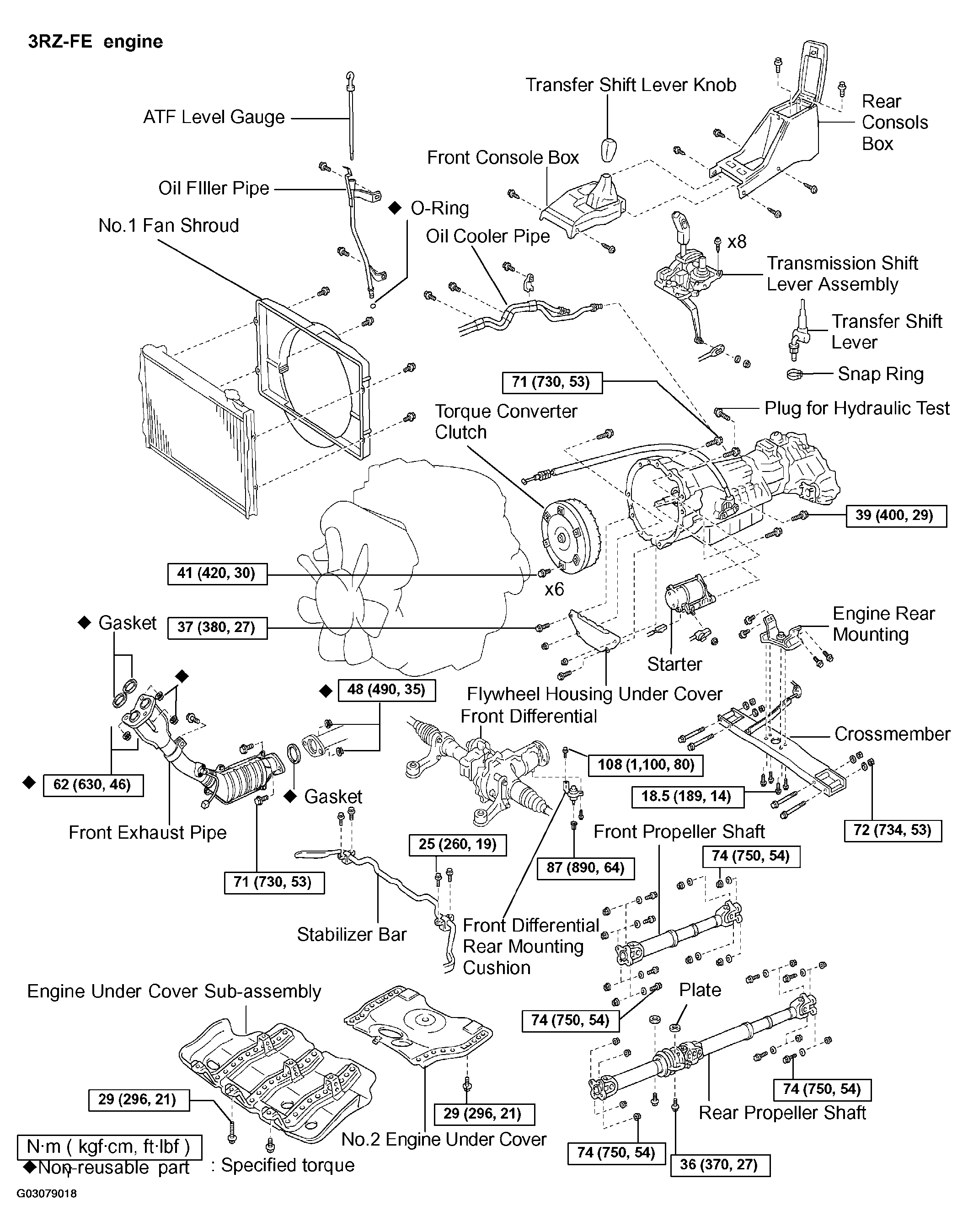

Fig 1: Exploded View Of Automatic Transmission Unit (A340F) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

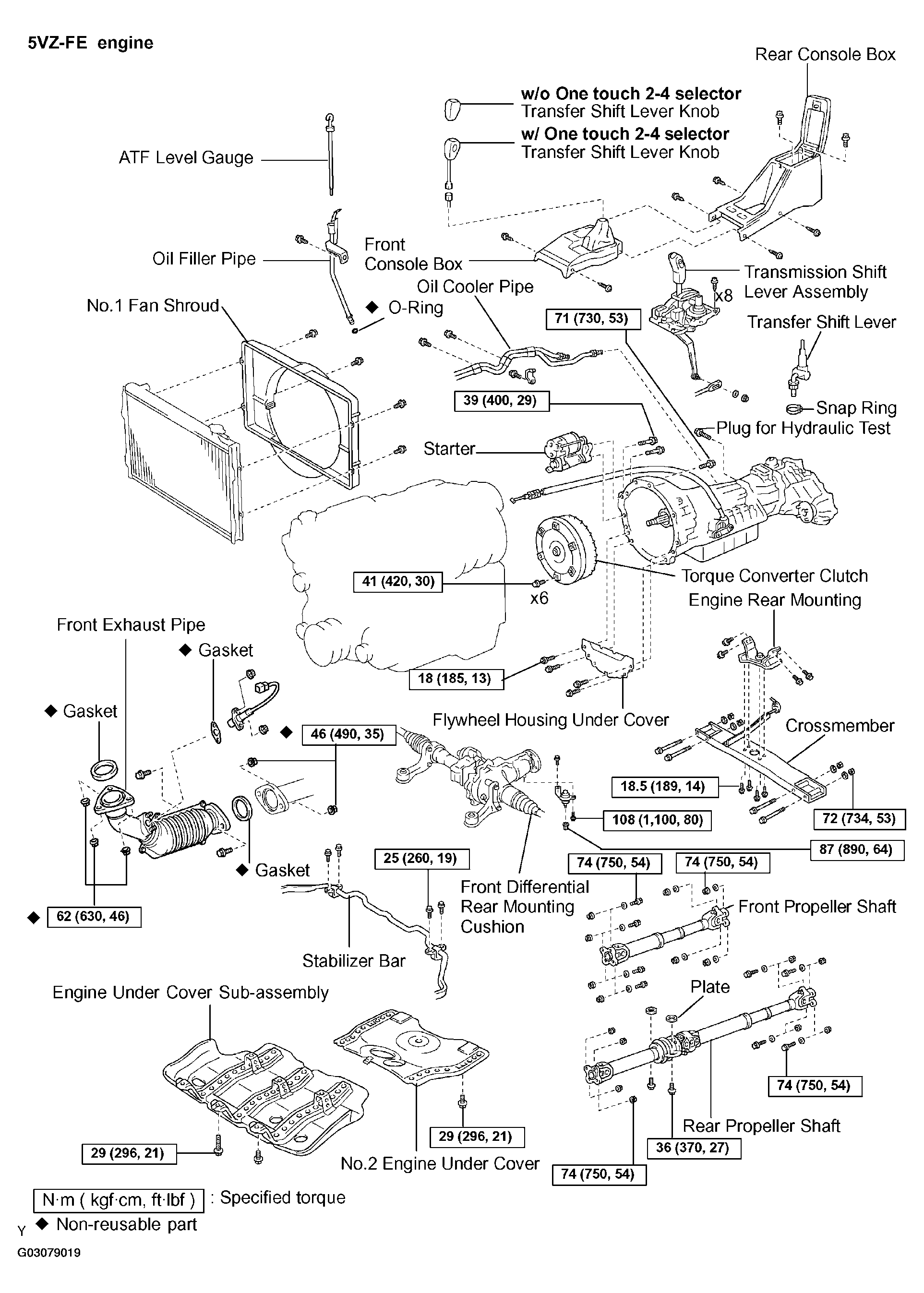

Fig 2: Exploded View Of Automatic Transmission Unit (A340F) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
