Heated Oxygen Sensor: Components

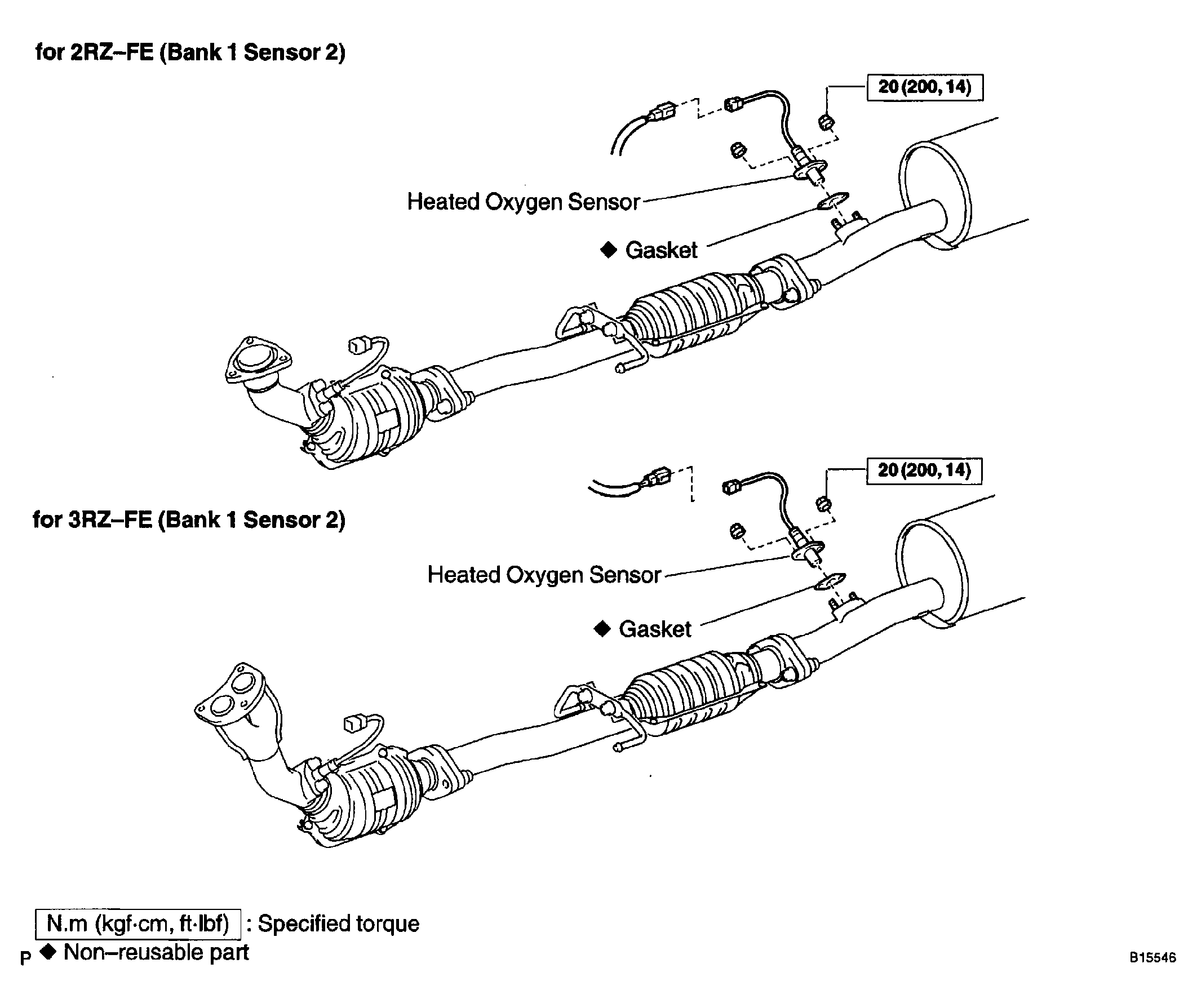

Fig 1: Exploded View Of Heated Oxygen Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
