SFI System (2RZ-FE, 3RZ-FE): Injector: Components

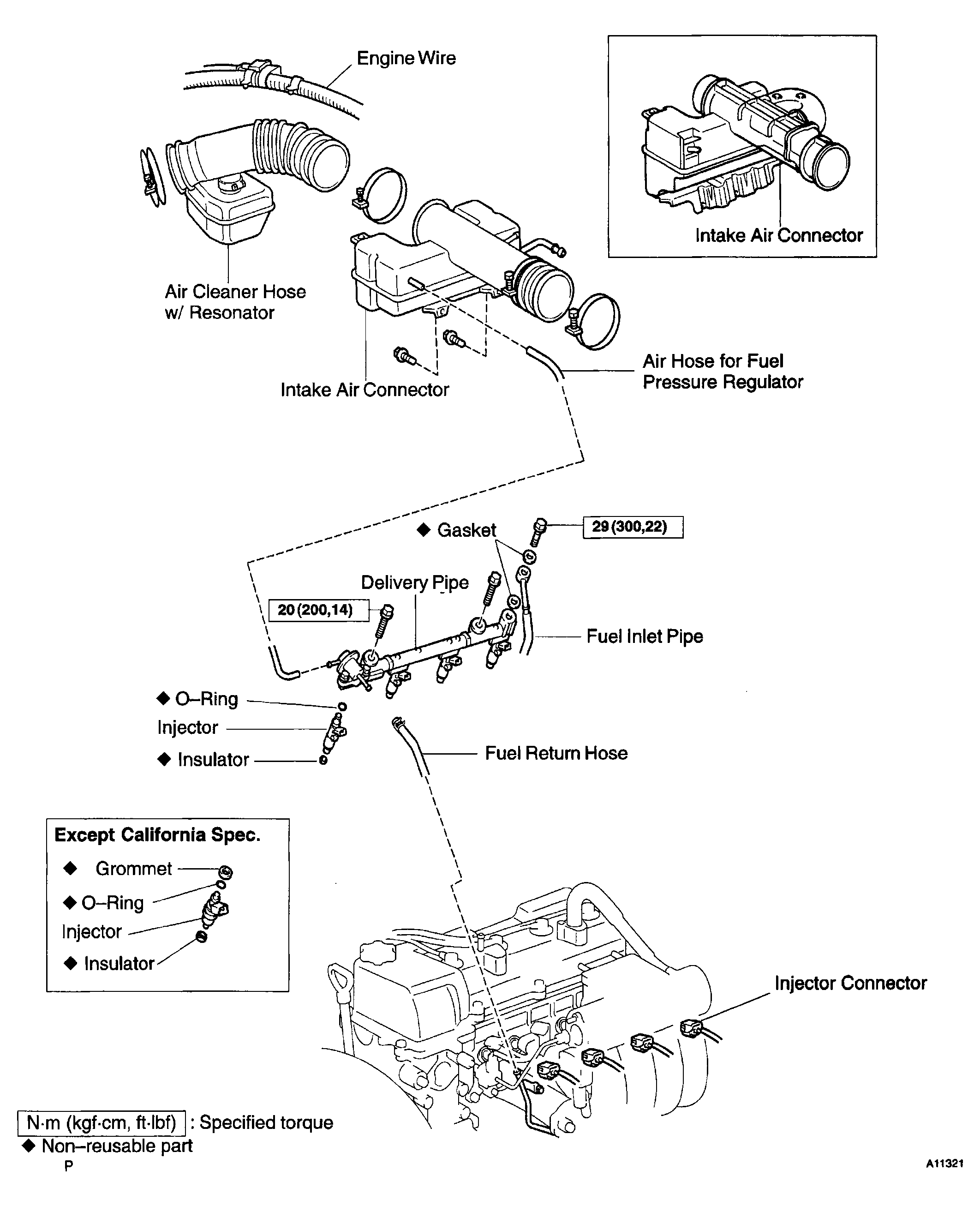

Fig 1: Exploded View Of Injector Components
G04241205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
