Throttle Body: Components

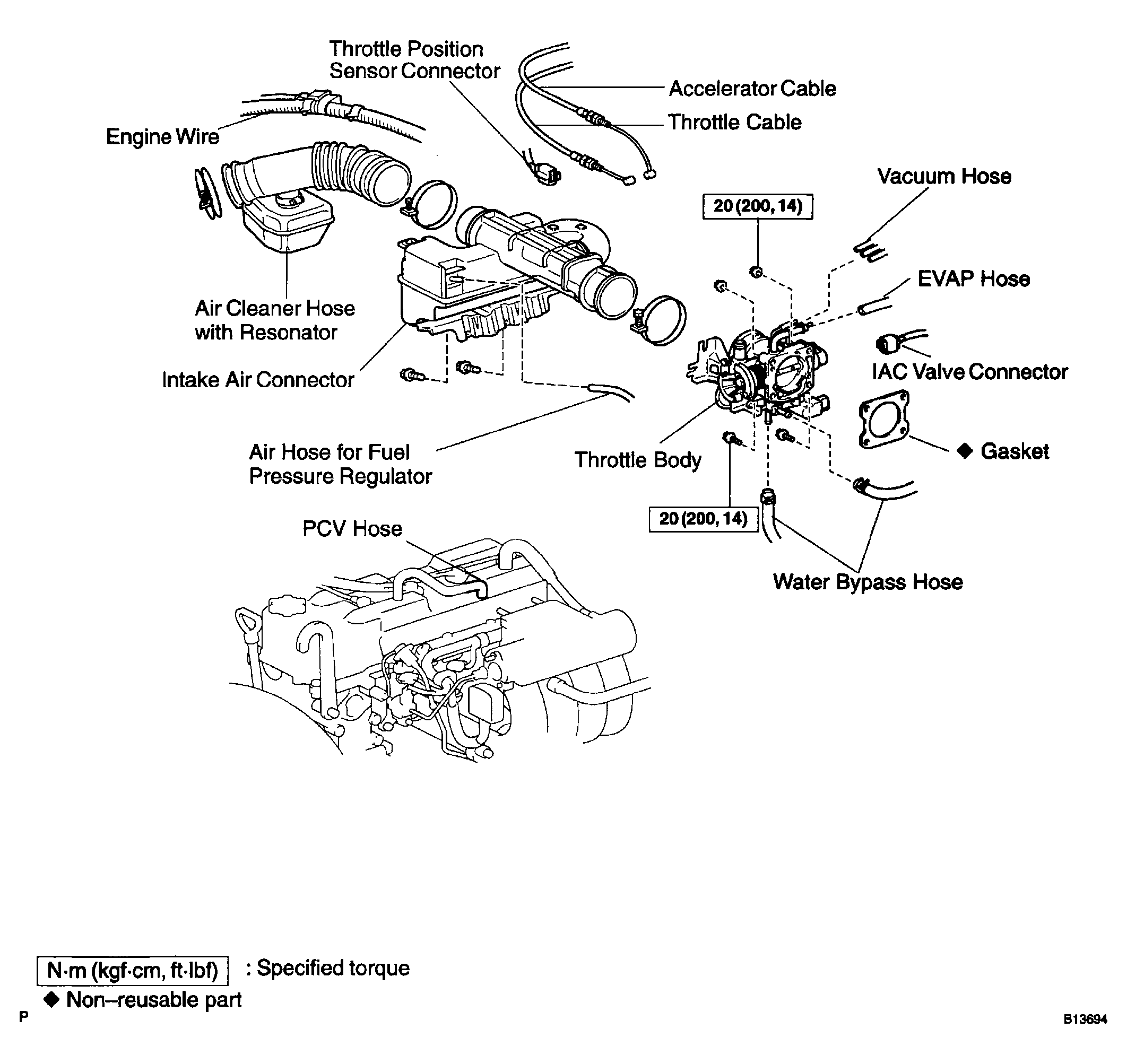

Fig 1: Exploded View Of Throttle Body Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
