Body Control Systems - Diagnostics
›
Circuit Inspection
›
Light Control Switch Circuit
›
Wiring Diagram
Light Control Switch Circuit: Wiring Diagram

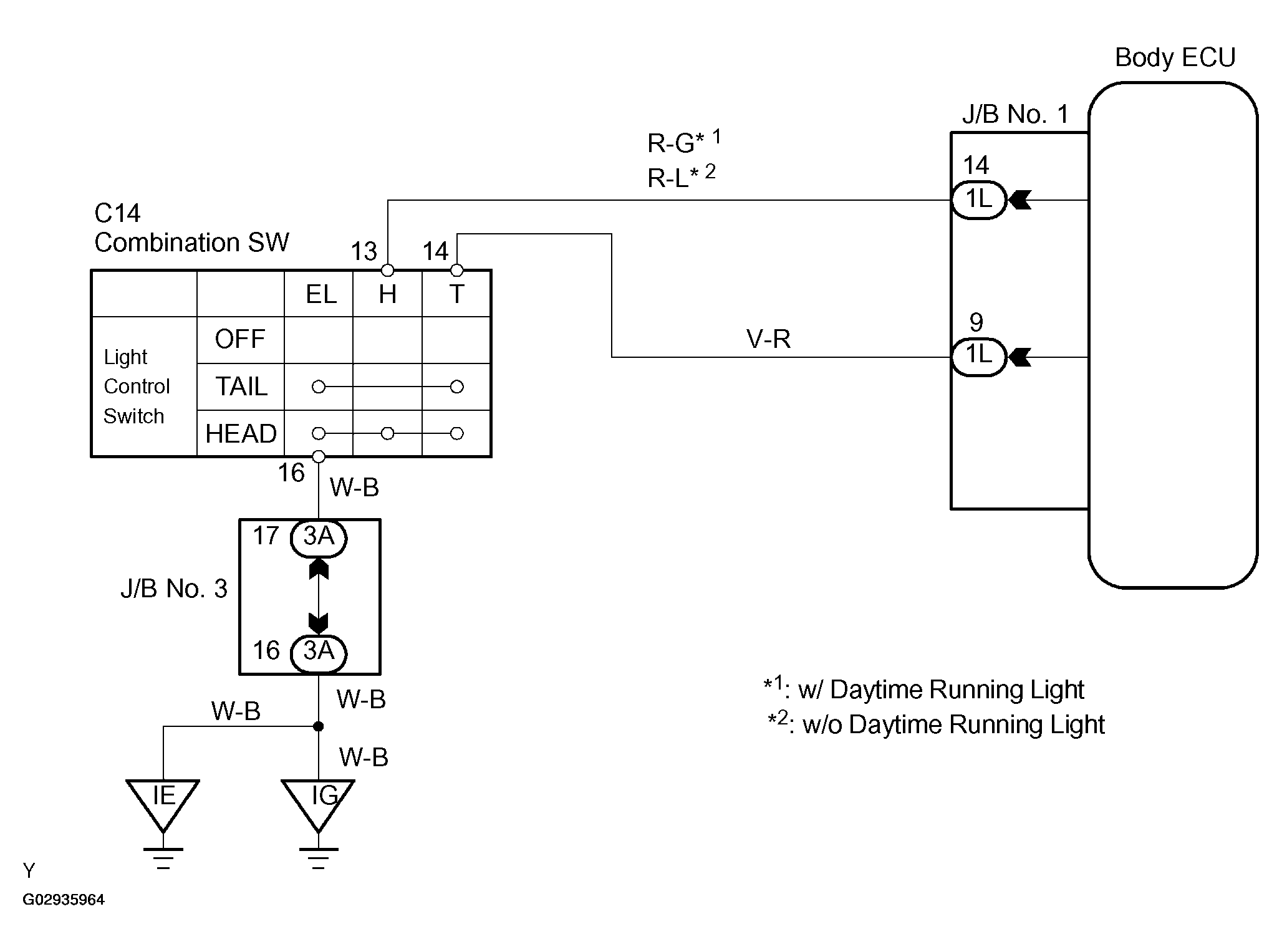

Fig 1: Identifying Light Control Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
