Problem Symptoms Table
Problem Symptoms Table
DOOR LOCK CONTROL

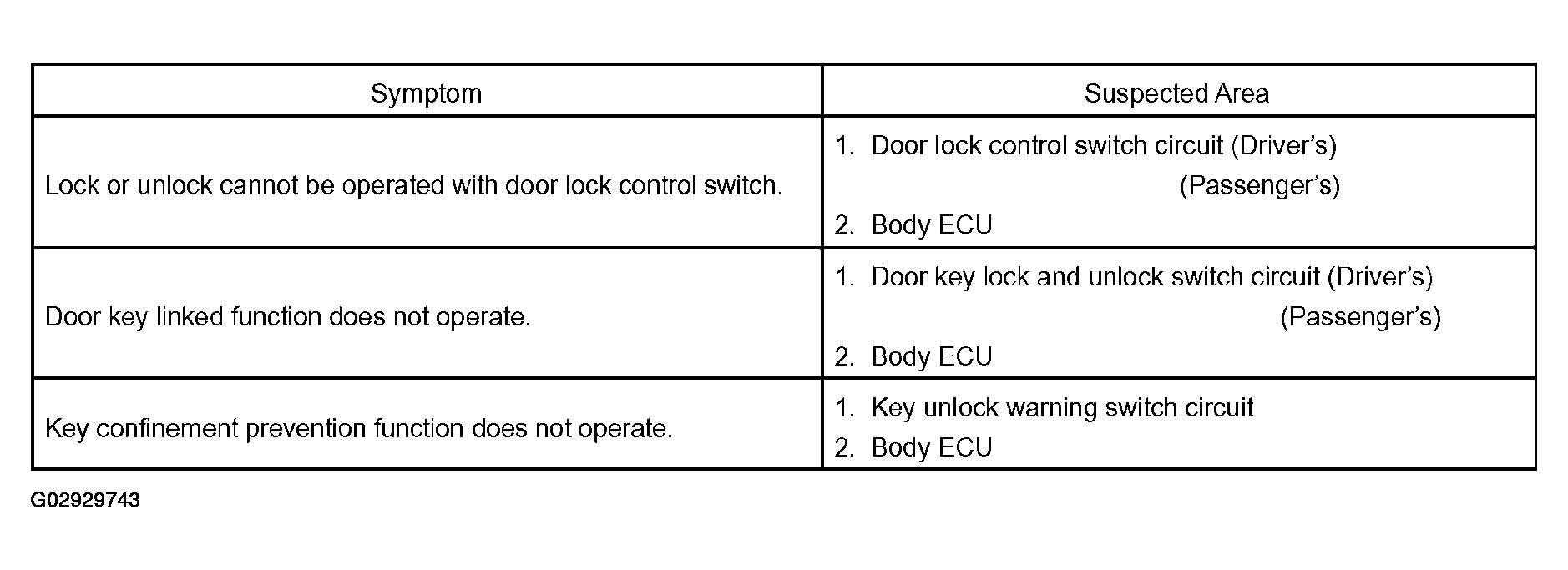

Fig 1: Problem Symptom Table (Door Lock Control)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
THEFT DETERRENT SYSTEM

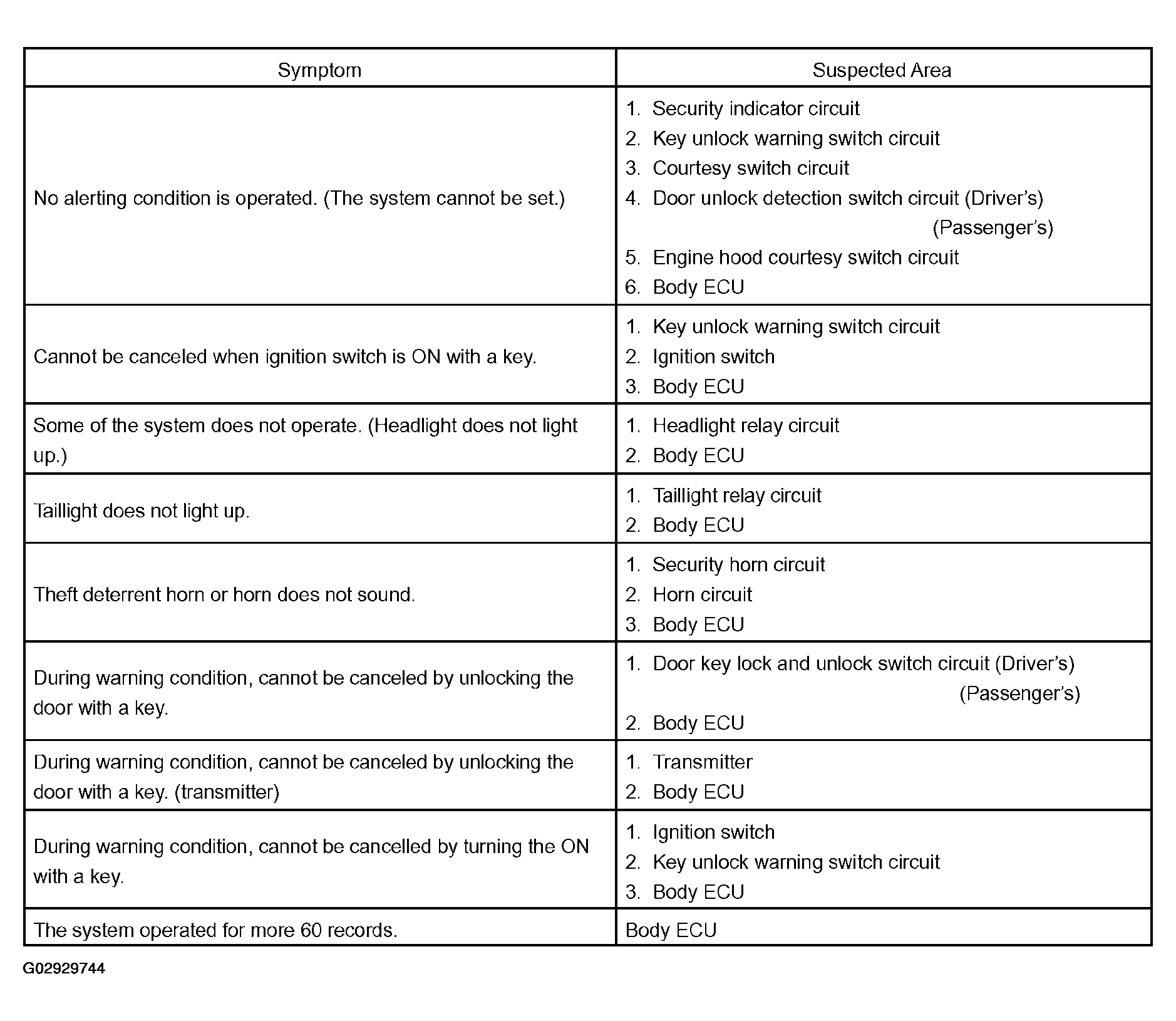

Fig 2: Problem Symptom Table (Theft Different System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WIRELESS DOOR LOCK CONTROL

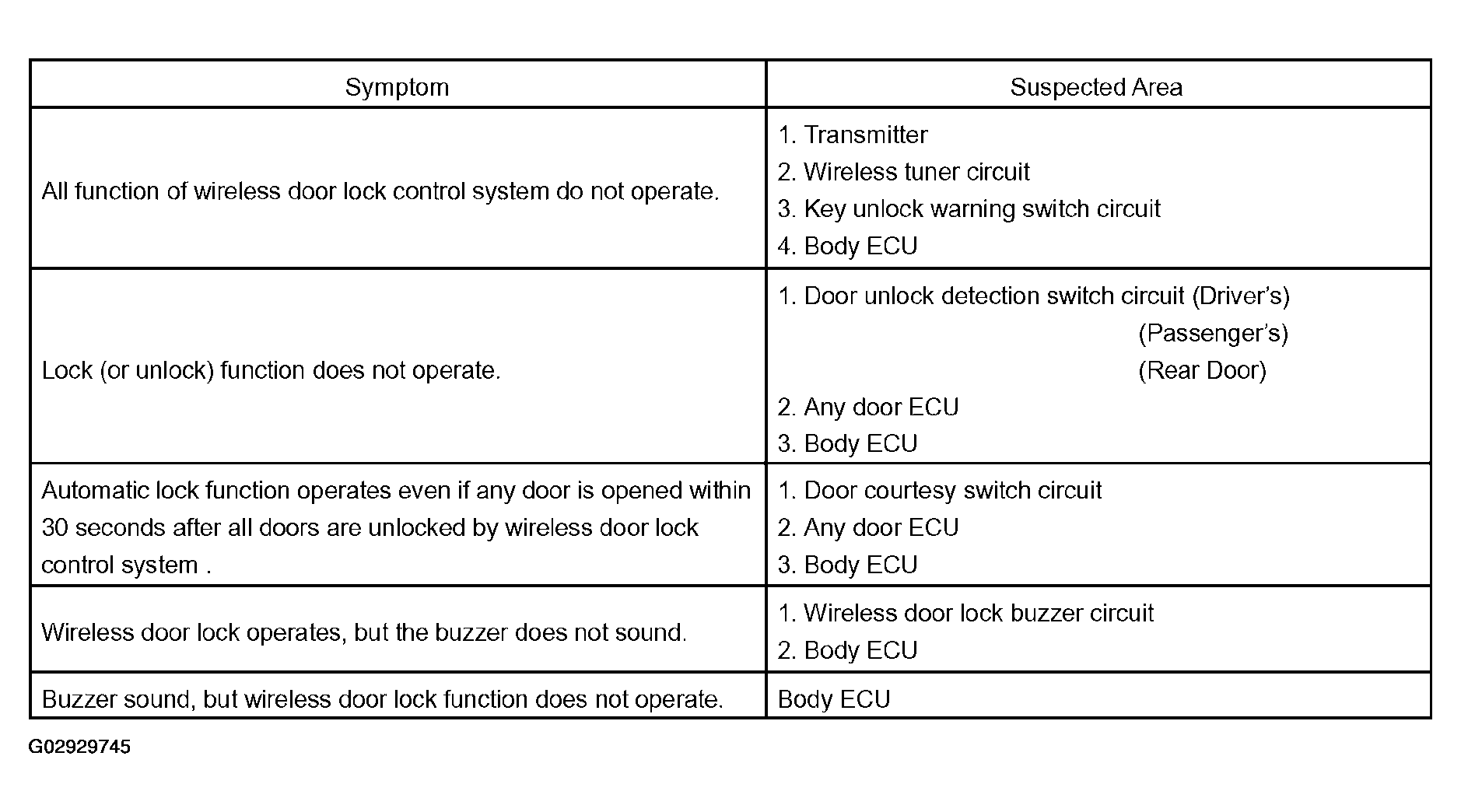

Fig 3: Problem Symptom Table (Wireless Door Lock Control)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OTHERS

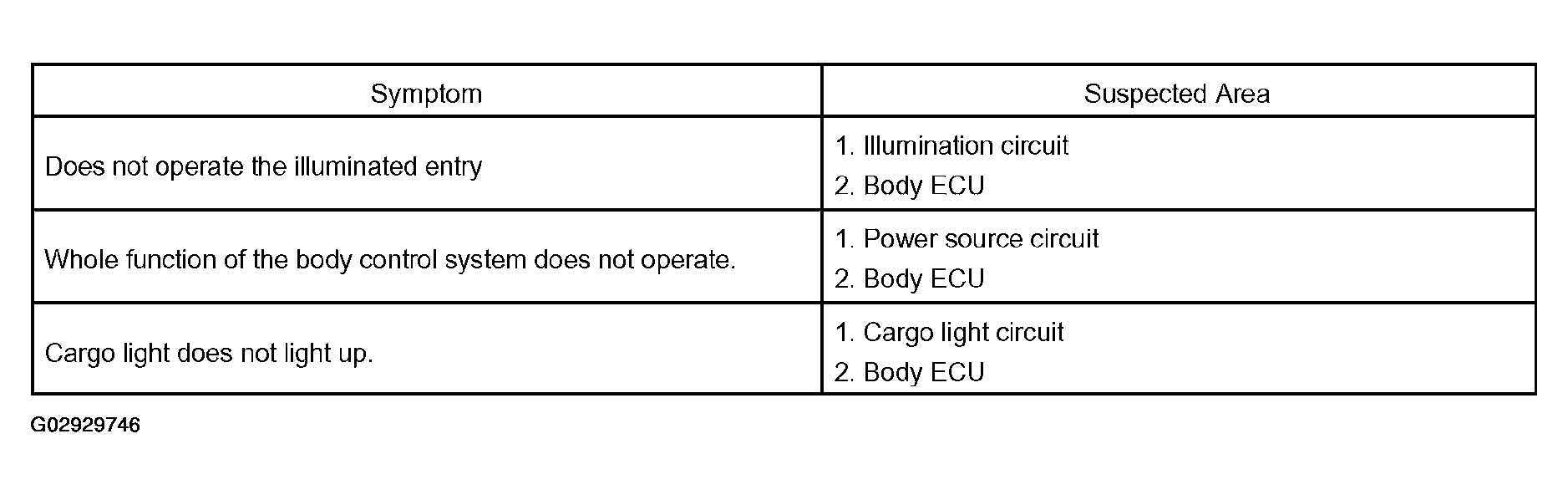

Fig 4: Problem Symptom Table (Others)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
