Light Control Switch Circuit
›
Wiring Diagram
Light Control Switch Circuit: Wiring Diagram

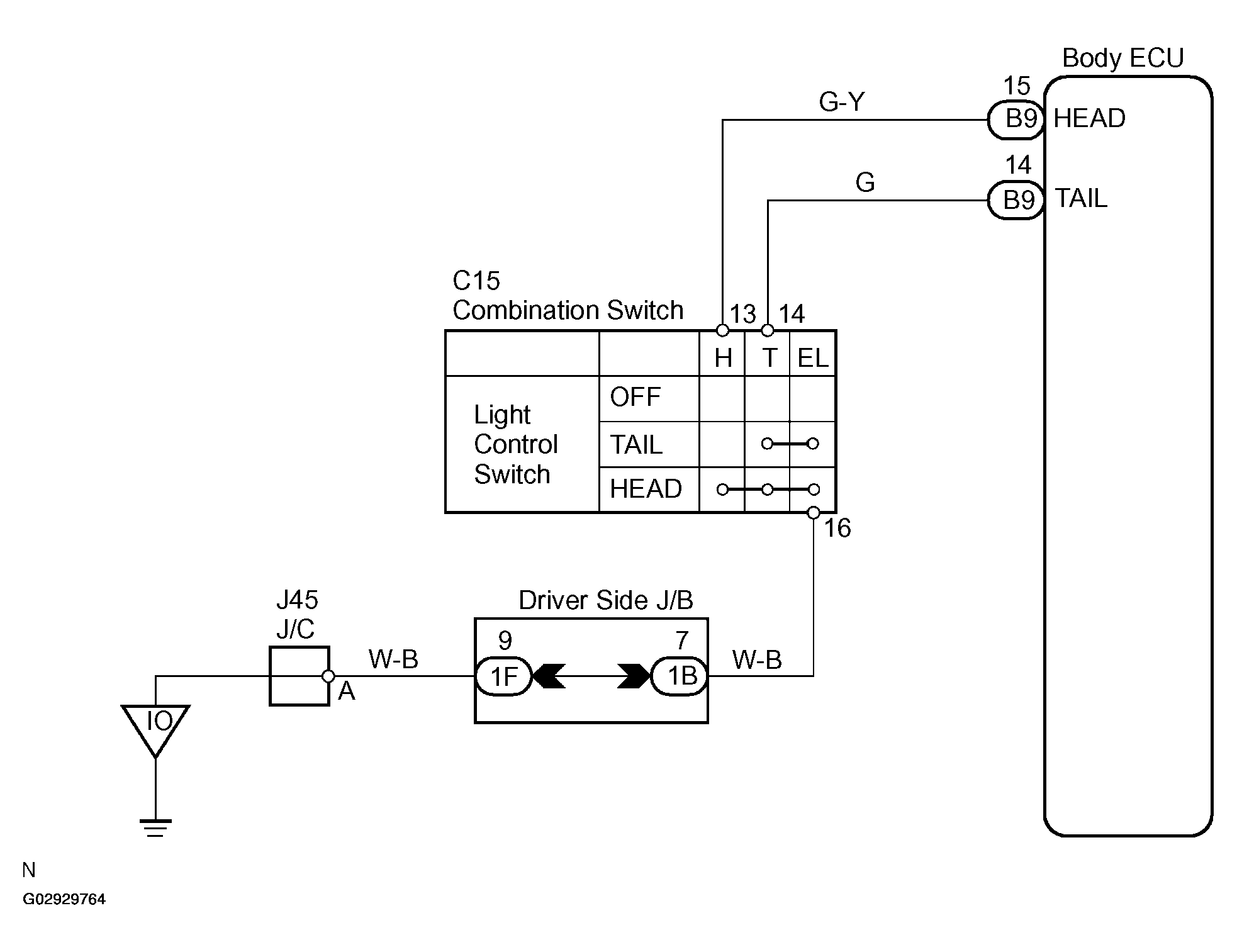

Fig 1: Light Control Switch-Wiring Diagram
