Back Window Glass: Components

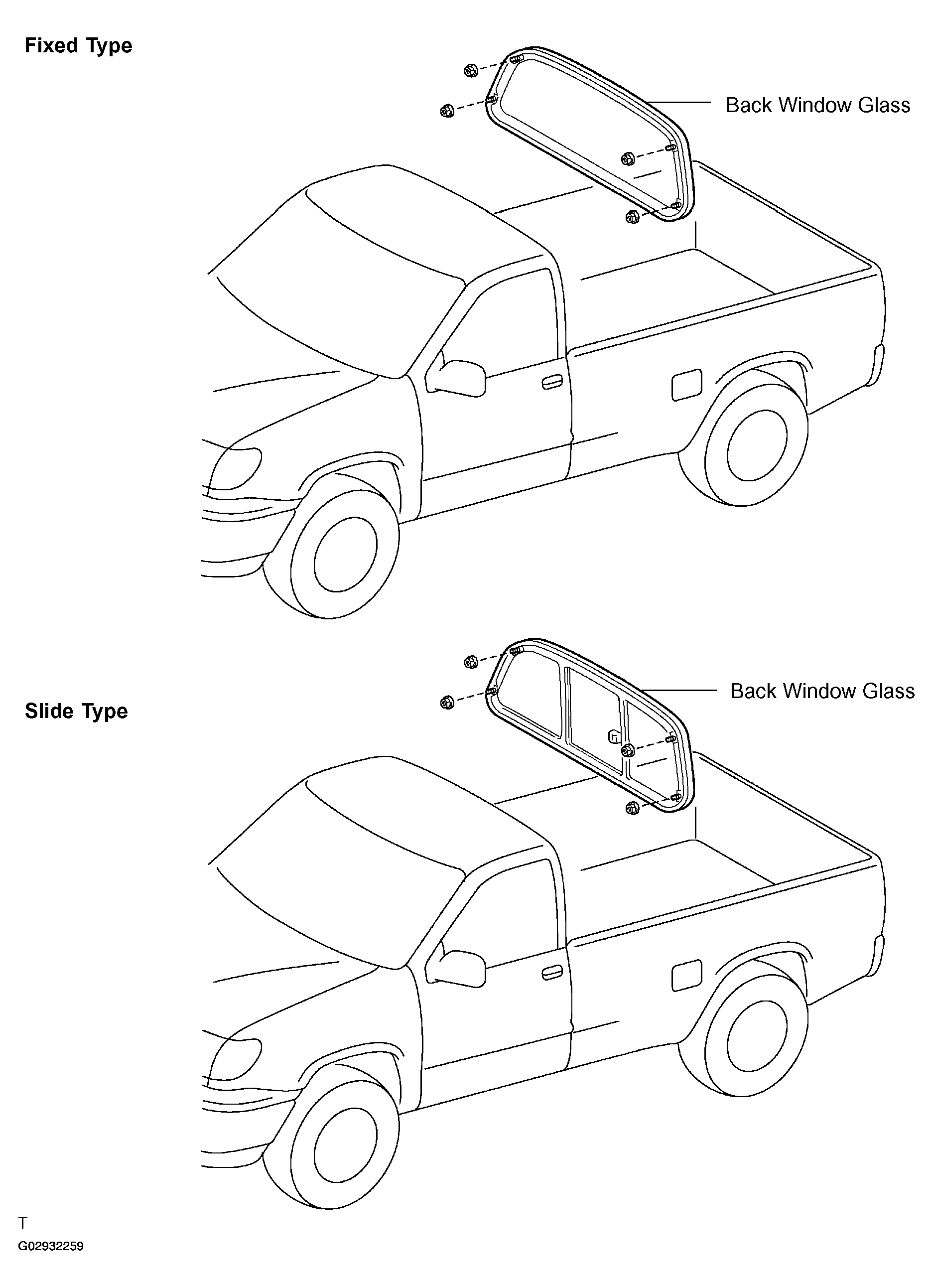

Fig 1: Removing/Installing Back Window Glass (Non-Power)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

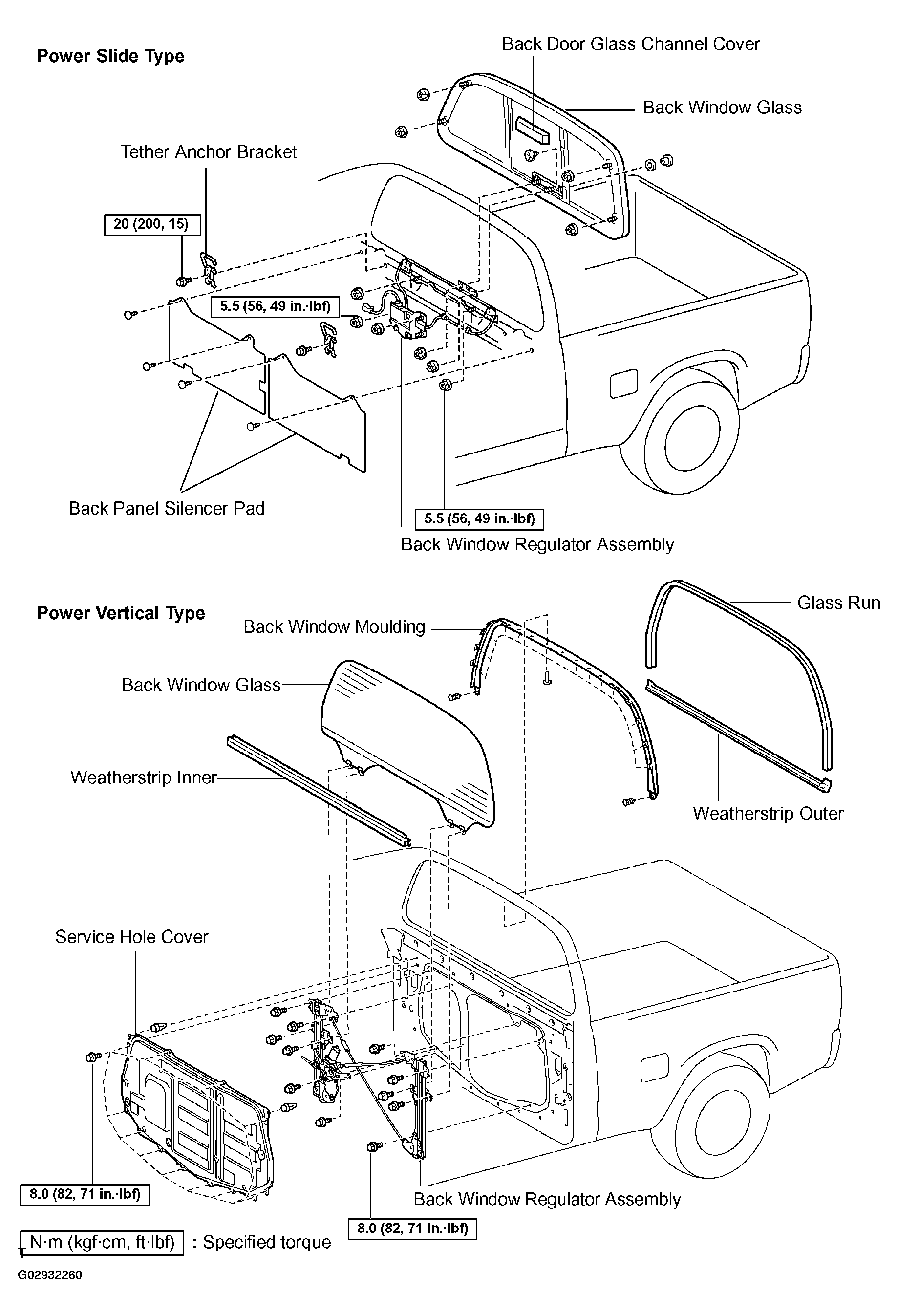

Fig 2: Removing/Installing Back Window Glass (Power)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
