Service Data

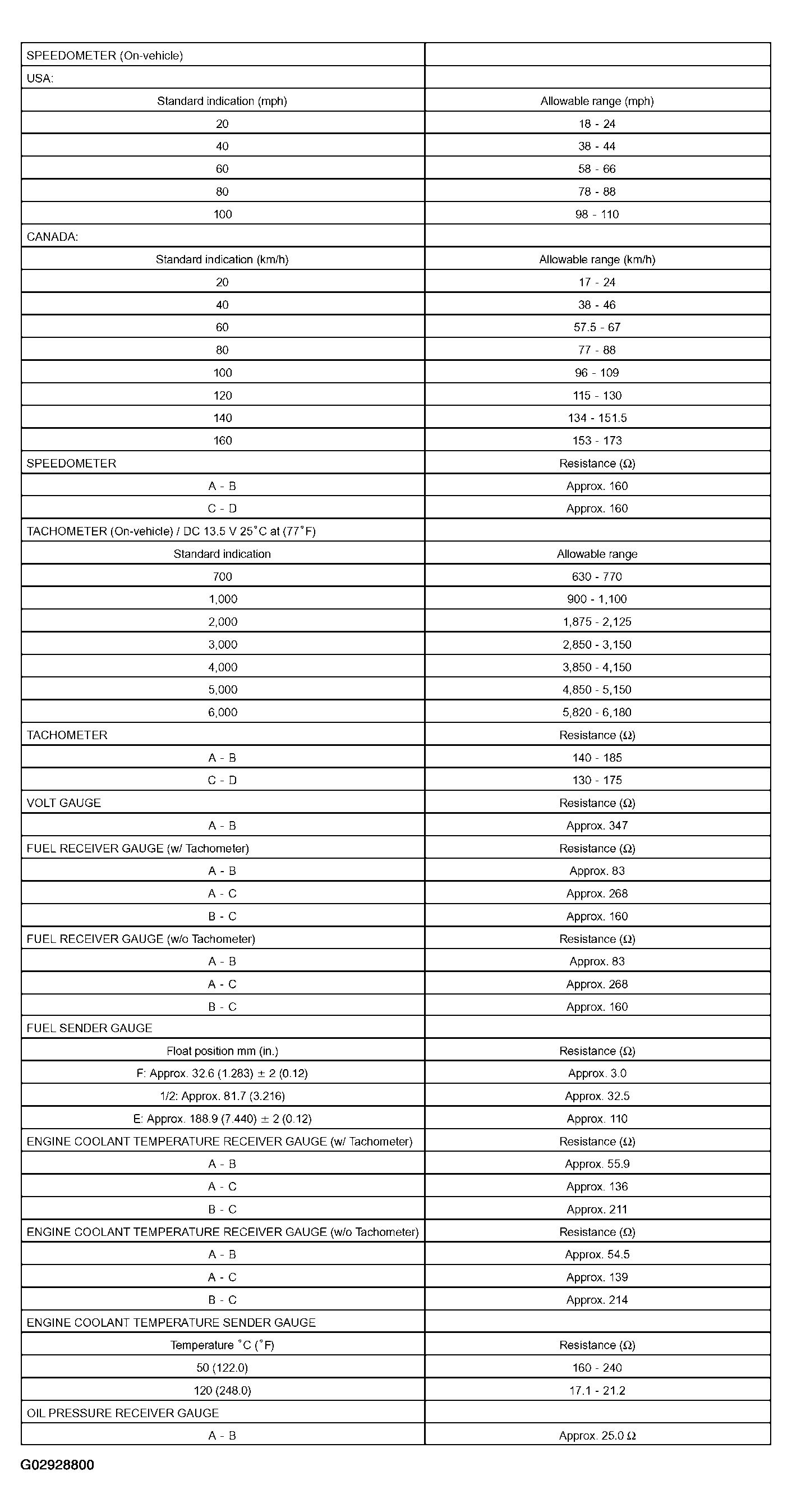

BODY ELECTRICAL SYSTEM SERVICE SPECIFICATIONS
| SPEEDOMETER (On-vehicle) | |
| USA: | |
| Standard indication (mph) | Allowable range (mph) |
| 20 | 18 - 24 |
| 40 | 38 - 44 |
| 60 | 58 - 66 |
| 80 | 78 - 88 |
| 100 | 98 - 110 |
| CANADA: | |
| Standard indication (km/h) | Allowable range (km/h) |
| 20 | 17 - 24 |
| 40 | 38 -46 |
| 60 | 57.5 - 67 |
| 80 | 77 - 88 |
| 100 | 96 - 109 |
| 120 | 115 - 130 |
| 140 | 134 - 151.5 |
| 160 | 153 - 173 |
| SPEEDOMETER | Resistance (Ω) |
| A - B | Approx. 160 |
| C - D | Approx. 160 |
| TACHOMETER (On-vehicle) / DC 13.5 V 25°C at (77°F) | |
| Standard indication | Allowable range |
| 700 | 630 - 770 |
| 1.000 | 900 - 1,100 |
| 2,000 | 1,875 - 2,125 |
| 3.000 | 2,850 - 3,150 |
| 4,000 | 3,850 - 4,150 |
| 5.000 | 4,850 - 5,150 |
| 6,000 | 5,820 - 6,180 |
| TACHOMETER | Resistance (Ω) |
| A - B | 140 - 185 |
| C - D | 130 - 175 |
| VOLT GAUGE | Resistance (Ω) |
| A - B | Approx. 347 |
| FUEL RECEIVER GAUGE (w/ Tachometer) | Resistance (Ω) |
| A - B | Approx. 83 |
| A - C | Approx. 268 |
| B - C | Approx. 160 |
| FUEL RECEIVER GAUGE (w/o Tachometer) | Resistance (Ω) |
| A - B | Approx. 83 |
| A - C | Approx. 268 |
| B - C | Approx. 160 |
| FUEL SENDER GAUGE | |
| Float position mm (in.) | Resistance (Ω) |
| F: Approx. 32.6 (1.283) ± 2 (0.12) | Approx. 3.0 |
| 1/2: Approx. 81.7 (3.216) | Approx. 32.5 |
| E: Approx. 188.9 (7.440) ± 2 (0.12) | Approx. 110 |
| ENGINE COOLANT TEMPERATURE RECEIVER GAUGE (w/ Tachometer) | Resistance (Ω) |
| A - B | Approx. 55.9 |
| A - C | Approx. 136 |
| B - C | Approx. 211 |
| ENGINE COOLANT TEMPERATURE RECEIVER GAUGE (w/o Tachometer) | Resistance (Ω) |
| A - B | Approx. 54.5 |
| A - C | Approx. 139 |
| B - C | Approx. 214 |
| ENGINE COOLANT TEMPERATURE SENDER GAUGE | |
| Temperature °C (°F) | Resistance (Ω) |
| 50 (122.0) | 160 - 240 |
| 120 (248.0) | 17.1 - 21.2 |
| OIL PRESSURE RECEIVER GAUGE | |
| A - B | Approx. 25.0 Ω |
