Toyota
›
2004
›
Tundra Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
SFI System (5VZ-FE)
›
Fuel Pump
›
Components
Fuel Pump: Components

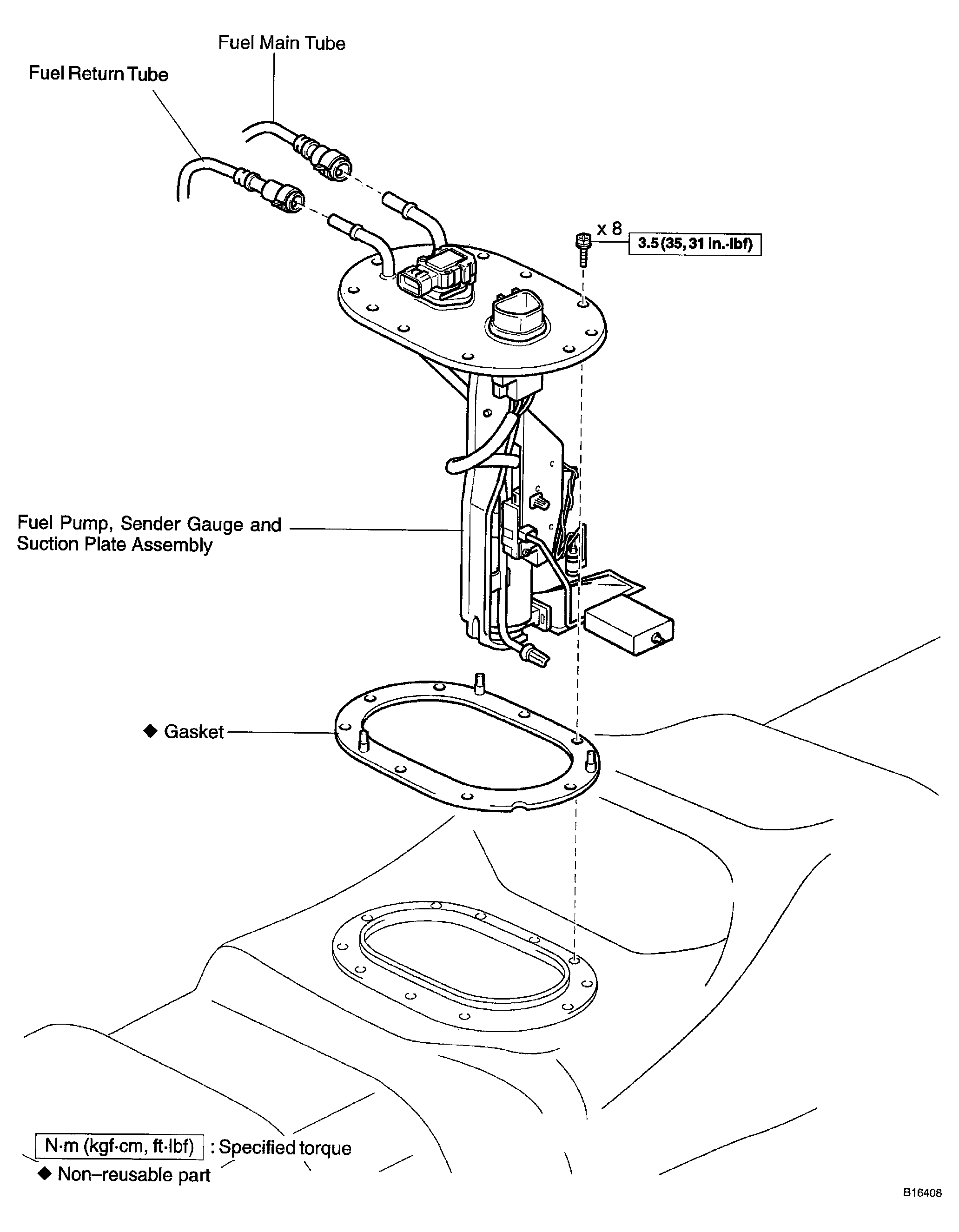

Fig 1: Identifying Fuel Pump Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

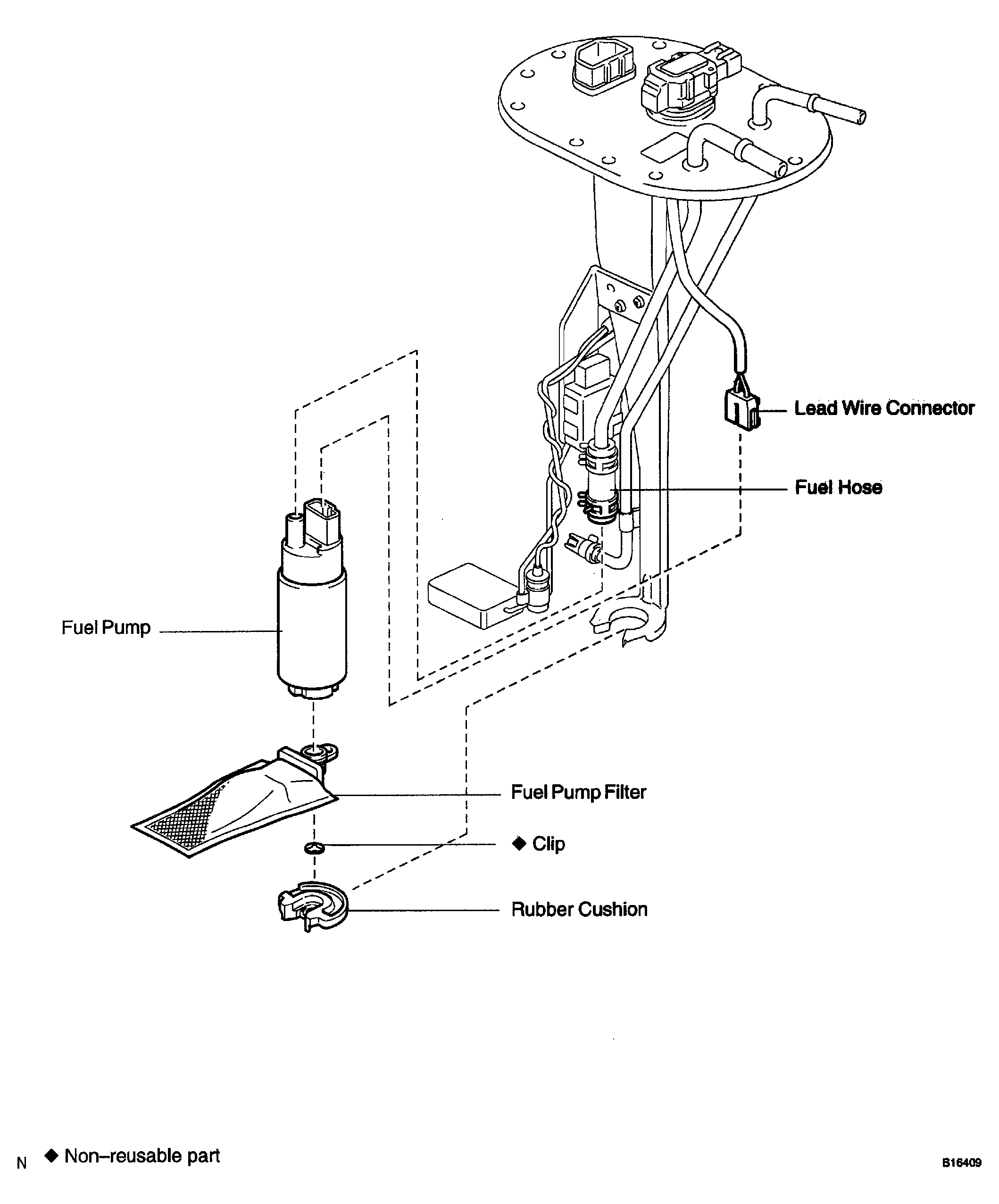

Fig 2: Identifying Fuel Pump Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
