Engine Ignition Coil (5VZ-FE): Removal

REMOVE AIR CLEANER HOSE
DISCONNECT HIGH-TENSION CORDS FROM IGNITION COILS (See IGNITION SYSTEM )
REMOVE IGNITION COILS
1. Disconnect the 3 connectors from the ignition coils.
2. Remove the 3 bolts and 3 ignition coils from the RH cylinder head cover.
  HINT: Arrange the ignition coils in correct order.

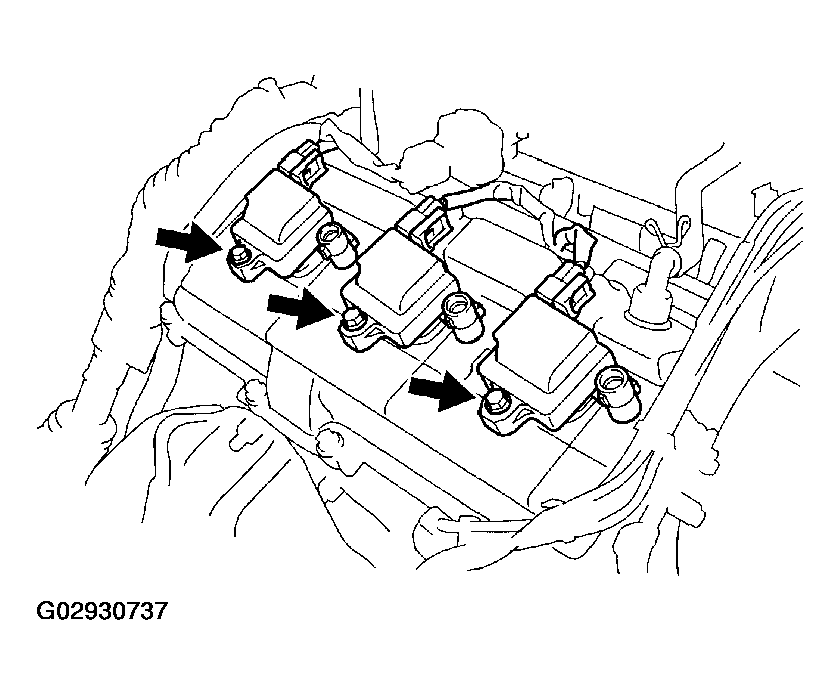

  Fig 1: Removing Ignition Coils
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
