Camshaft Position Sensor (5VZ-FE): Removal

REMOVE NO.2 TIMING BELT COVER (See REMOVAL )
REMOVE CAMSHAFT POSITION SENSOR
1. Disconnect the camshaft position sensor connector.
2. Remove the bolt and camshaft position sensor.

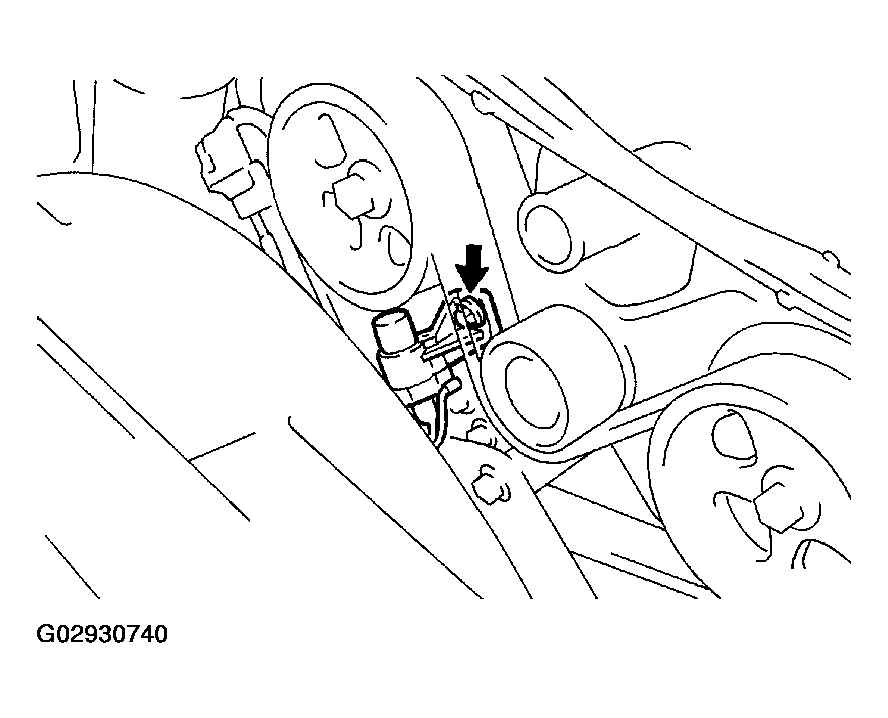

  Fig 1: Removing Camshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
