Section 484 (Navigation System - Diagnostics)
›
Navigation System
›
How To Proceed With Troubleshooting
How To Proceed With Troubleshooting
WARNING:
This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

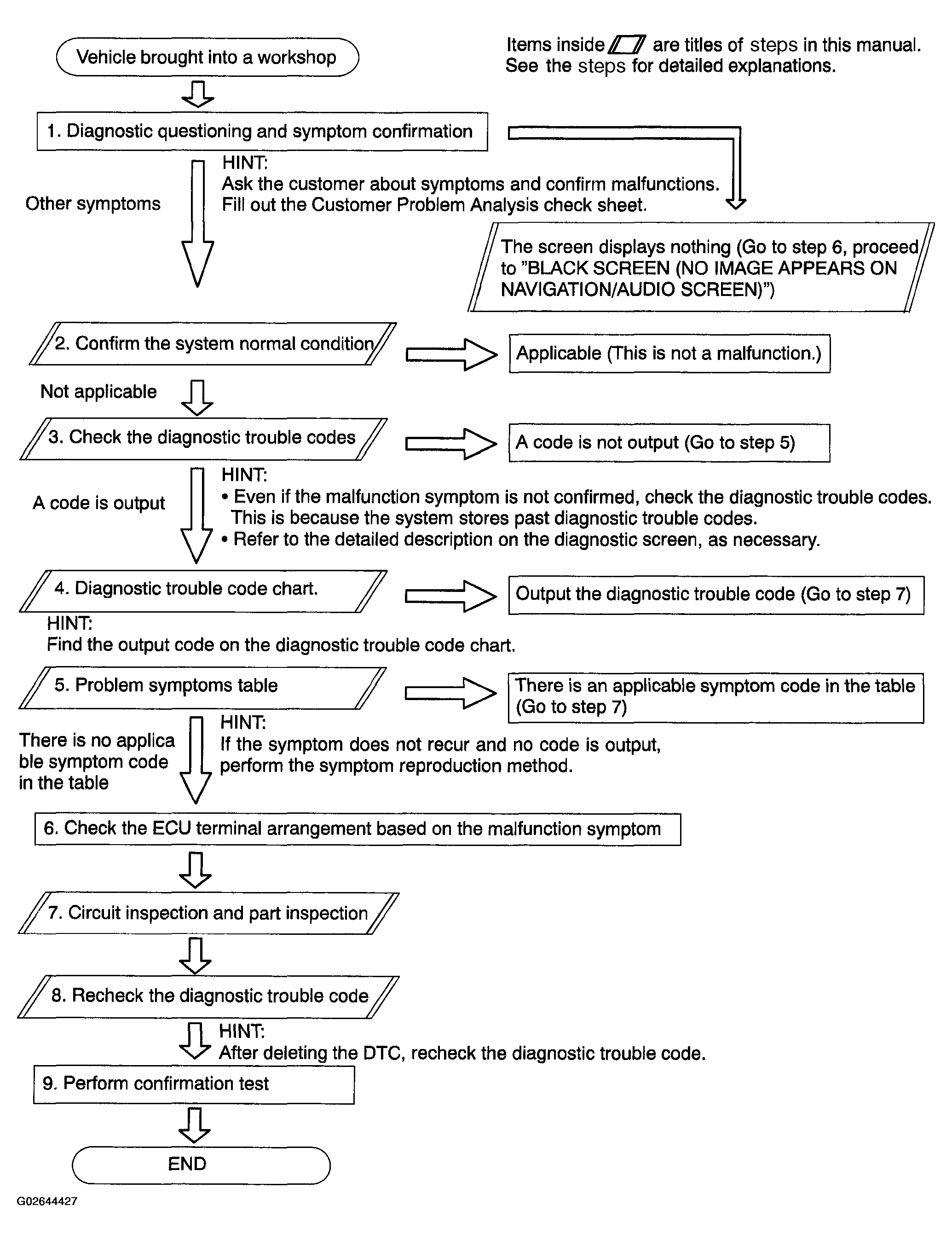

Fig 1: Troubleshooting Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
