Vehicle Lift And Support Locations
Vehicle Lift And Support Locations

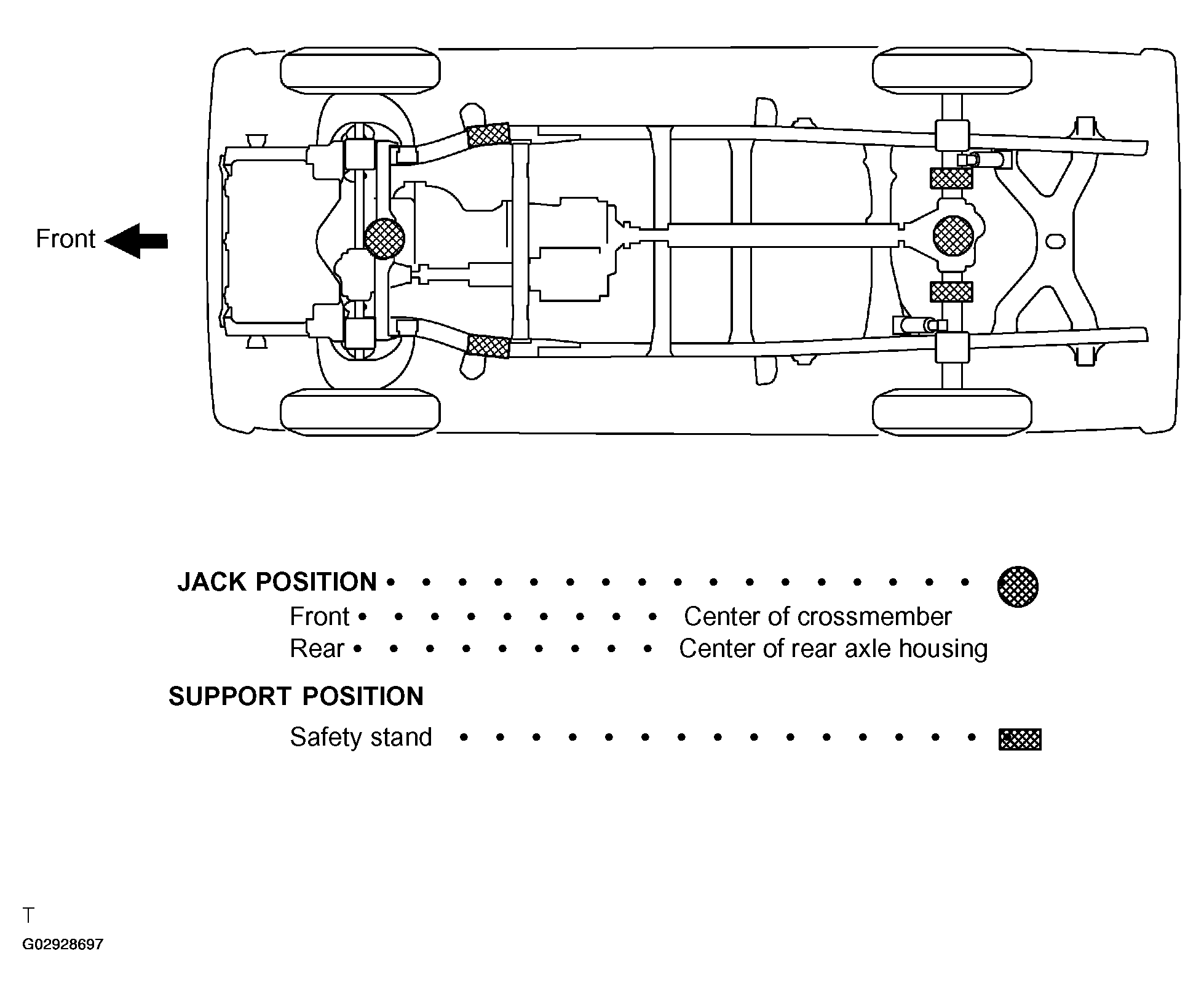

Fig 1: Locating Vehicle Jack & Support Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
