Transfer Case A.D.D. Control System: Location

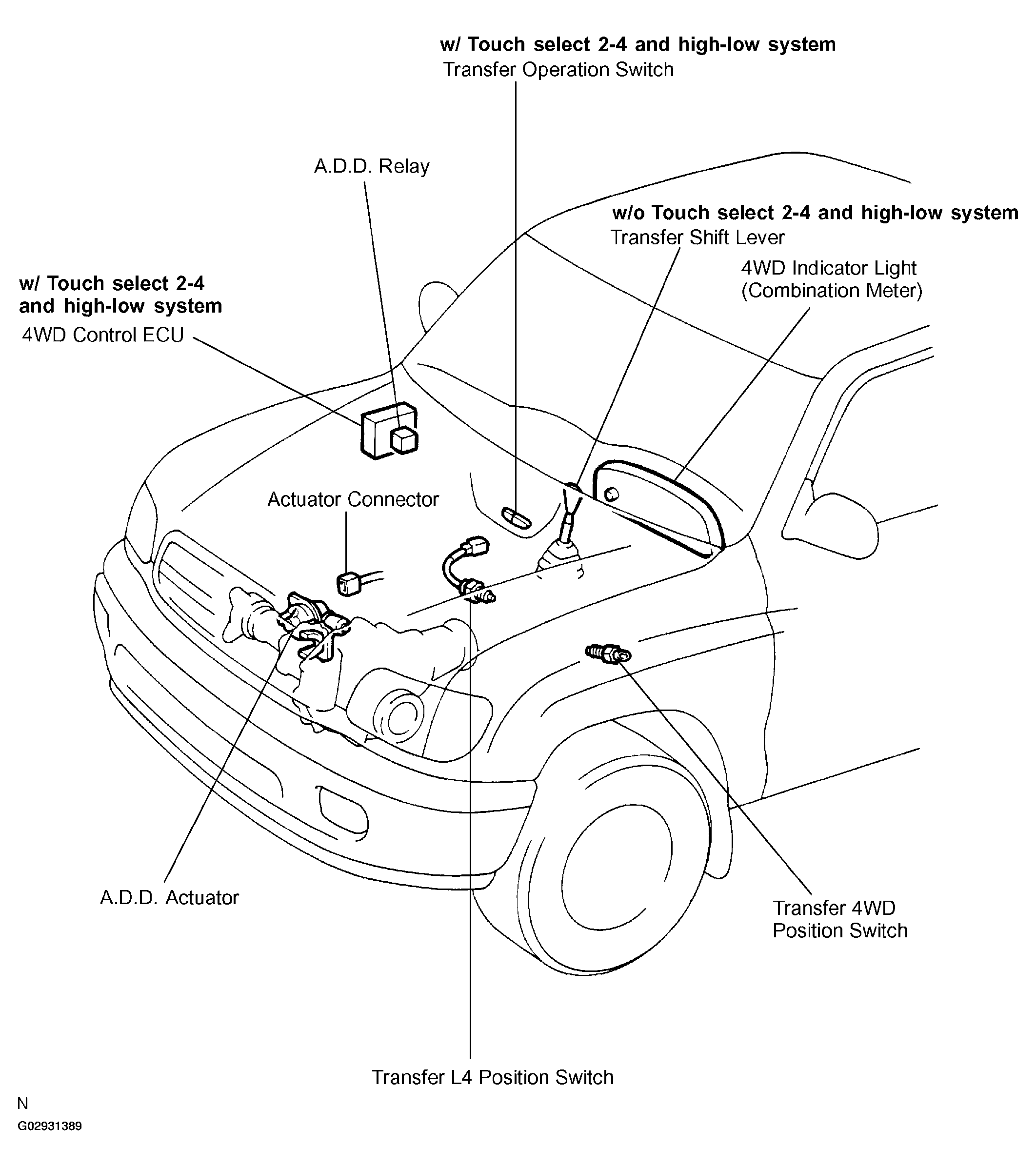

Fig 1: Locating A.D.D. Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
