Driver Door Control System - Diagnostics
›
Problem Symptoms Table
›
Power Window Control System
Power Window Control System

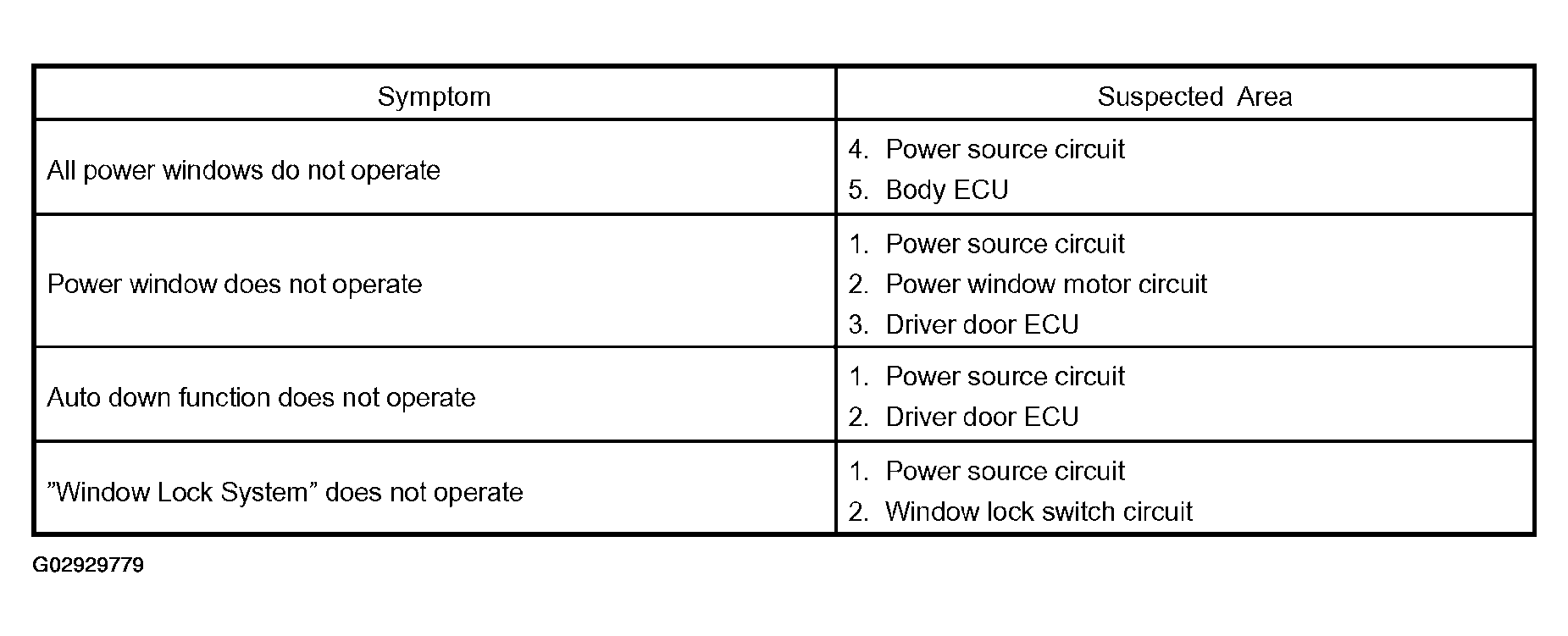

Fig 1: Power Window Control System Diagnostic Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
