Engine Controls - (5VZ-FE) - Diagnostics
›
How To Proceed With Troubleshooting
How To Proceed With Troubleshooting
Troubleshoot in accordance with the procedure shown.

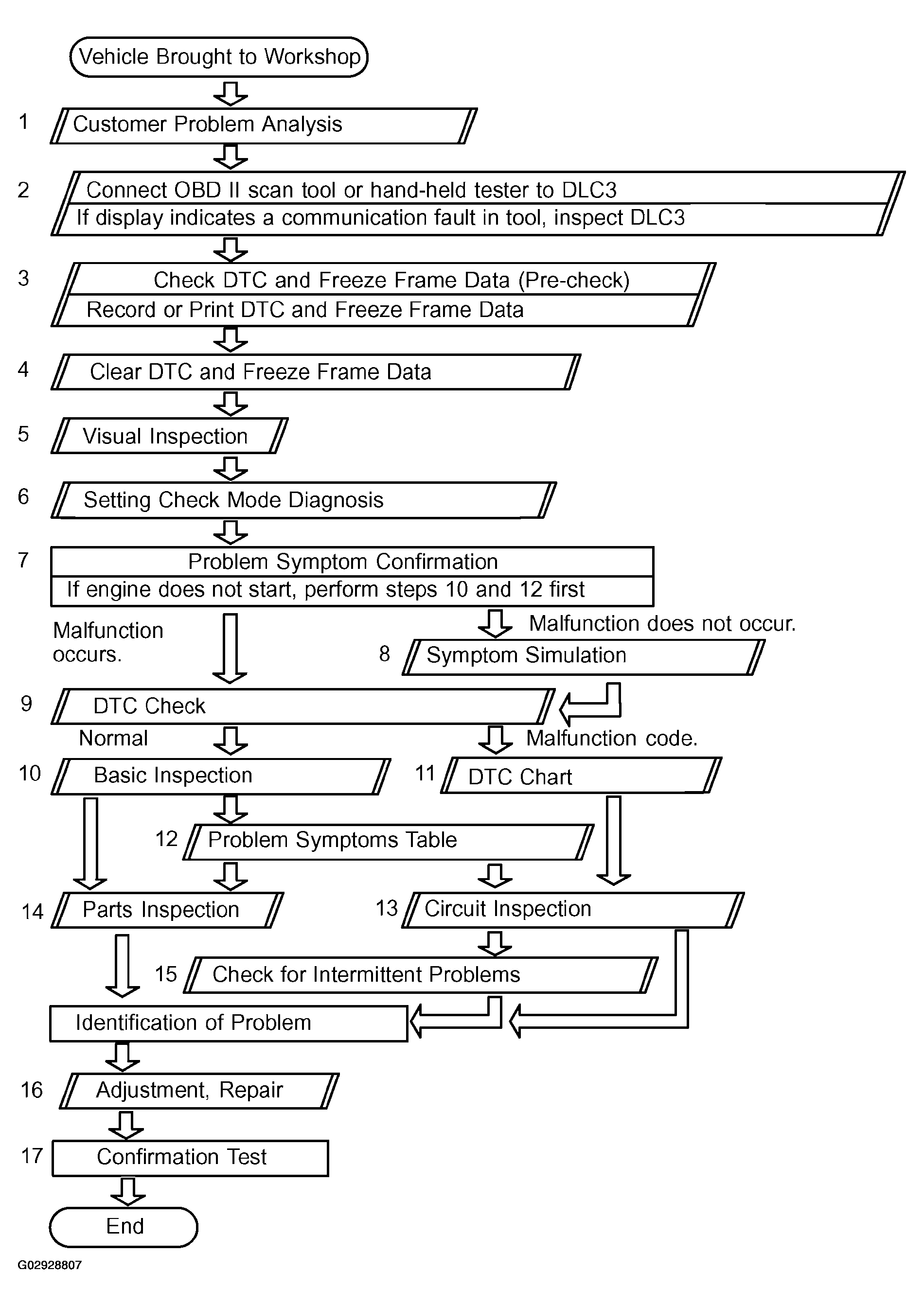

Fig 1: Engine Troubleshooting Procedure
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
