Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

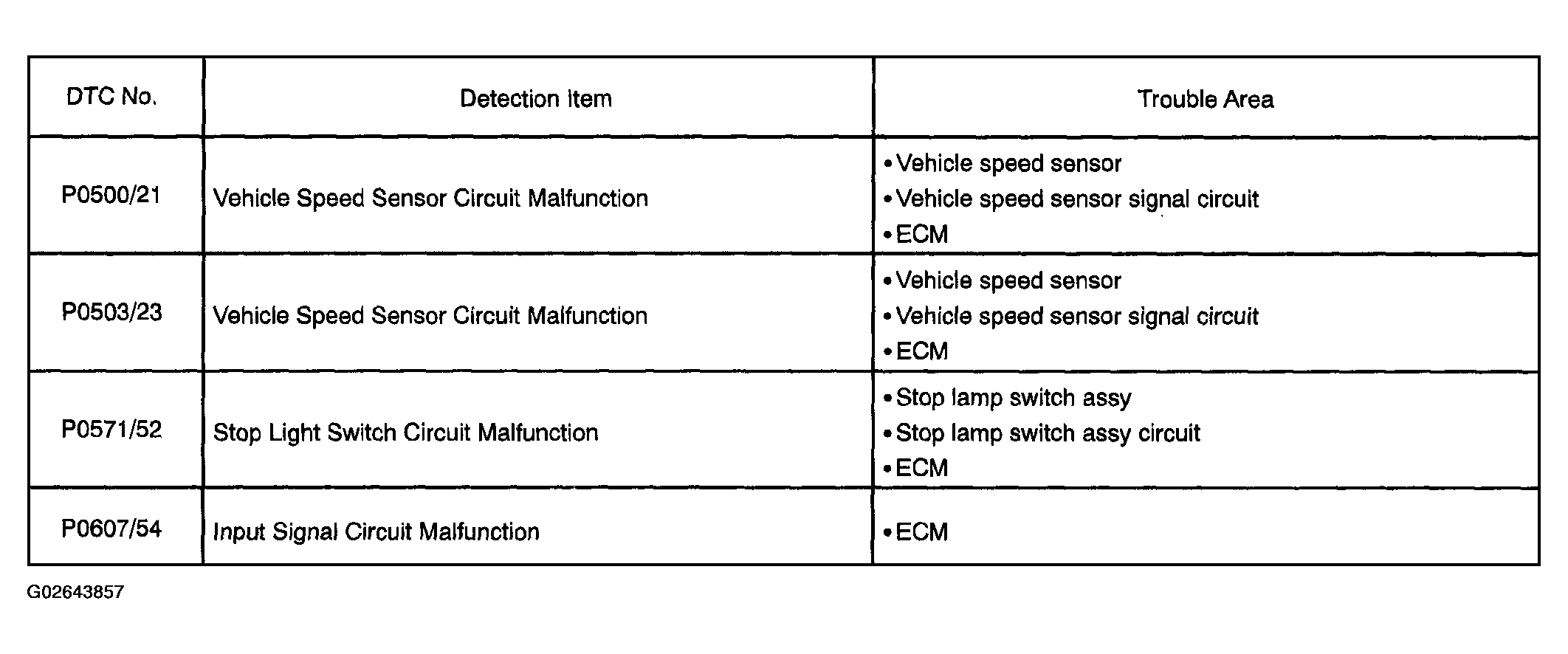

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0500/21, P0503/23 | Vehicle speed sensor circuit malfunction |
| DTC P0571/52 | Stop light switch circuit malfunction |
| DTC P0607/54 | Input signal circuit malfunction |
If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the "See example" under respective "DTC No." in the DIAGNOSTIC TROUBLE CODE CHART .
