Terminals Of ECM: Notes

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

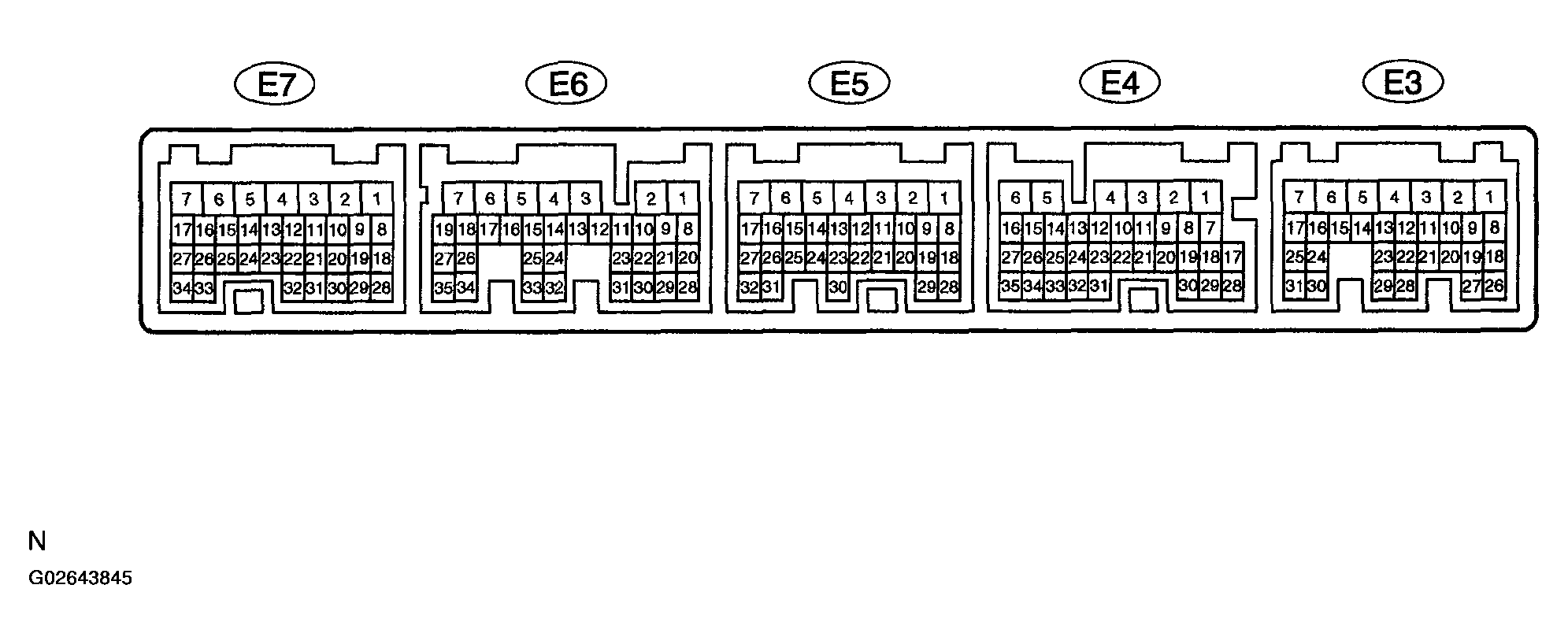

Fig 1: Identifying Terminals Of ECM (1 Of 2)
