Section 509 (Ignition Switch And Key Unlock Warning Switch): Inspection
WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
- Double cab:

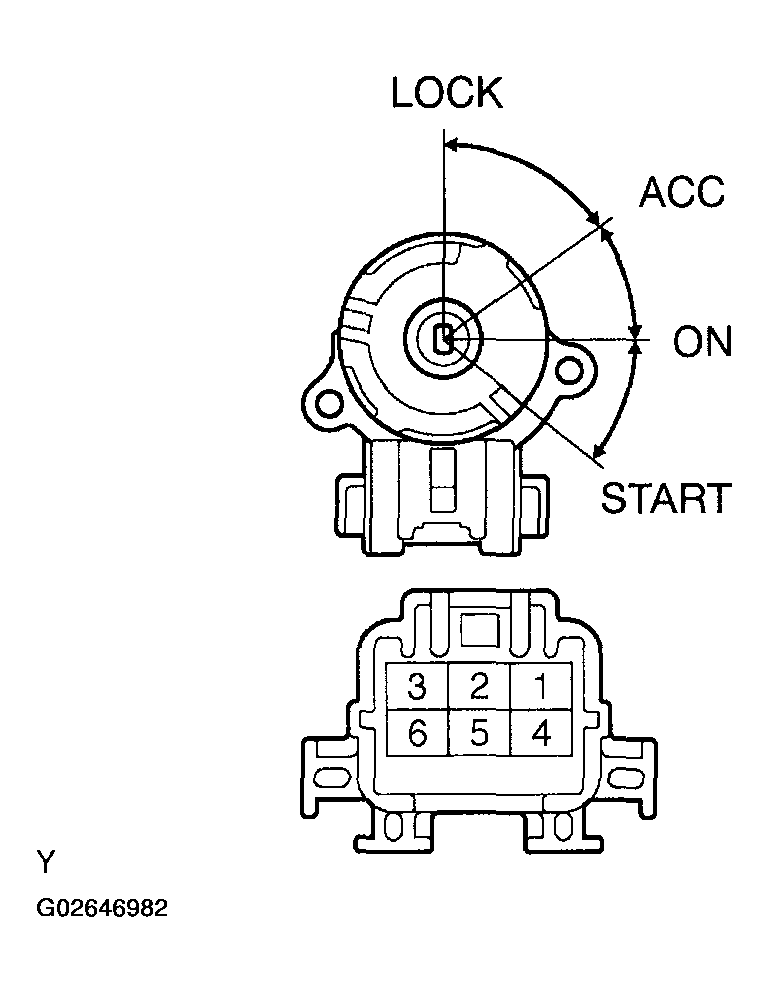

INSPECT IGNITION SWITCH CONTINUITY
SWITCH POSITION AND TESTER CONNECTION SPECIFICATIONSwitch Position Tester Connection Specified Condition ACC 1 - 3 Continuity ON 1 - 2 - 3 - 5 - 6 Continuity START 1 - 2 - 4 - 5 - 6 Continuity If the continuity is not as specified, replace the switch.
- Except double cab:
INSPECT IGNITION SWITCH CONTINUITY
SWITCH POSITION AND TESTER CONNECTION SPECIFICATIONSwitch Position Tester Connection Specified Condition ACC 2 - 3 Continuity ON 2 - 3 - 4 - 6 - 7 Continuity START 1 - 2 - 4 - 6 - 7 - 8 Continuity If the continuity is not as specified, replace the switch.
- INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY SWITCH POSITION AND TESTER CONNECTION SPECIFICATION
Switch Position Tester Connection Specified Condition Switch not pushed (Key removed) 1 - 2 No continuity Switch pushed (Key inserted) 1 - 2 Continuity If the continuity is not as specified, replace the switch.
