Section 518 (Combination Meter): Circuit

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

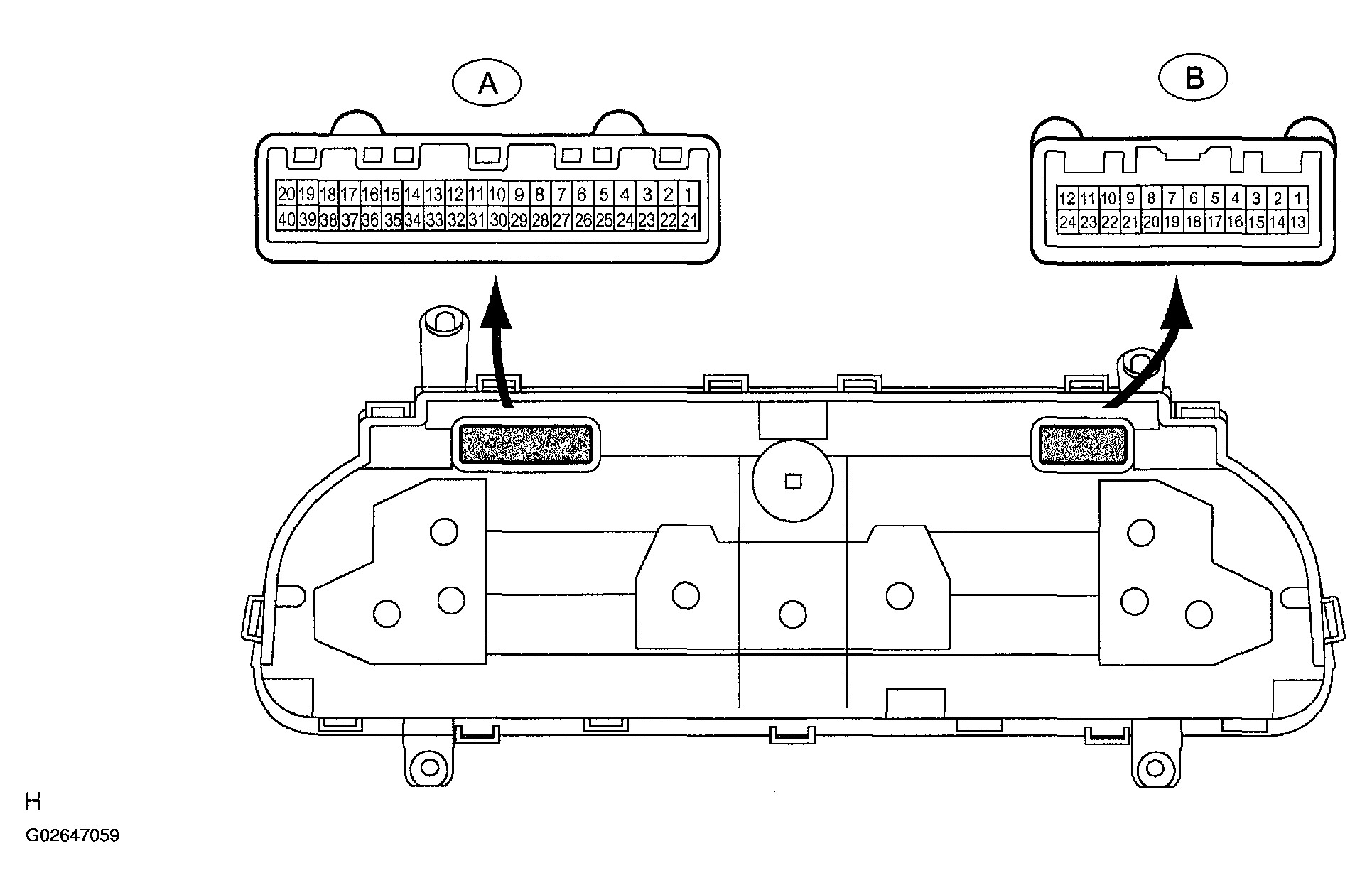

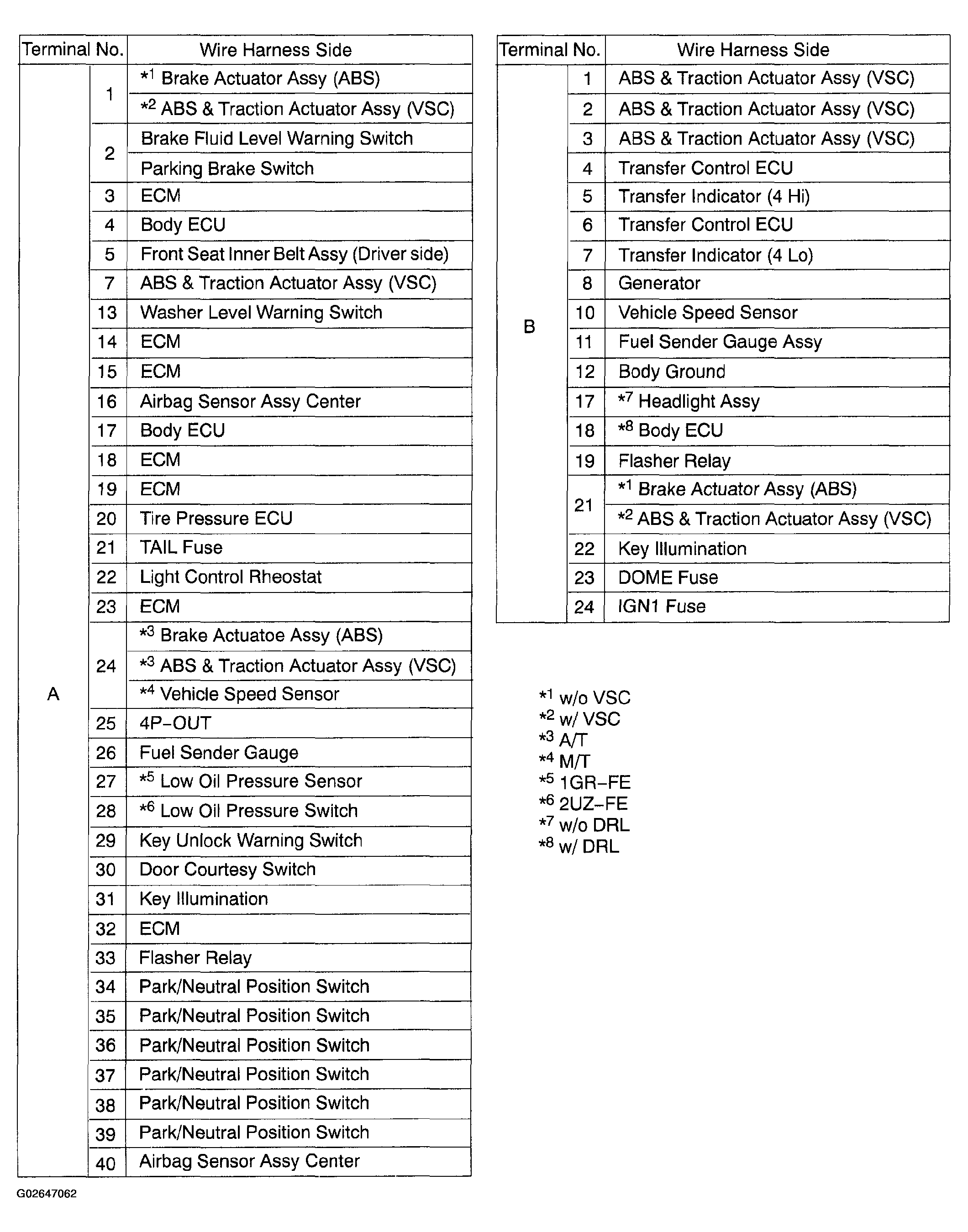

Fig 1: Identifying Combination Meter Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

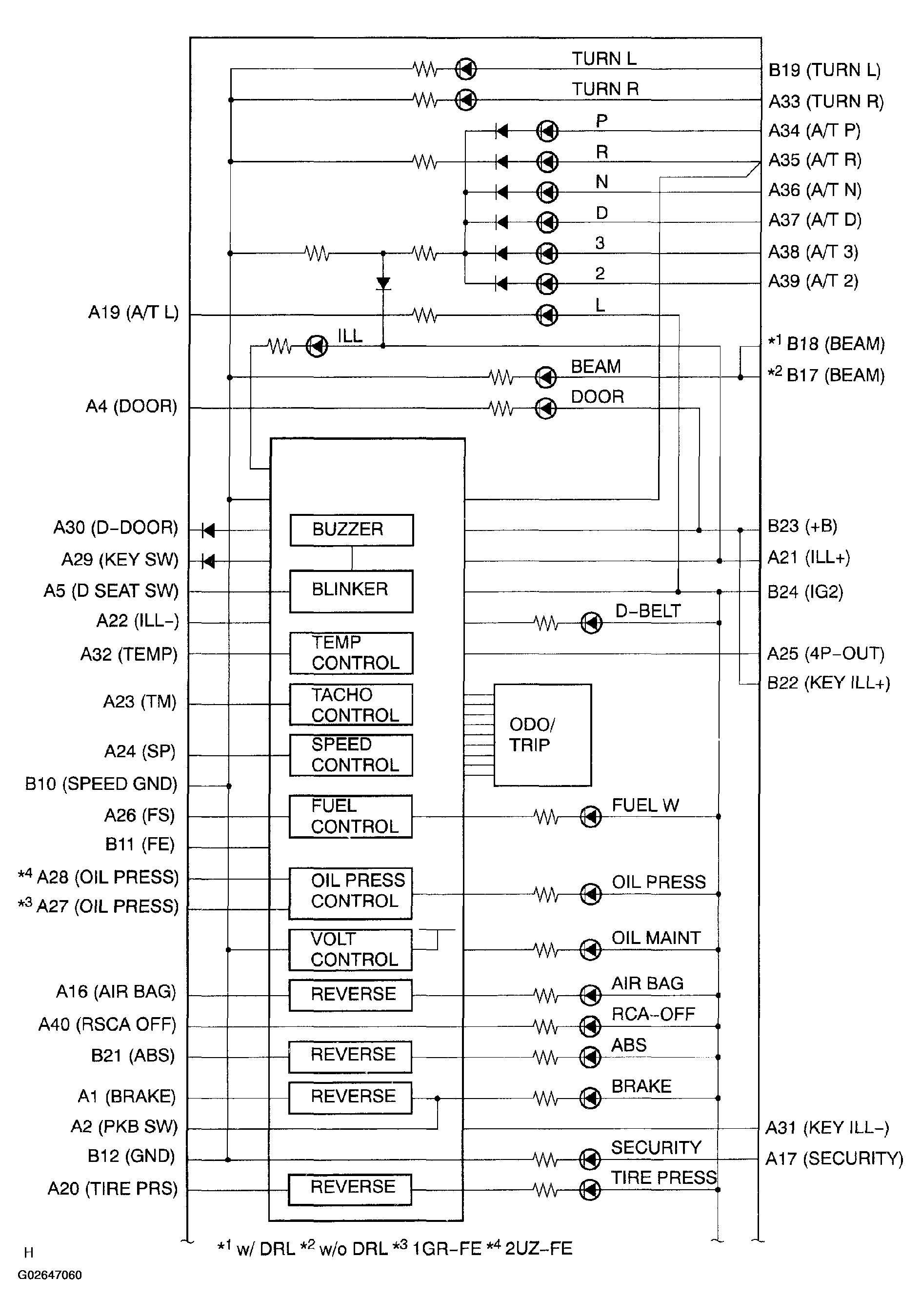

Fig 2: Combination Meter Circuit Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

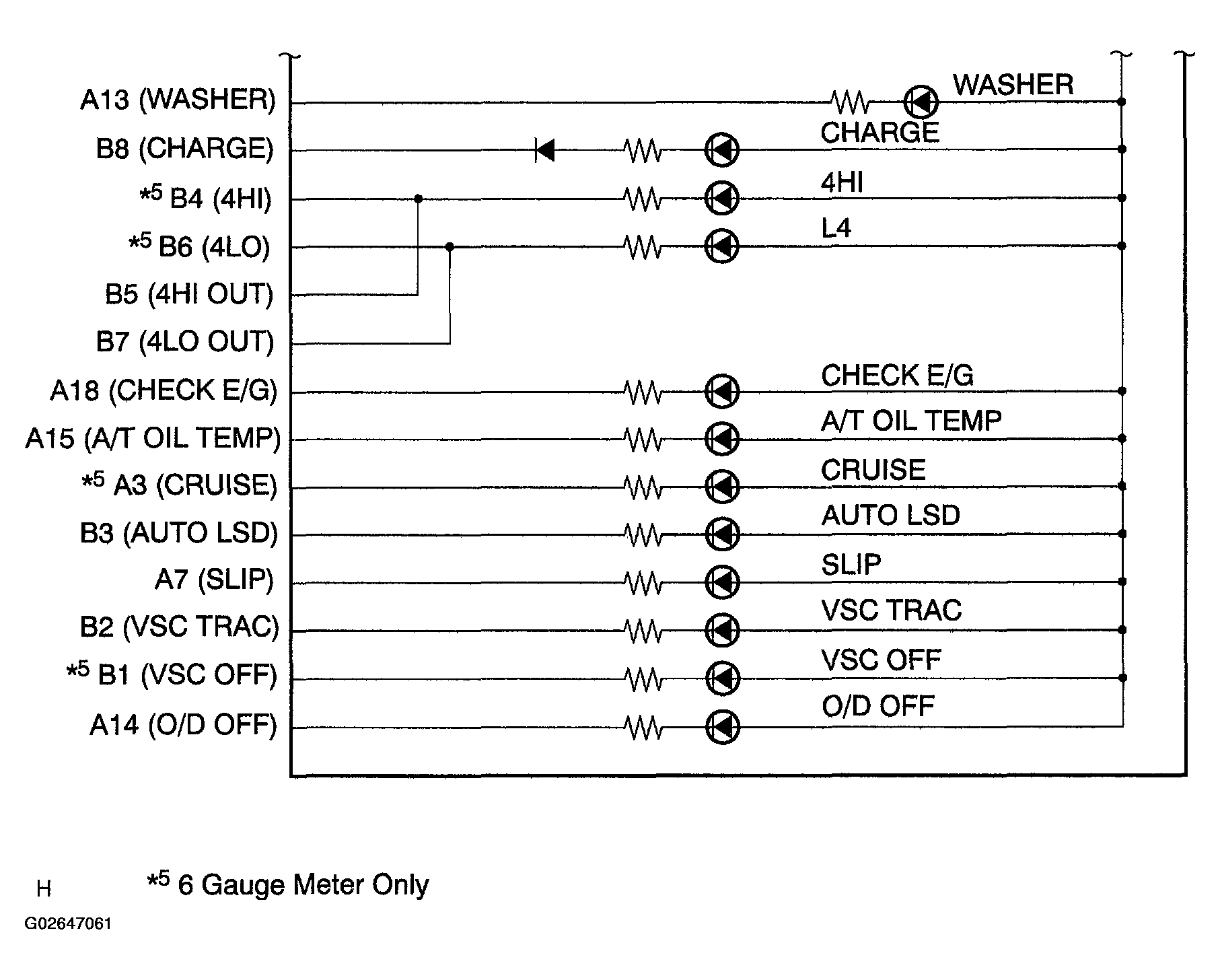

Fig 3: Combination Meter Circuit Wiring Diagram (2 Of 3)

Fig 4: Combination Circuit Wiring Diagram (3 Of 3)
