Auto Up/Down Function Does Not Operate: Wiring Diagram

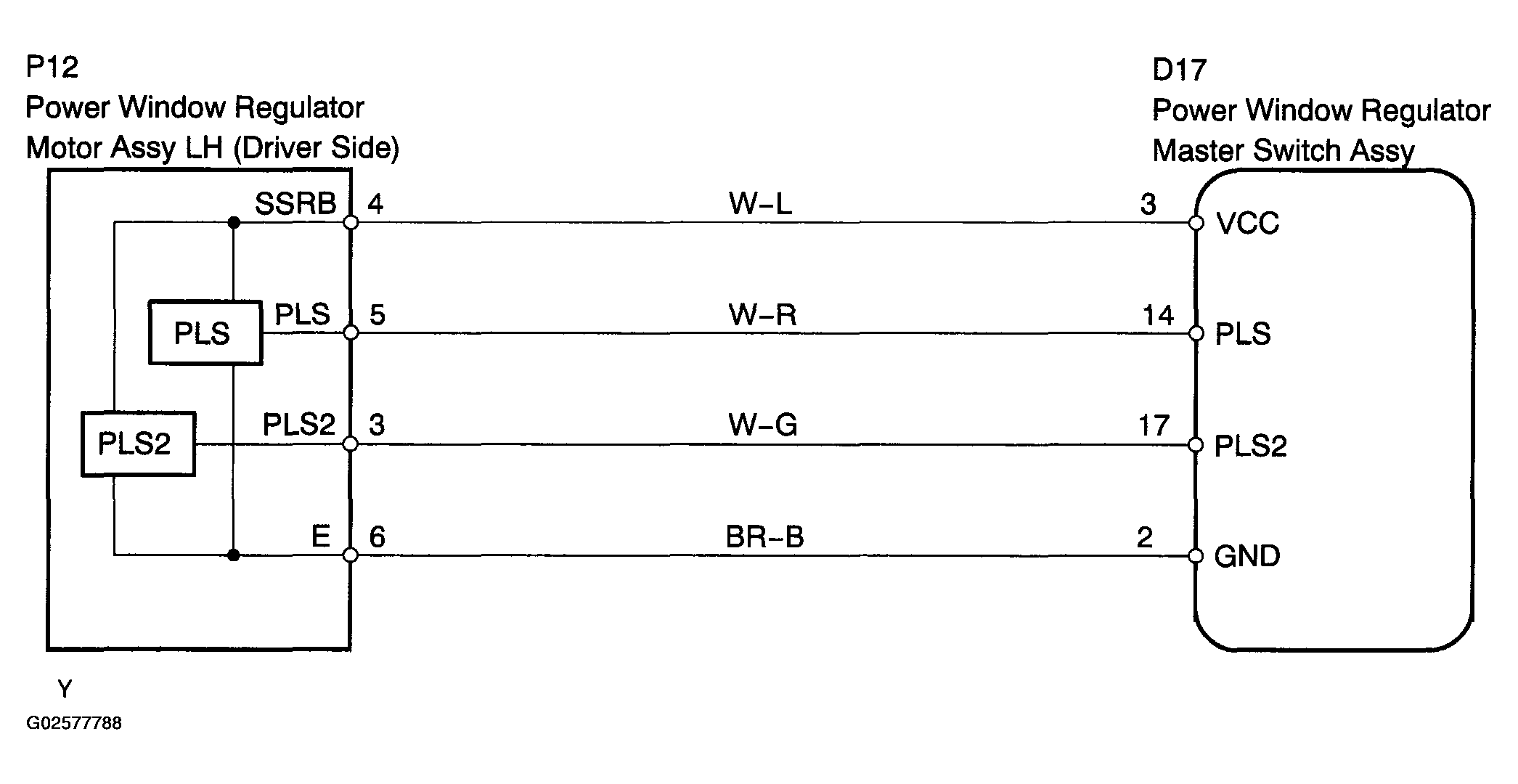

Fig 1: Wiring Diagram Between Power Window Regulator Motor Assy (Driver Side) And Power Window Master Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
