2005
›
4Runner Limited, 4.7 T, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Window Control System - Diagnostics
›
Remote Up/Down Function Does Not Operate
›
Wiring Diagram
Remote Up/Down Function Does Not Operate: Wiring Diagram

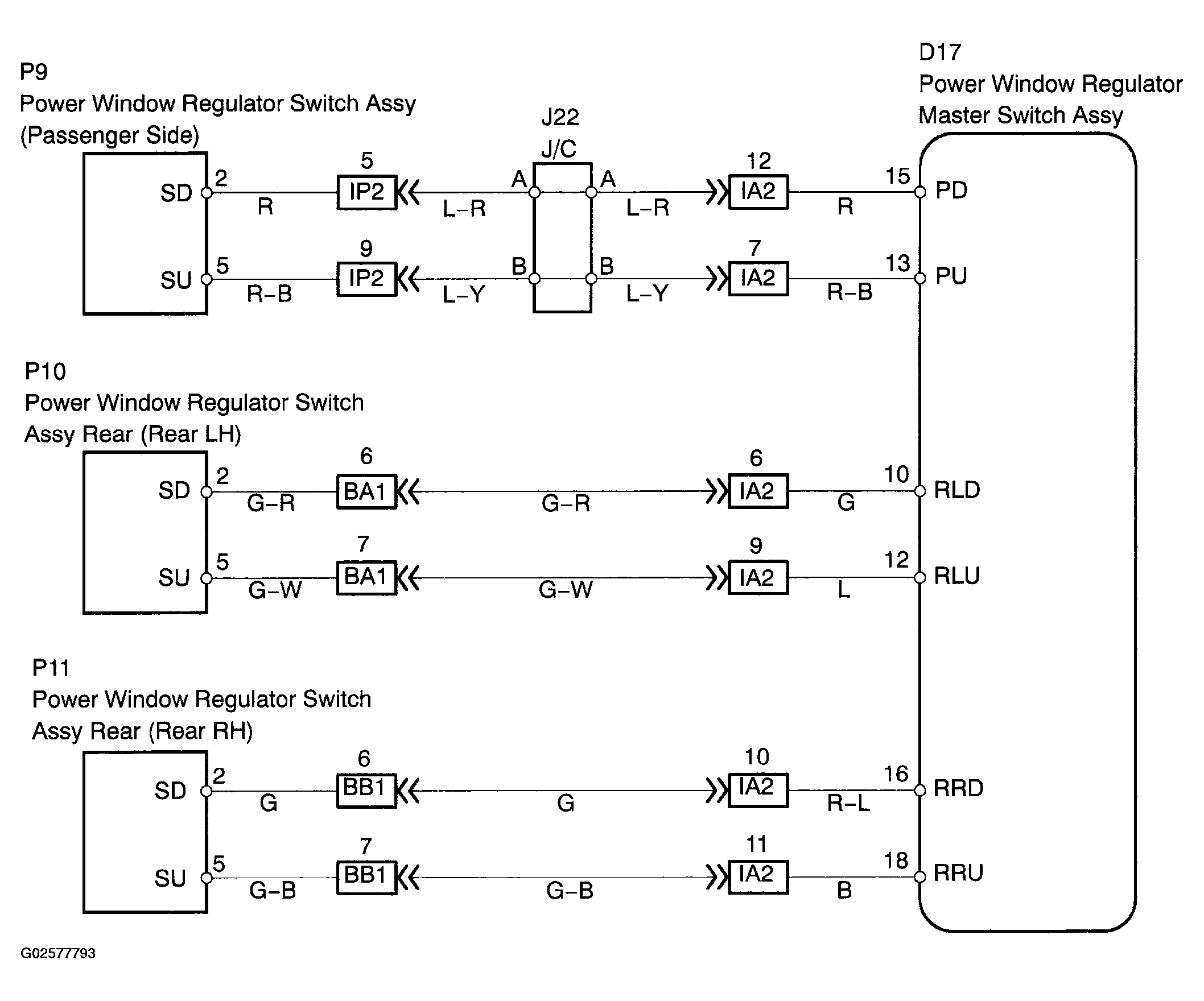

Fig 1: Wiring Diagram Between Power Window Master Switch And Applicable Power Window Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
