Accelerator Pedal Rod ASSY (2UZ-FE): Replacement

  1. REMOVE ACCELERATOR PEDAL ROD ASSY
    1. Disconnect a accelerator pedal connector.
    2. Remove the 2 nuts and accelerator pedal assy.

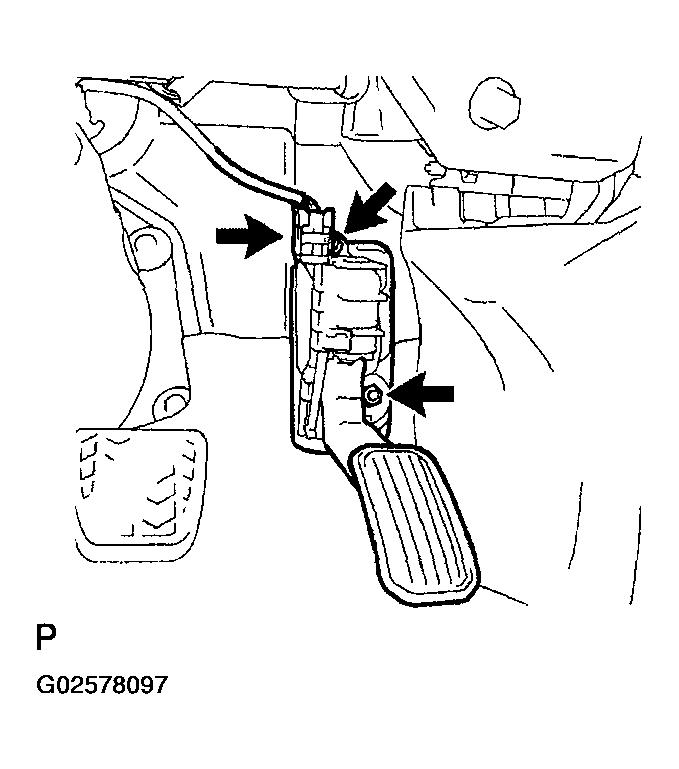

    Fig 1: Removing Accelerator Pedal Rod Assy
    G02578097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ACCELERATOR PEDAL ROD ASSY
    NOTE:
    • Be care not to give a shock to the accelerator pedal assy.
    • Be care not to disassemble the accelerator pedal assy.
    1. Install the accelerator pedal assy with the 2 nuts.

      Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

    2. Connect a accelerator pedal connector.
