Throttle W/Motor Body ASSY (1GR-FE)
›
Components
Throttle W/Motor Body ASSY (1GR-FE): Components

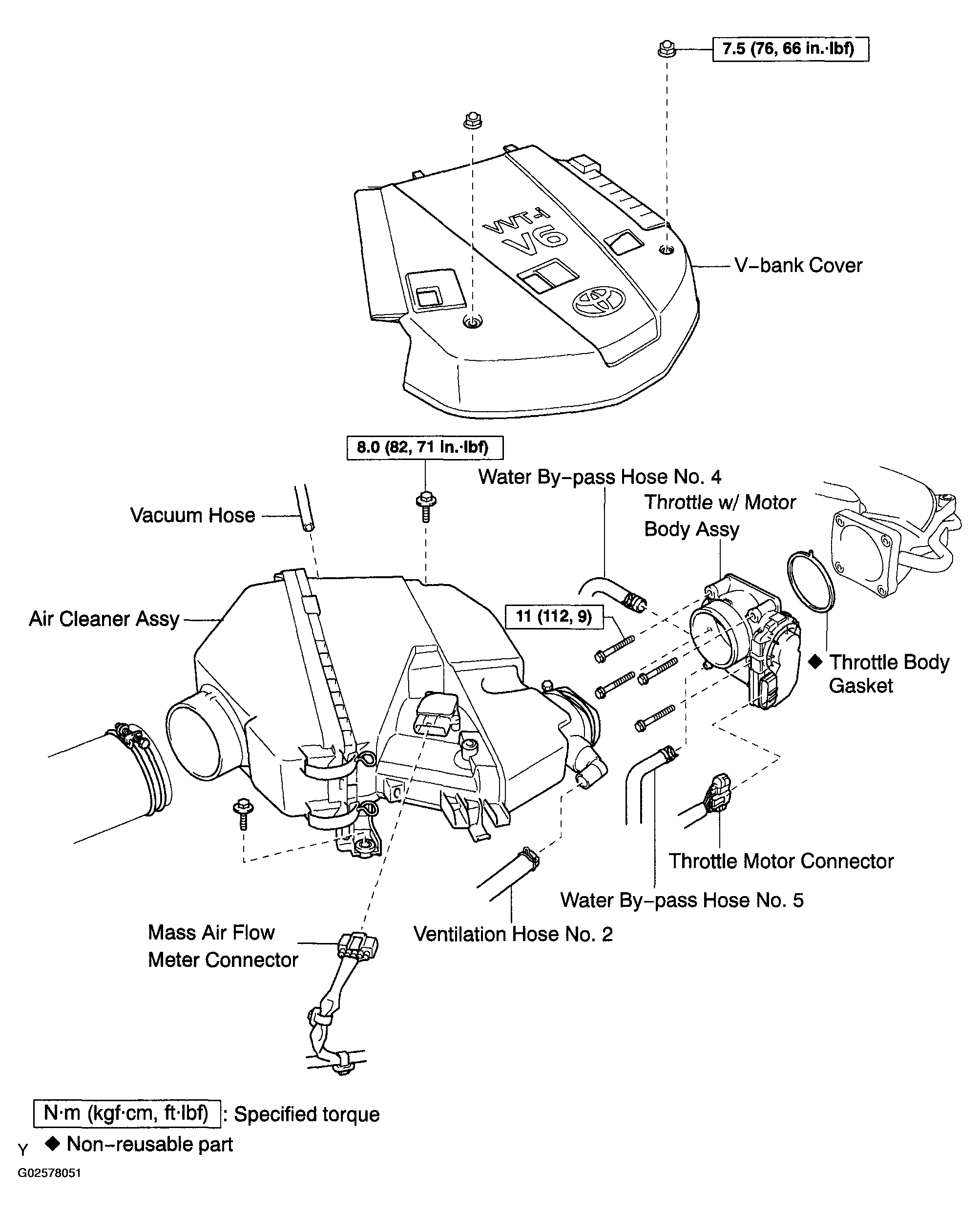

Fig 1: Identifying W/Motor Body Assy Components (1GR-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
