Throttle W/Motor Body ASSY (2UZ-FE): Components

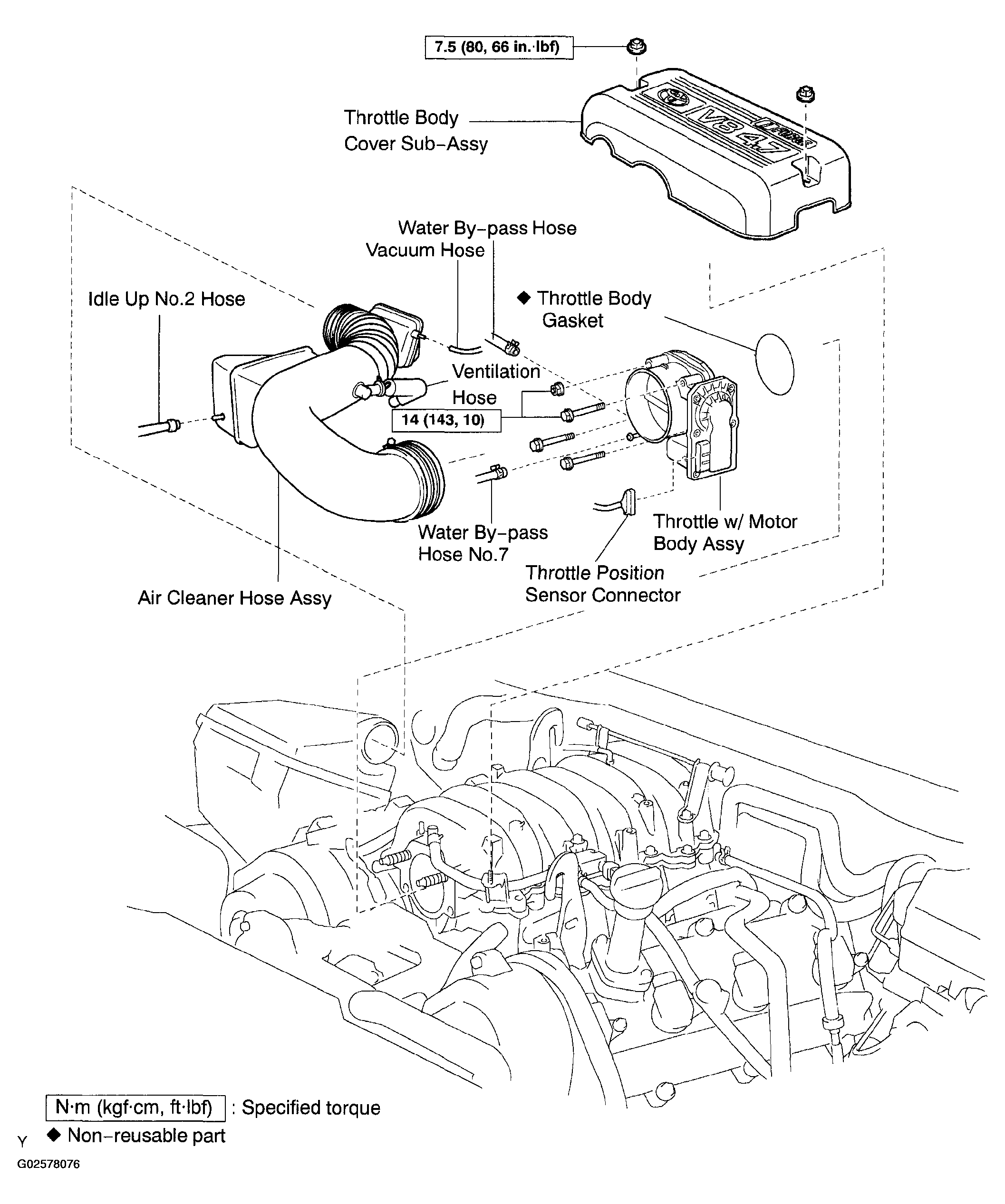

Fig 1: Identifying Throttle W/Motor Body Components (2UZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
