Camshaft Position Sensor (2UZ-FE): Replacement

  1. DRAIN ENGINE  COOLANT (2UZ-FE)
  2. REMOVE THROTTLE BODY COVER SUB-ASSY (SEE  REPLACEMENT  )
  3. REMOVE  REPLACEMENT
  4. REMOVE OIL COOLER PIPE (SEE  REPLACEMENT  )
  5. REMOVE TIMING BELT COVER SUB-ASSY NO. 3 LH (SEE  REPLACEMENT  )
  6. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.
    2. Remove the bolt, stud bolt and camshaft position sensor.

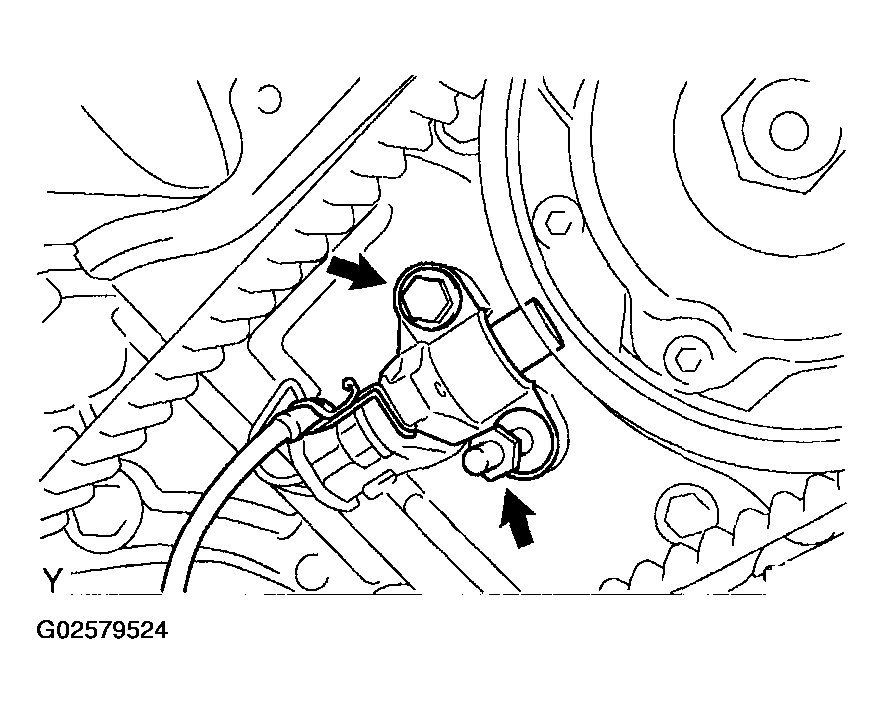

    Fig 1: Removing Camshaft Position Sensor
    G02579524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CAMSHAFT POSITION SENSOR
    1. Install the camshaft position sensor with the bolt and stud bolt.

      Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

  8. INSTALL TIMING BELT COVER SUB-ASSY NO. 3 LH (SEE  REPLACEMENT  )
  9. INSTALL OIL COOLER PIPE (SEE  REPLACEMENT  )
  10. INSTALL  REPLACEMENT
  11. REFILL ENGINE  COOLANT (2UZ-FE)
  12. CHECK FOR ENGINE COOLANT LEAKS (SEE  COOLANT (2UZ-FE)  )
  13. INSTALL THROTTLE BODY COVER SUB-ASSY (SEE  REPLACEMENT  )
