Crank Position Sensor (2UZ-FE): Replacement

  1. REMOVE ENGINE UNDER COVER ASSY REAR
  2. REMOVE CRANK POSITION SENSOR
    1. Disconnect the crank position sensor connector.
    2. Remove the bolt and crankshaft position sensor.

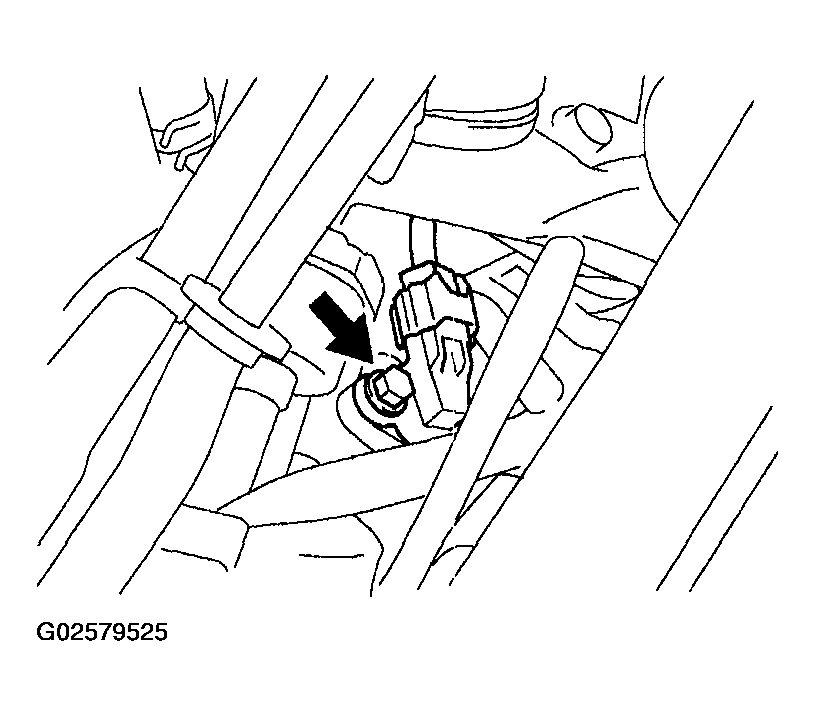

    Fig 1: Removing Crank Position Sensor
    G02579525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CRANK POSITION SENSOR
    1. Install crank position sensor with bolt.

      Torque: 6.5 N.m (65 kgf.cm, 58 in.lbf)

  4. INSTALL ENGINE UNDER COVER ASSY REAR
