Recommended Tools

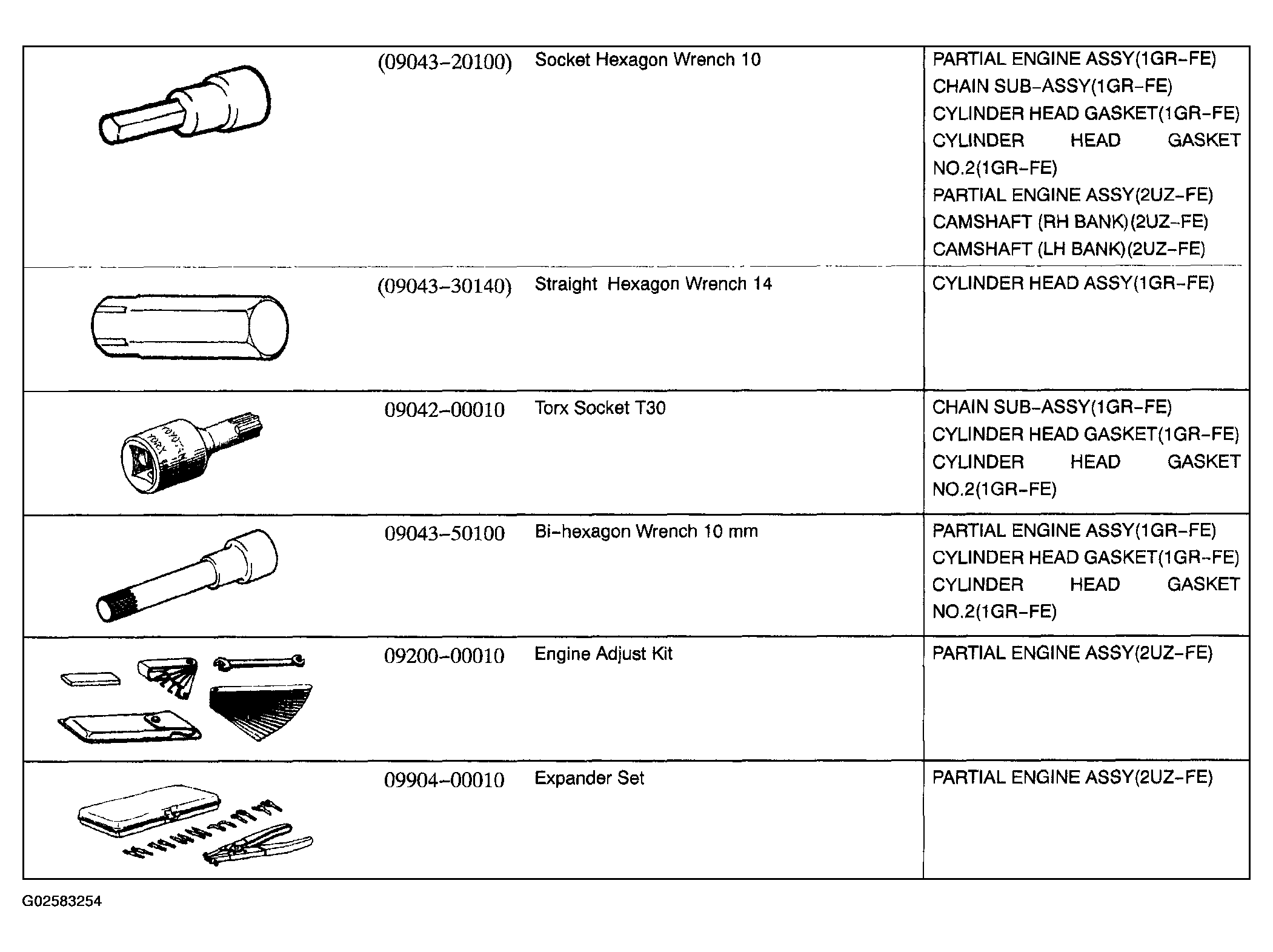

Fig 1: Identifying Recommended Tools - Engine Mechanical (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

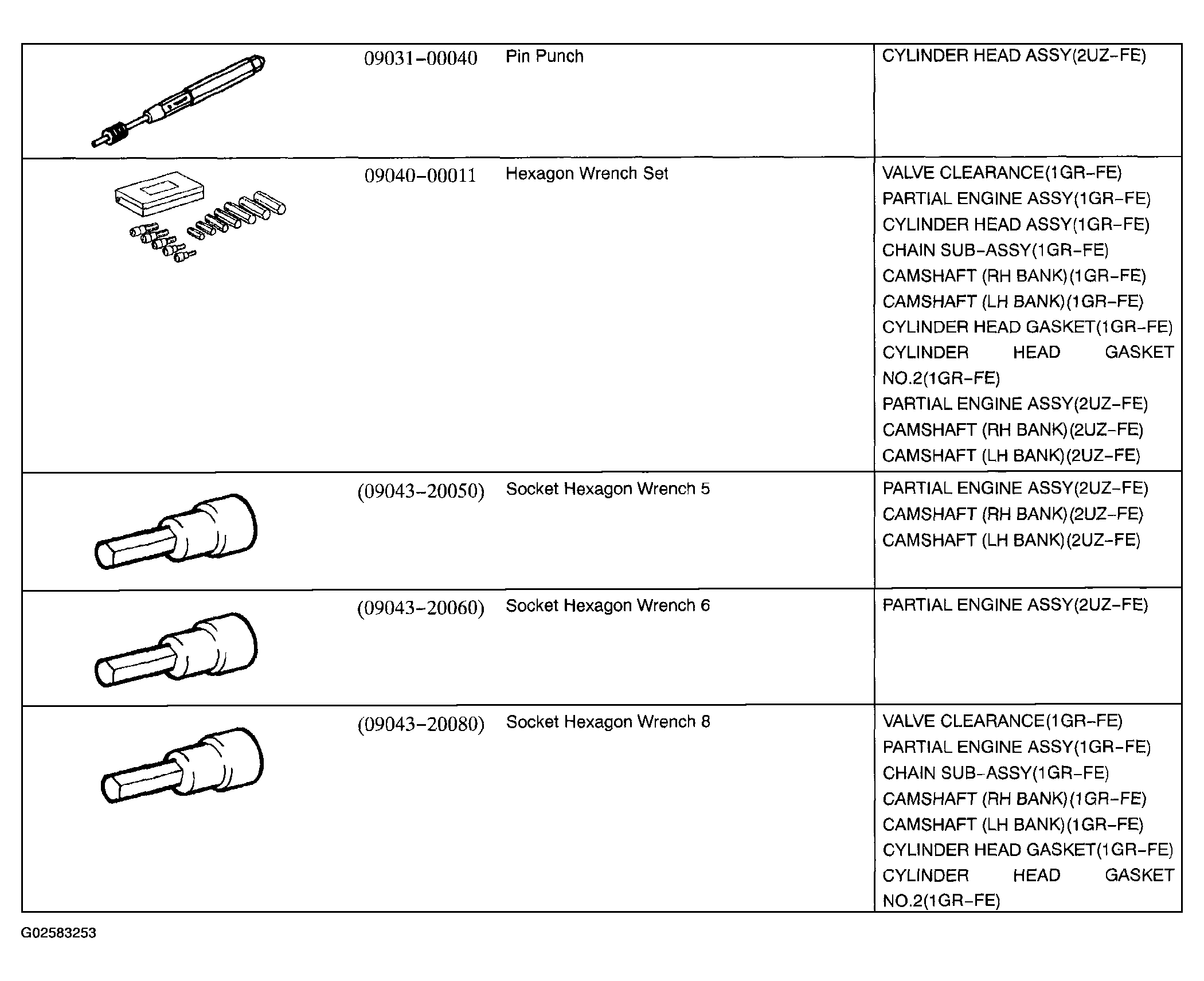

Fig 2: Identifying Recommended Tools - Engine Mechanical (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.
