Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

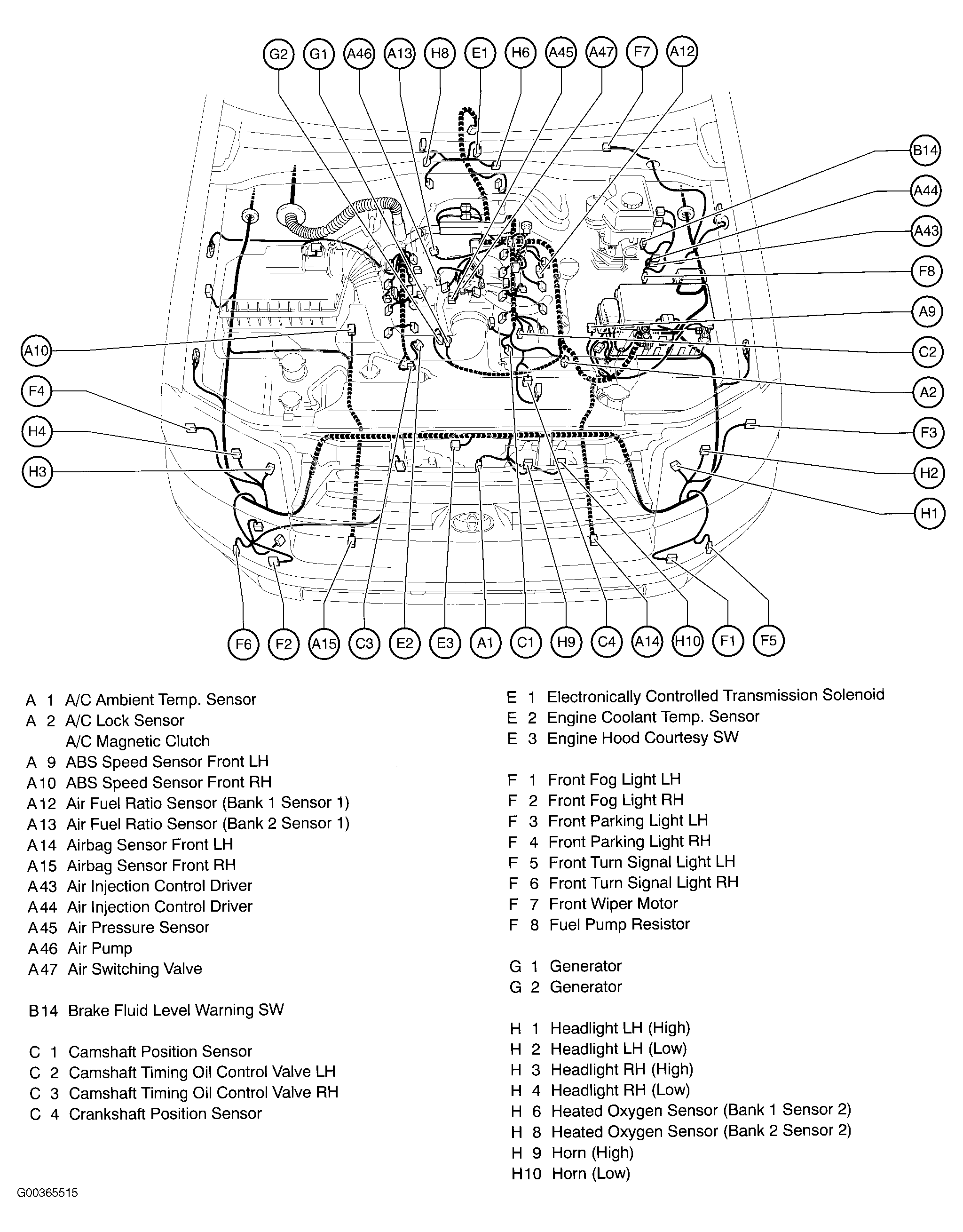

Fig 1: Engine Compartment (4.7L)

G00365515

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

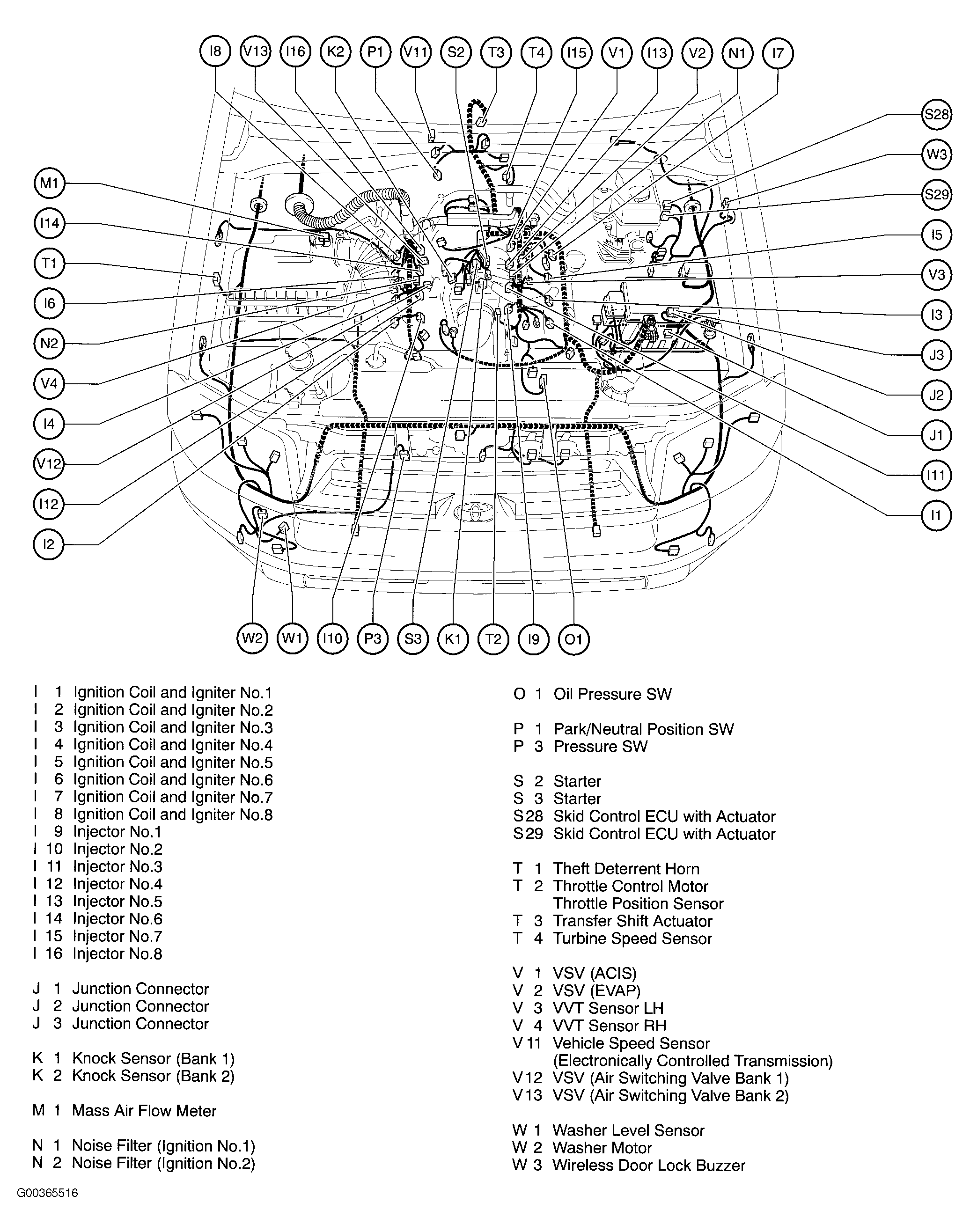

Fig 2: Engine Compartment (4.7L)

G00365516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

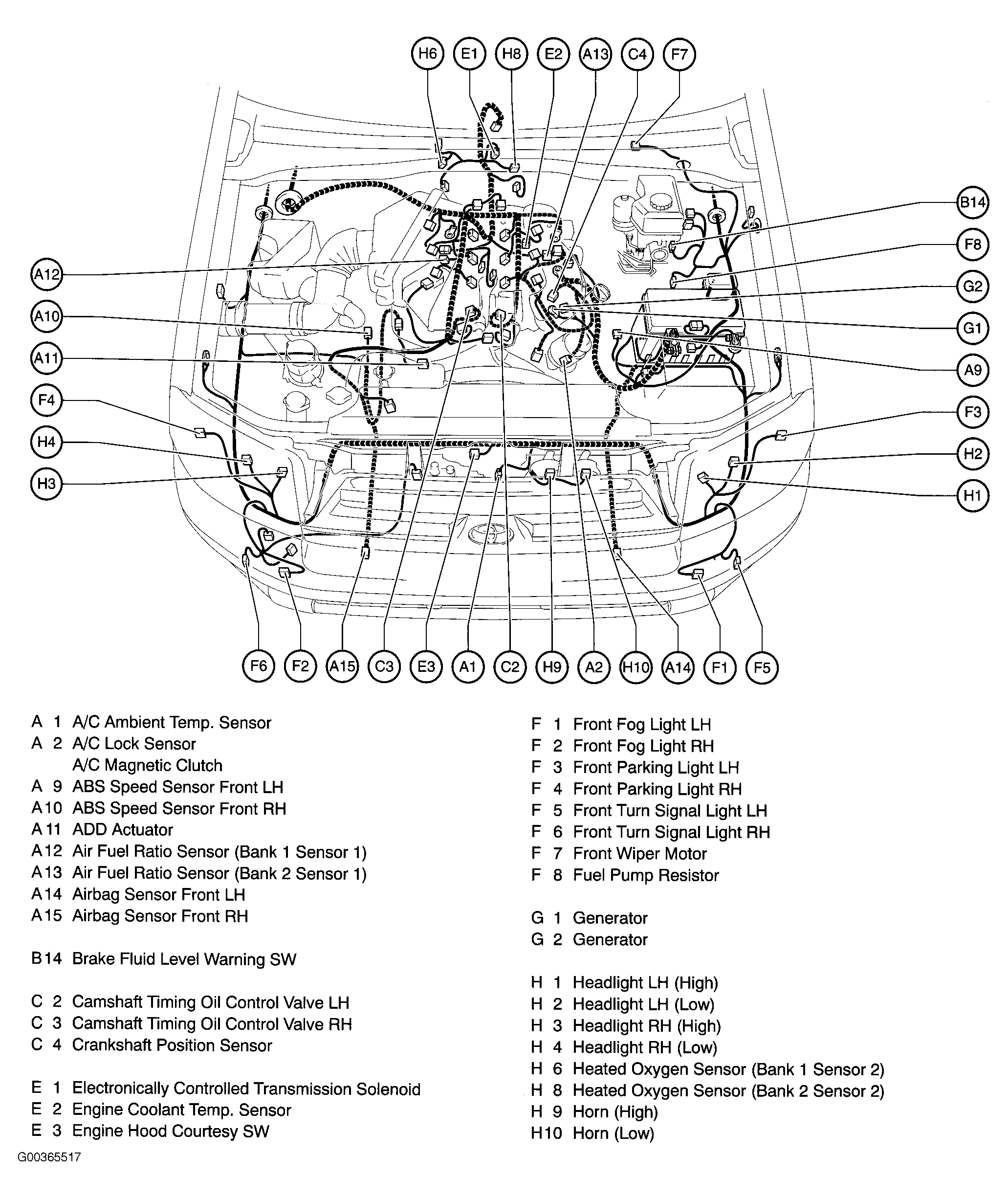

Fig 3: Engine Compartment (4.0L)

G00365517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

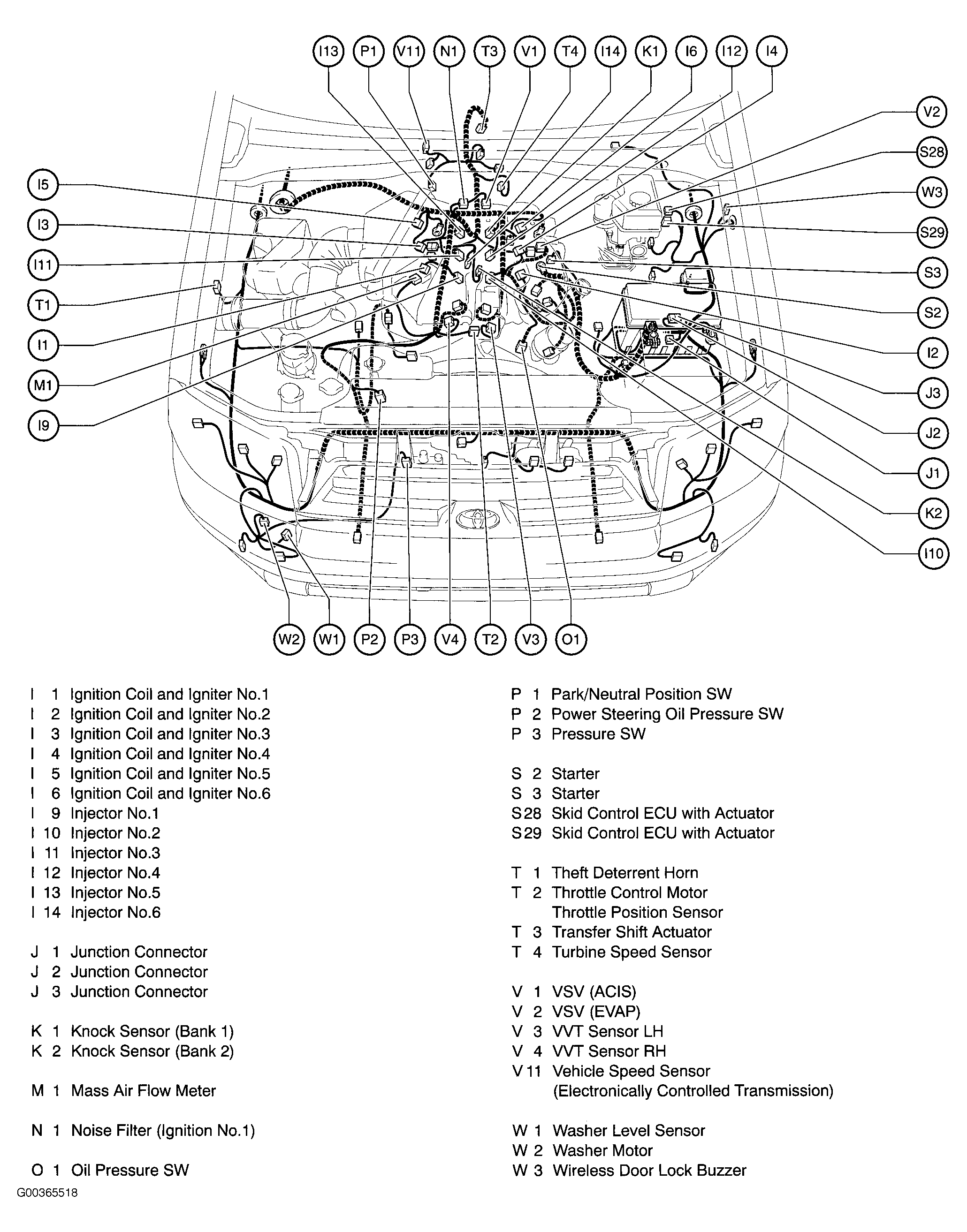

Fig 4: Engine Compartment (4.0L)

G00365518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash

G00365519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

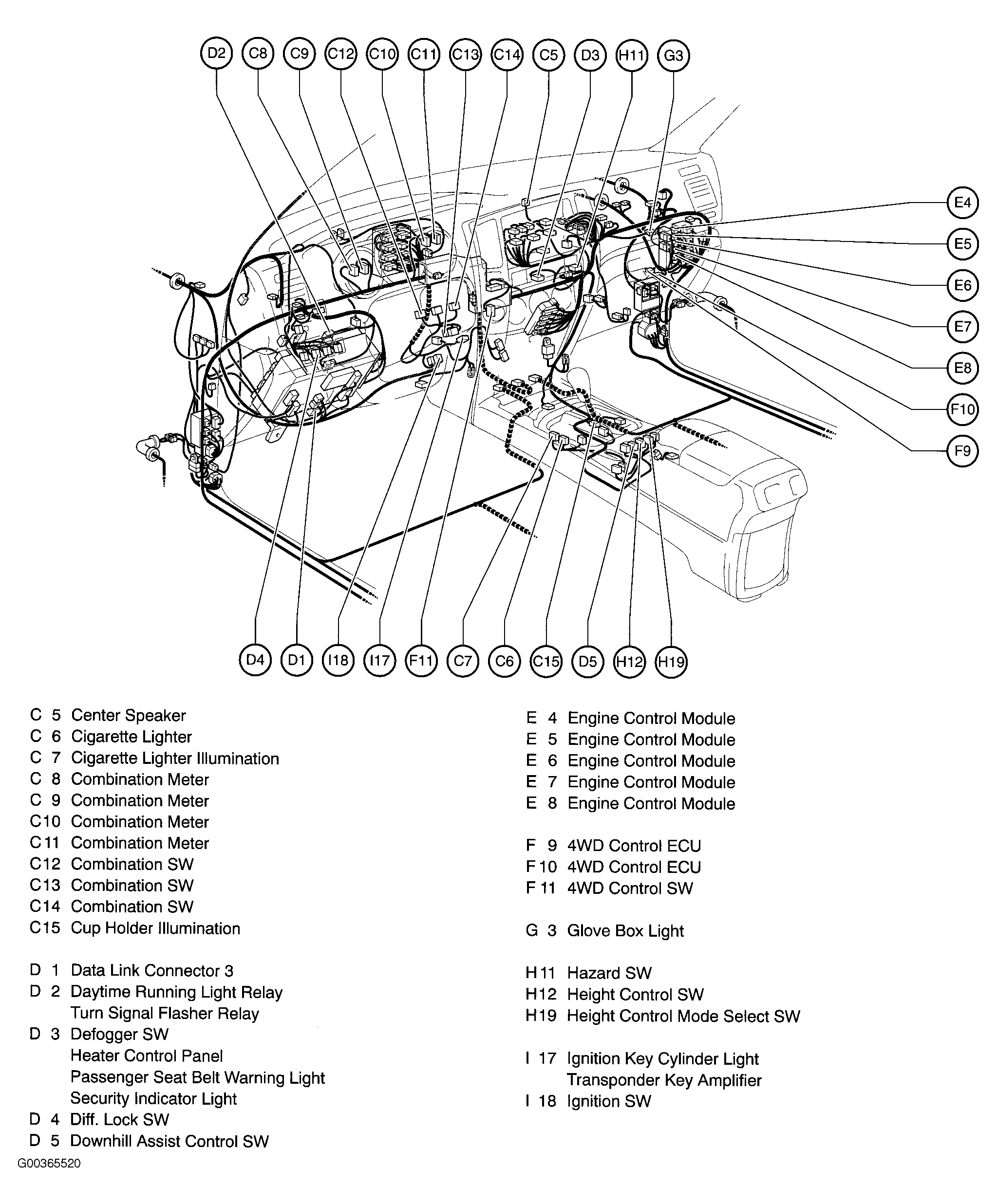

Fig 6: Dash

G00365520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Dash

G00365521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Dash

G00365522

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

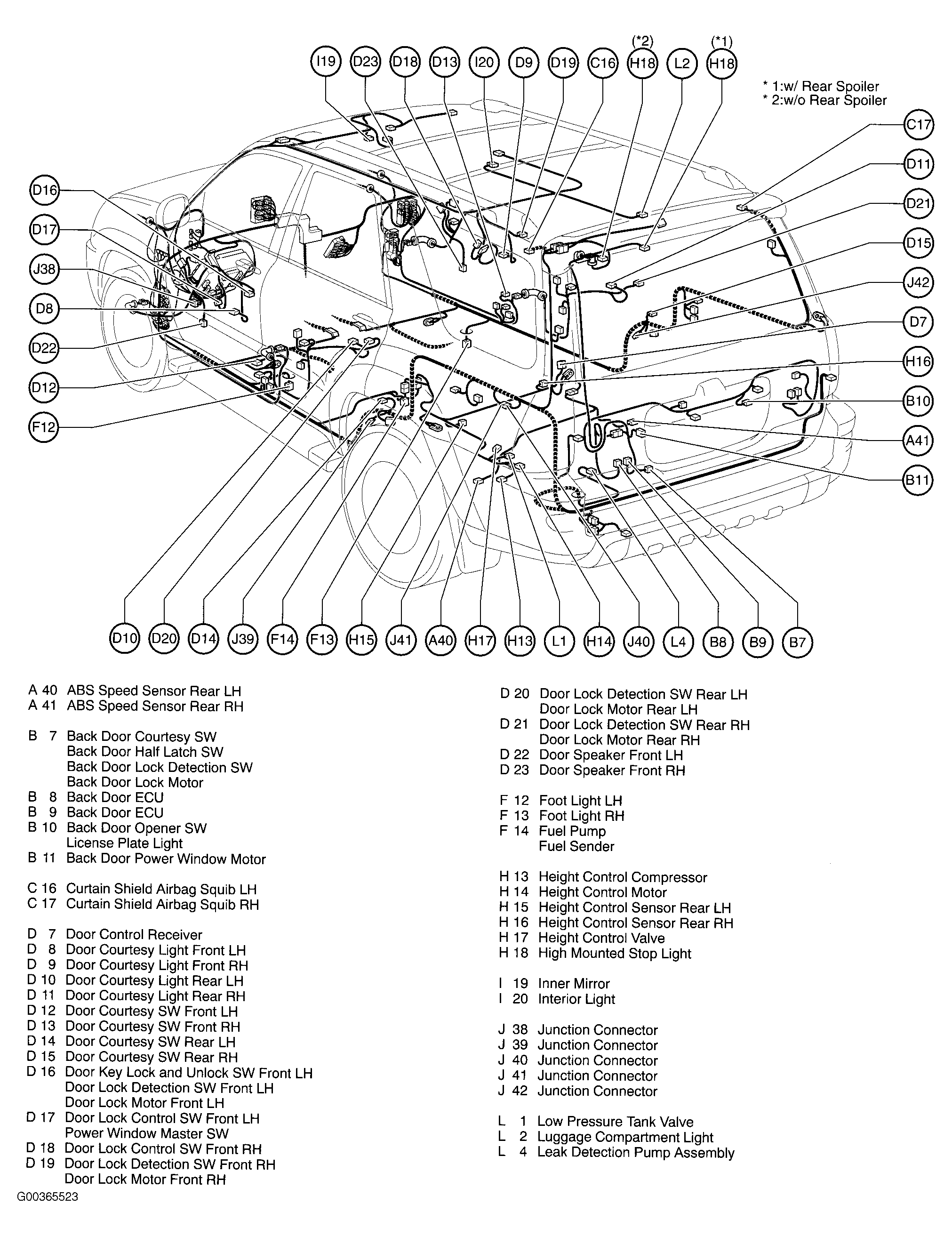

Fig 9: Vehicle Overview

G00365523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

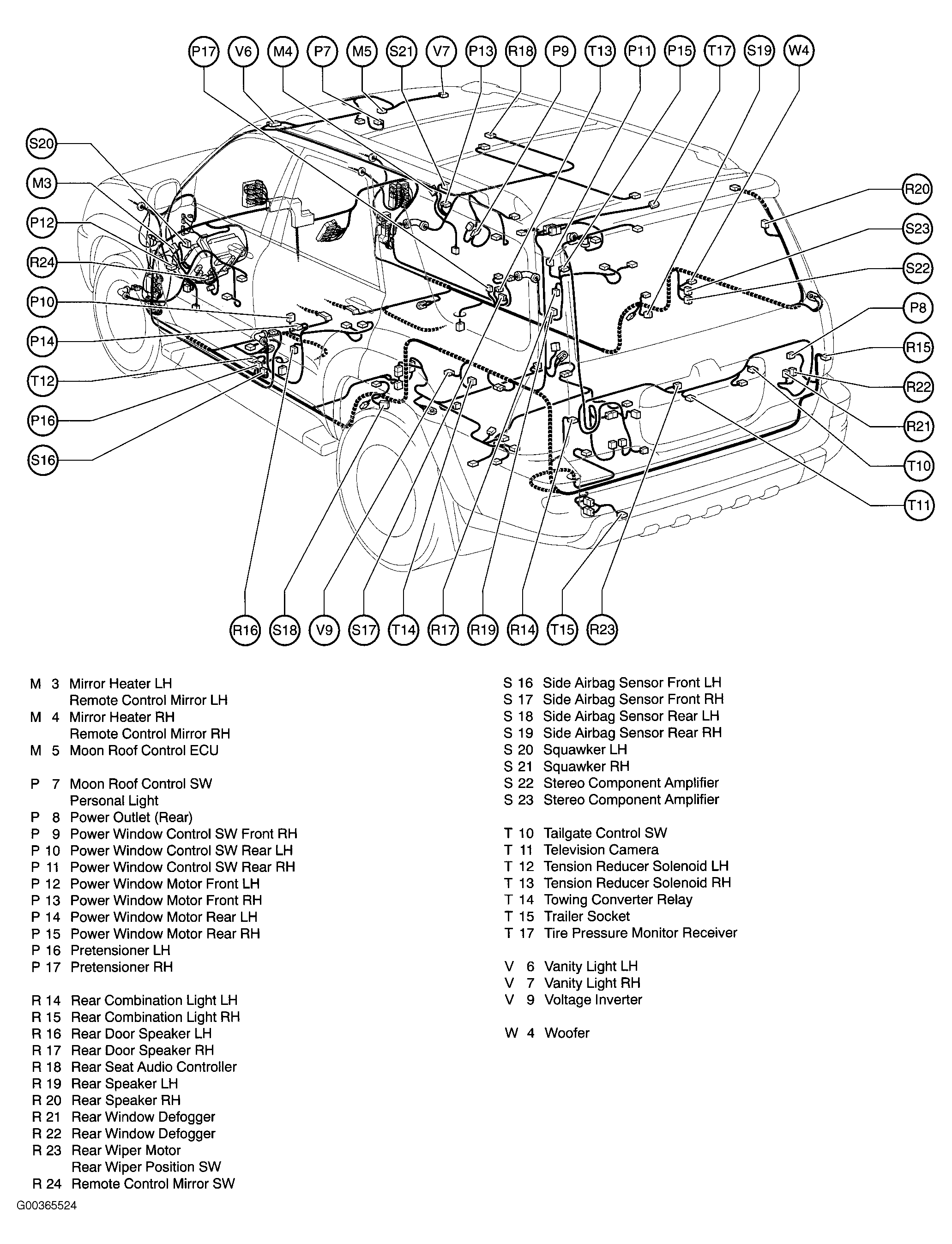

Fig 10: Vehicle Overview

G00365524

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

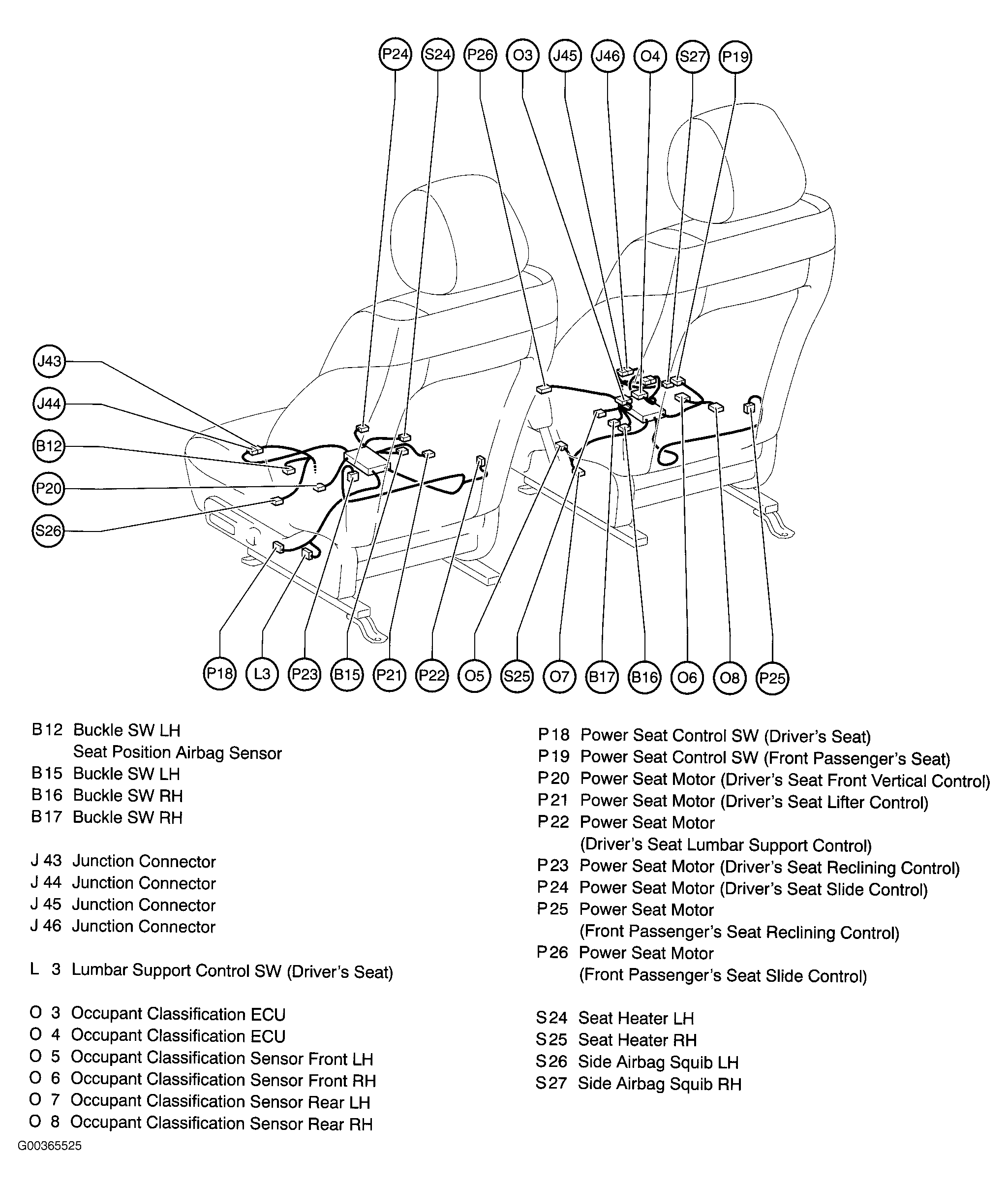

Fig 11: Front Seats (Power Seats)

G00365525

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Compartment (4.7L)

G00365527

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Compartment (4.0L)

G00257752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

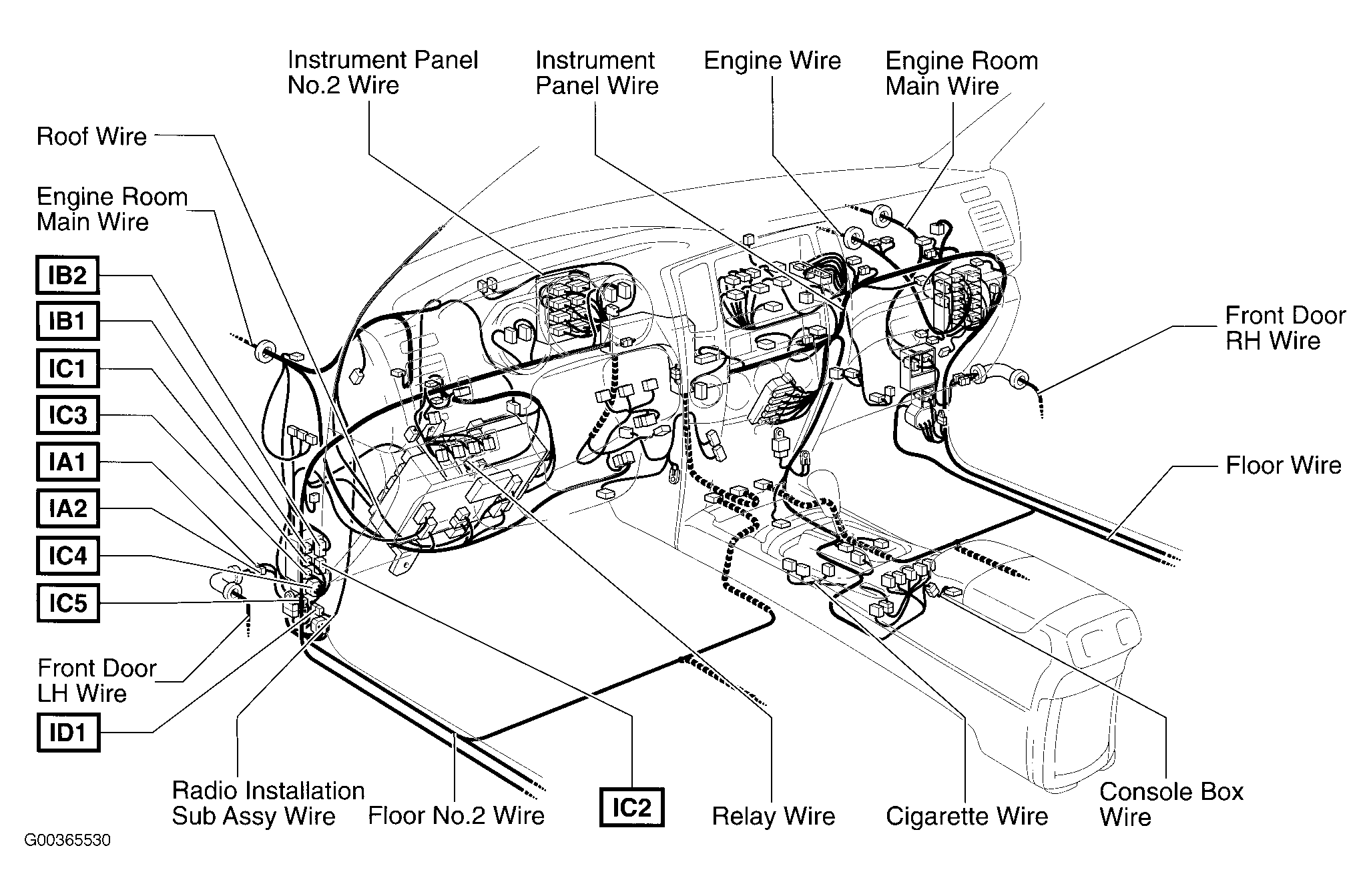

Fig 14: Dash

G00365530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Dash

G00257754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

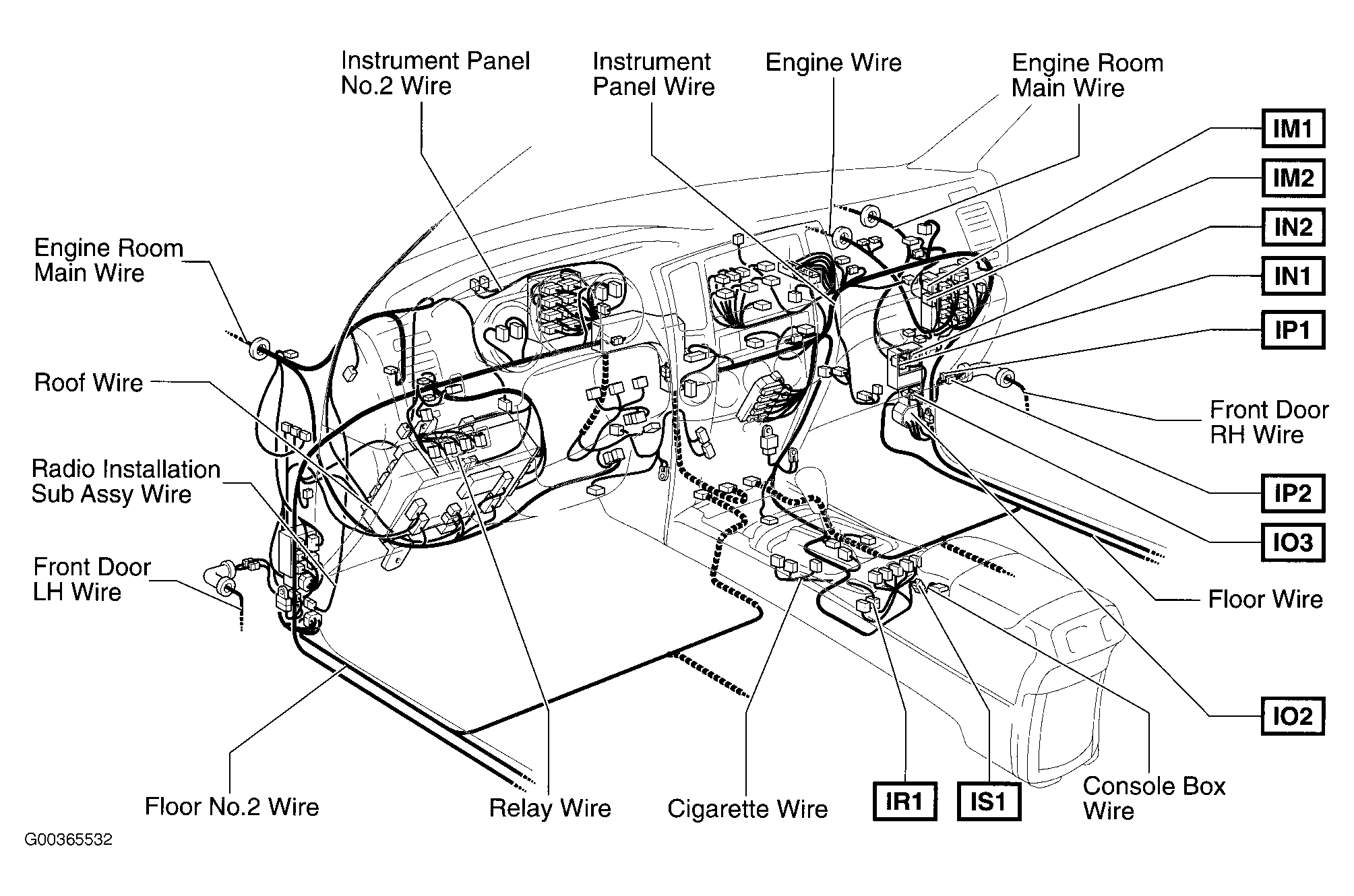

Fig 16: Dash

G00365532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Vehicle Overview

G00257756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Compartment

G00365511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Vehicle Overview

G00365534

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Dash

G00365512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Engine Room R/B

G00365514

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Engine Room R/B No. 3

G00262561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Engine Room R/B No. 4

G00262594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Driver Side J/B

G00262596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

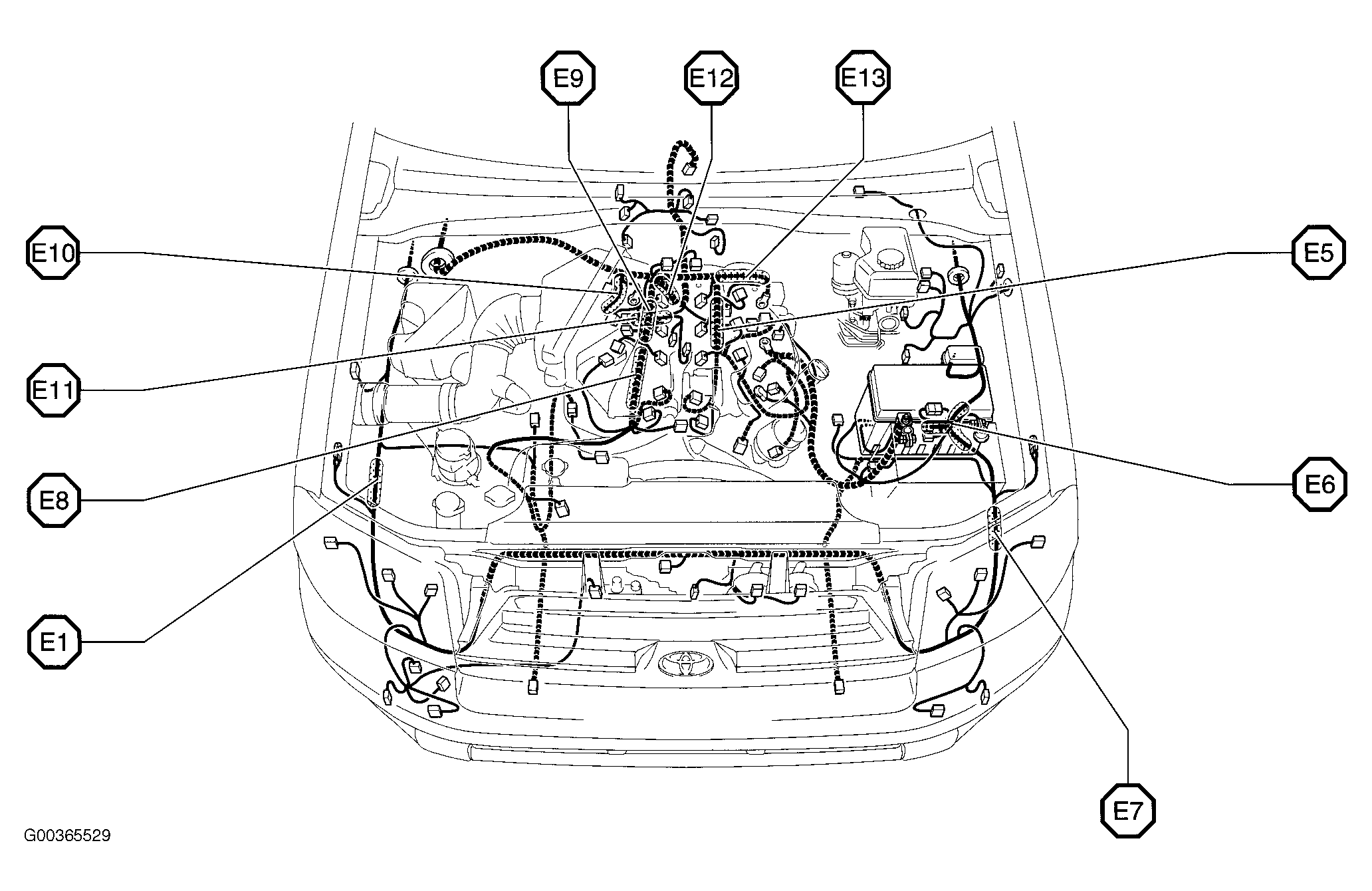

Fig 25: Engine Compartment (4.0L)

G00365529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

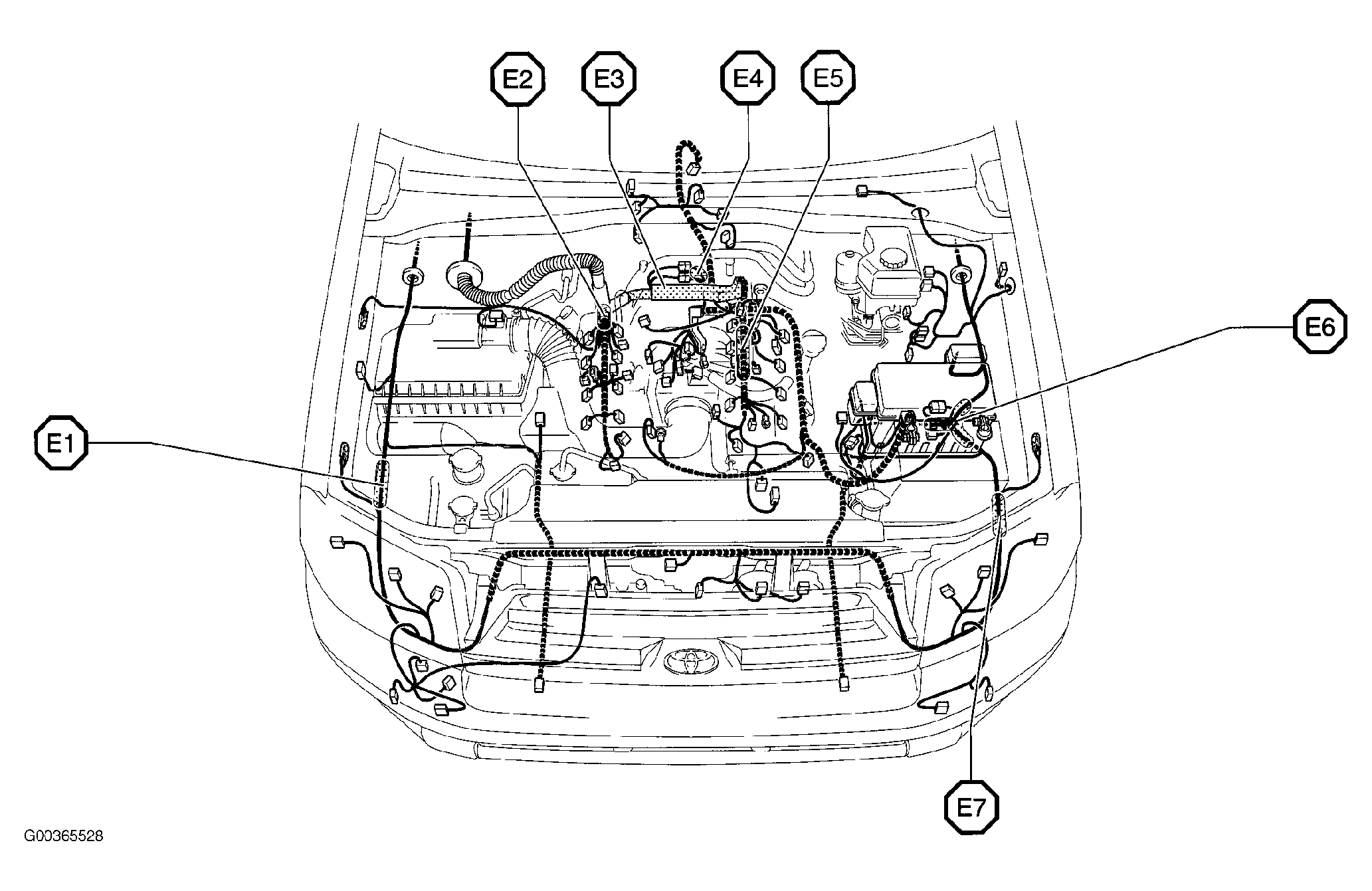

Fig 26: Engine Compartment (4.7L)

G00365528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Dash

G00262599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

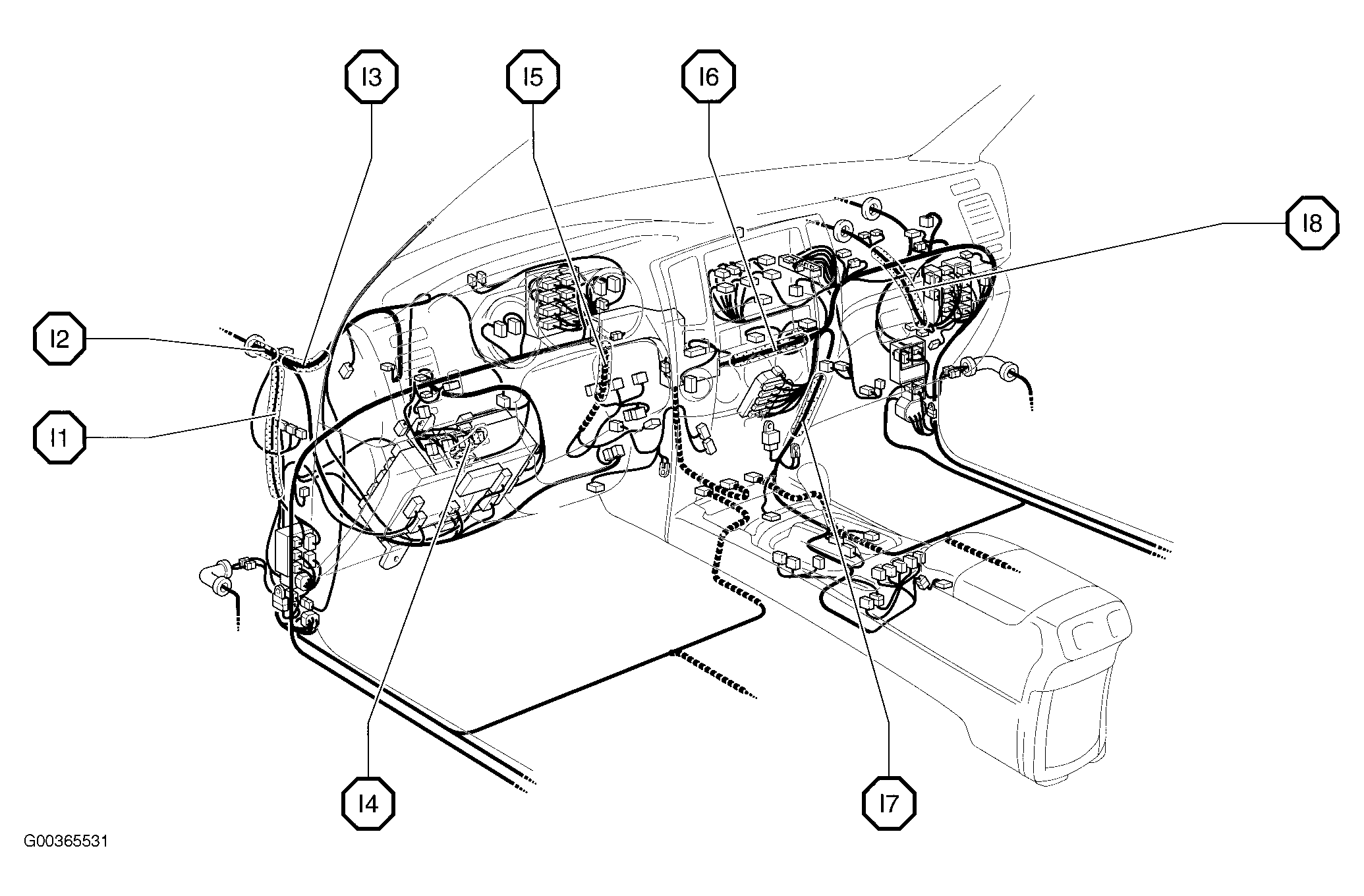

Fig 28: Dash

G00365531

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Vehicle Overview

G00262601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Front Seats

G00365513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

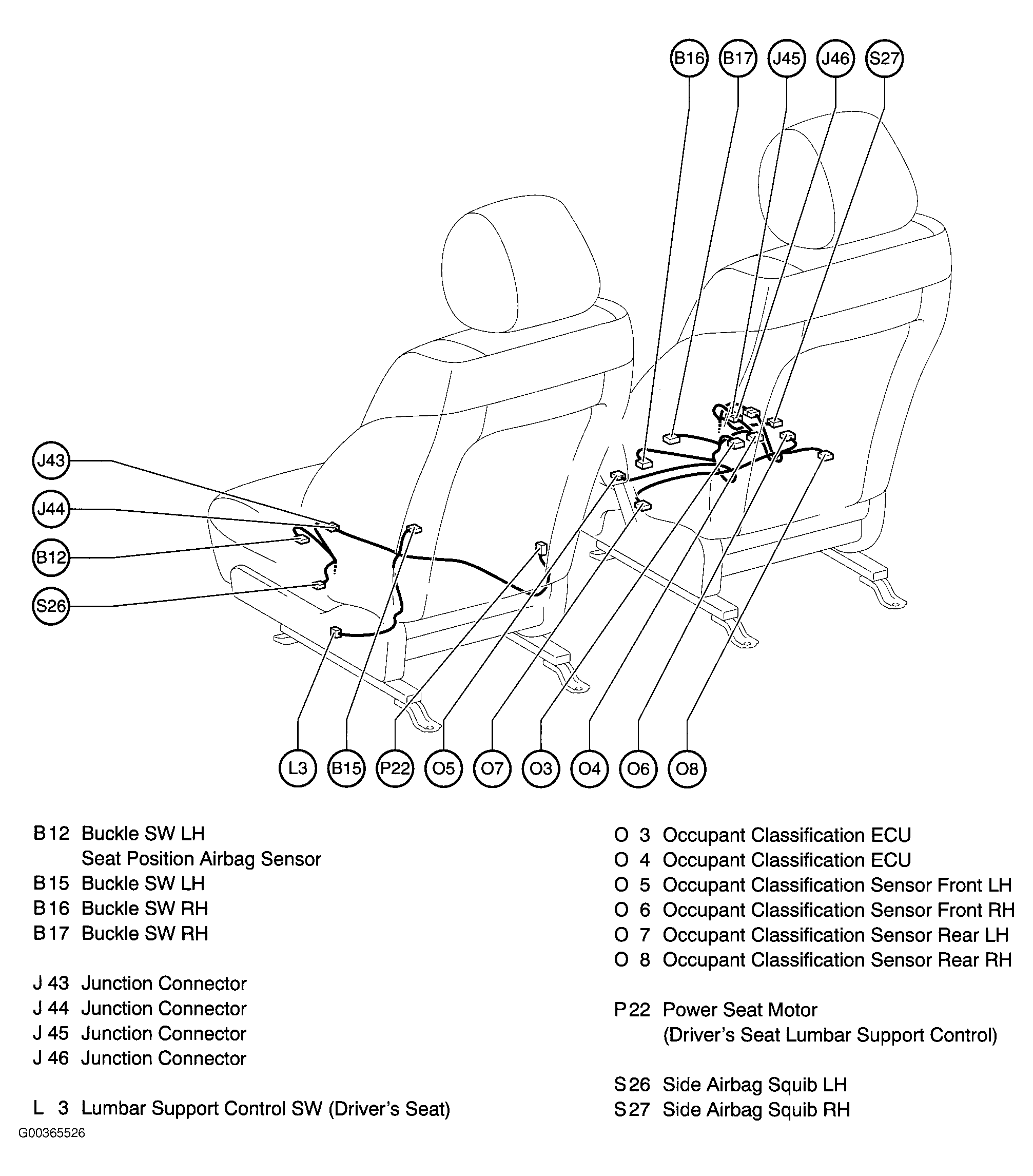

Fig 31: Front Seats (Manual Seats)

G00365526

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

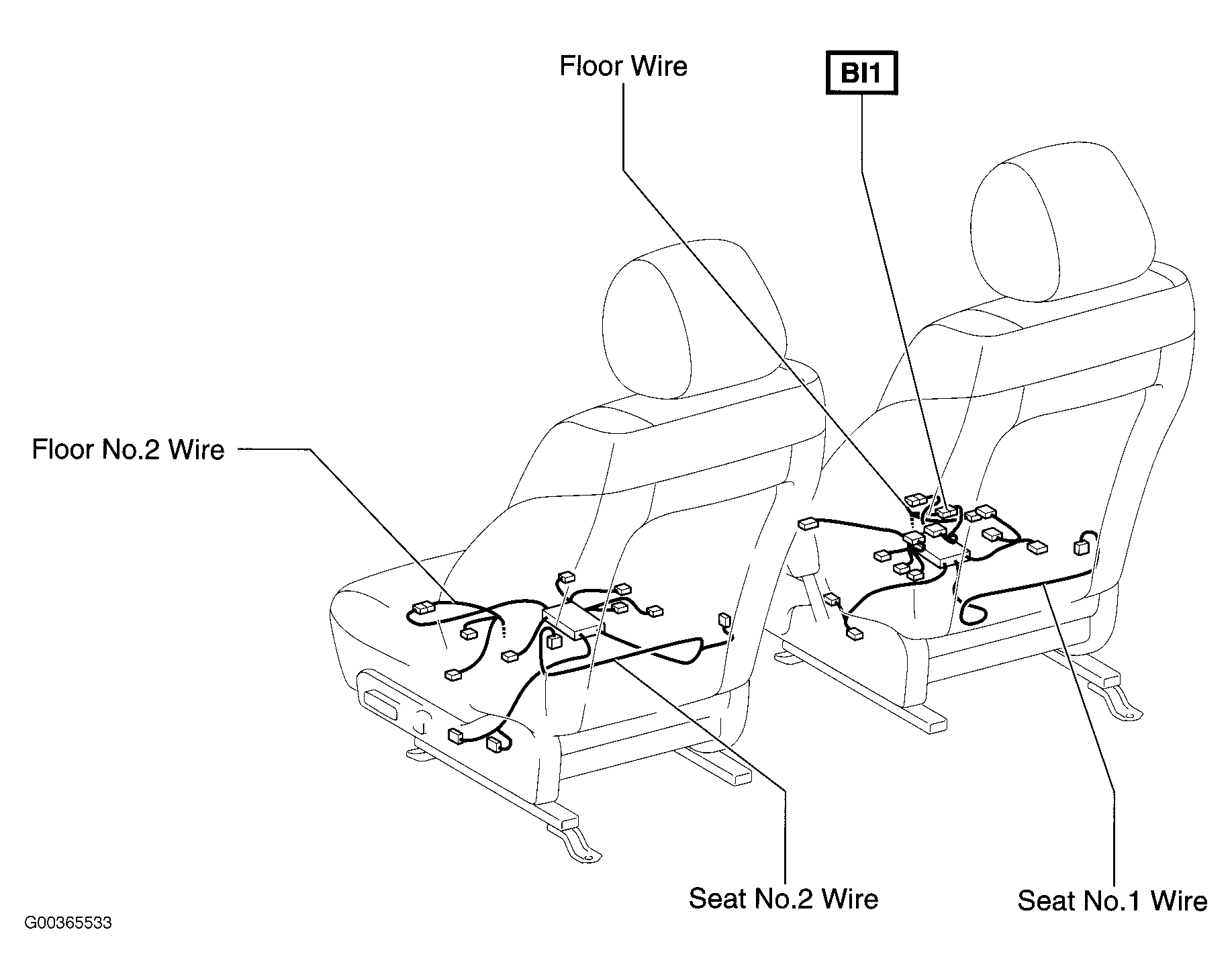

Fig 32: Front Seats

G00365533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
