Navigation Controller ASSY: Replacement

HINT:

• See LOCATION
• Installation is in the reverse order of removal

1. REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
2. REMOVE NAVIGATION CONTROLLER ASSY
   1. Disengage the 5 claws and remove the navigation controller assy.

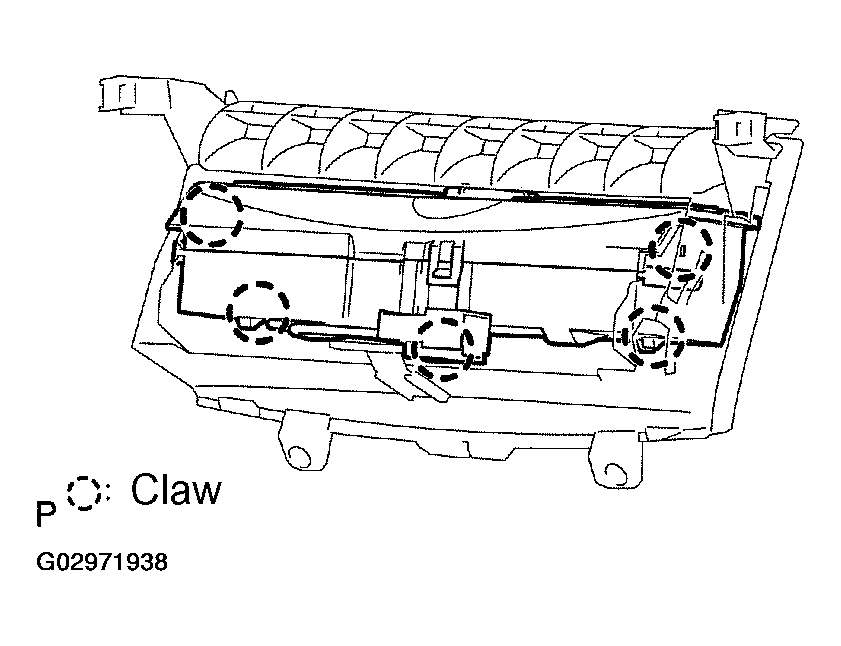

      Fig 1: Removing Navigation Controller Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
