Push Button Start - Diagnostics: Location

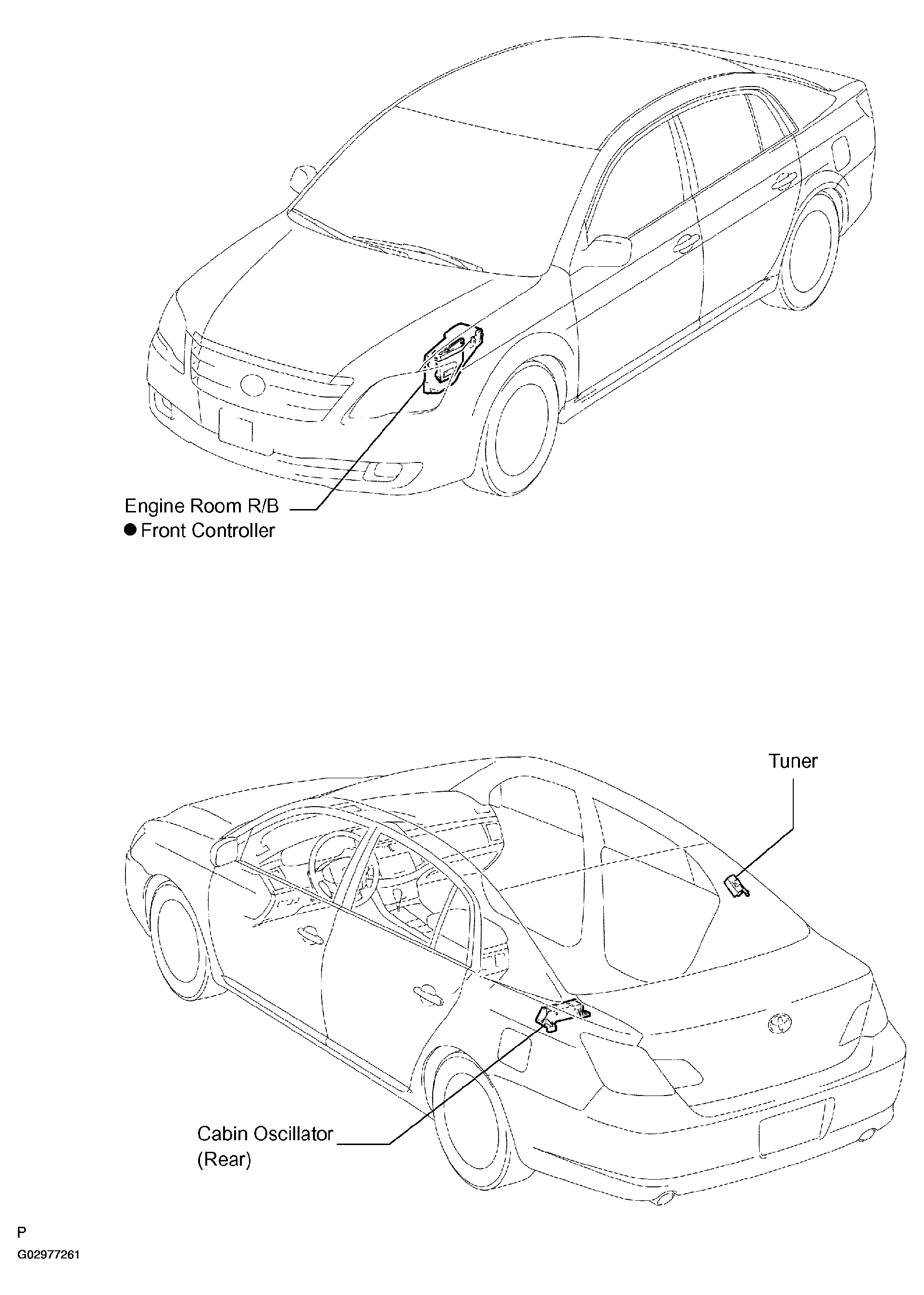

Fig 1: Locating Push Button Start (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

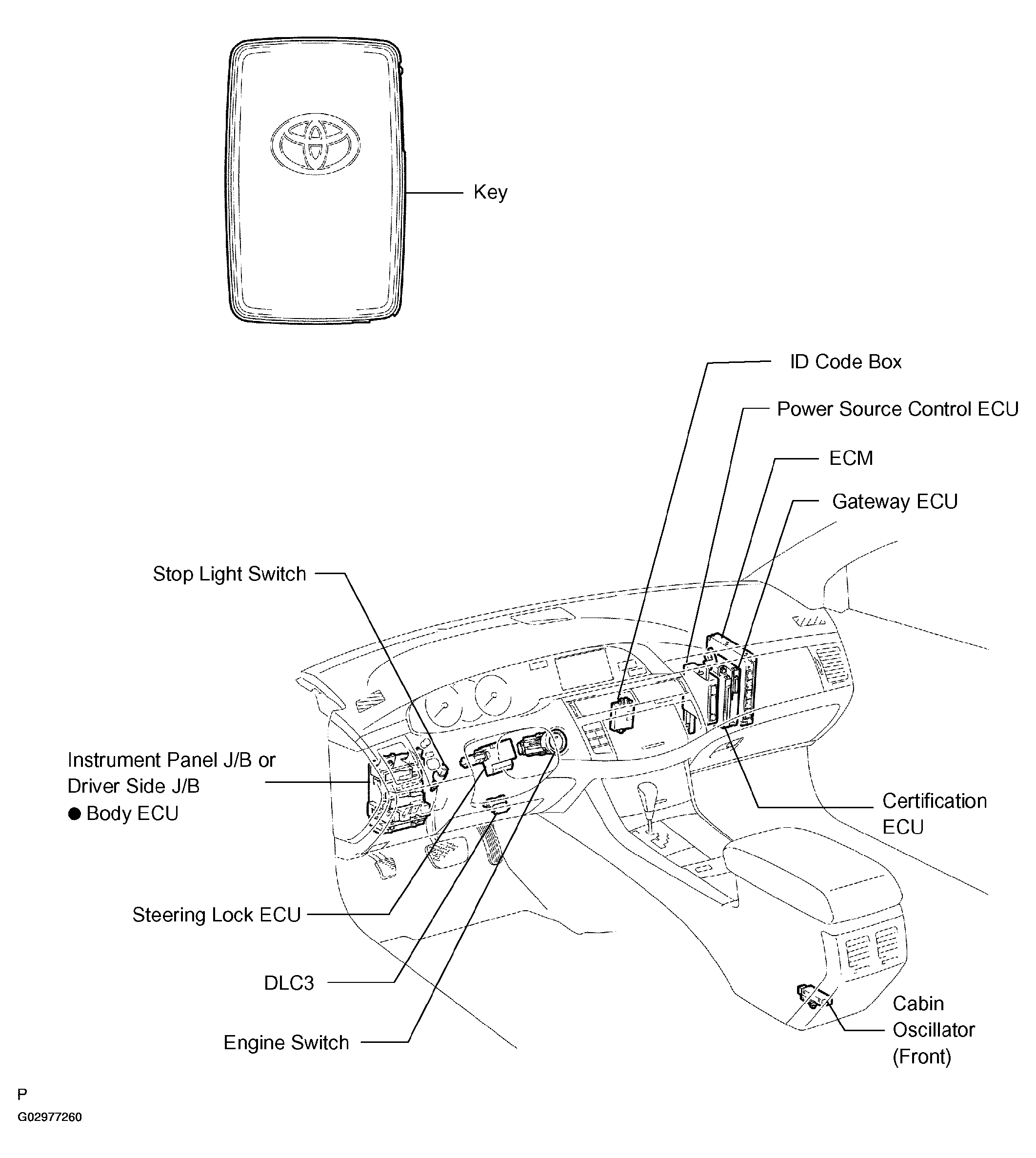

Fig 2: Locating Push Button Start (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
