System Diagram

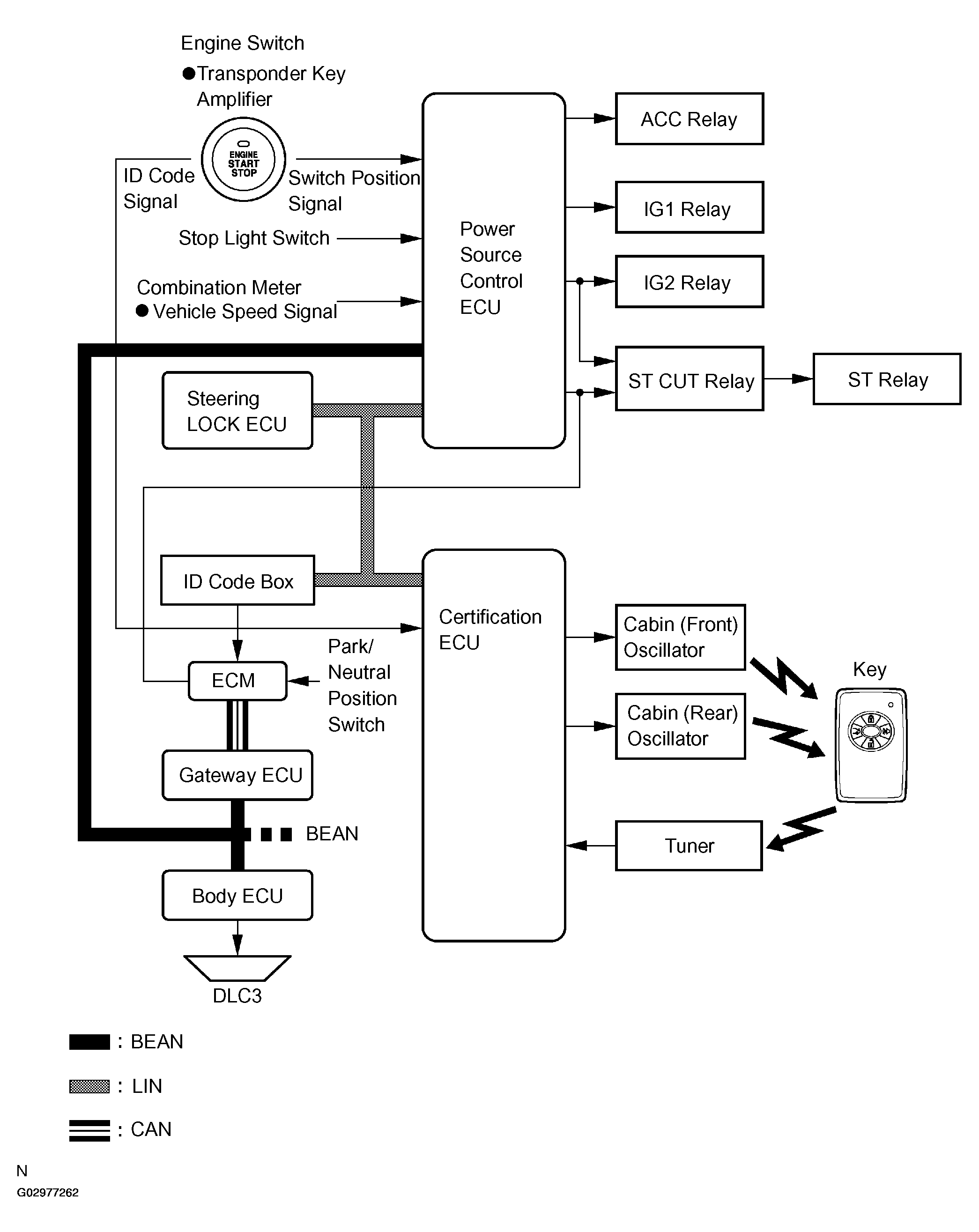

Fig 1: Push Button Start System Diagram (1 Of 2)
G02977262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

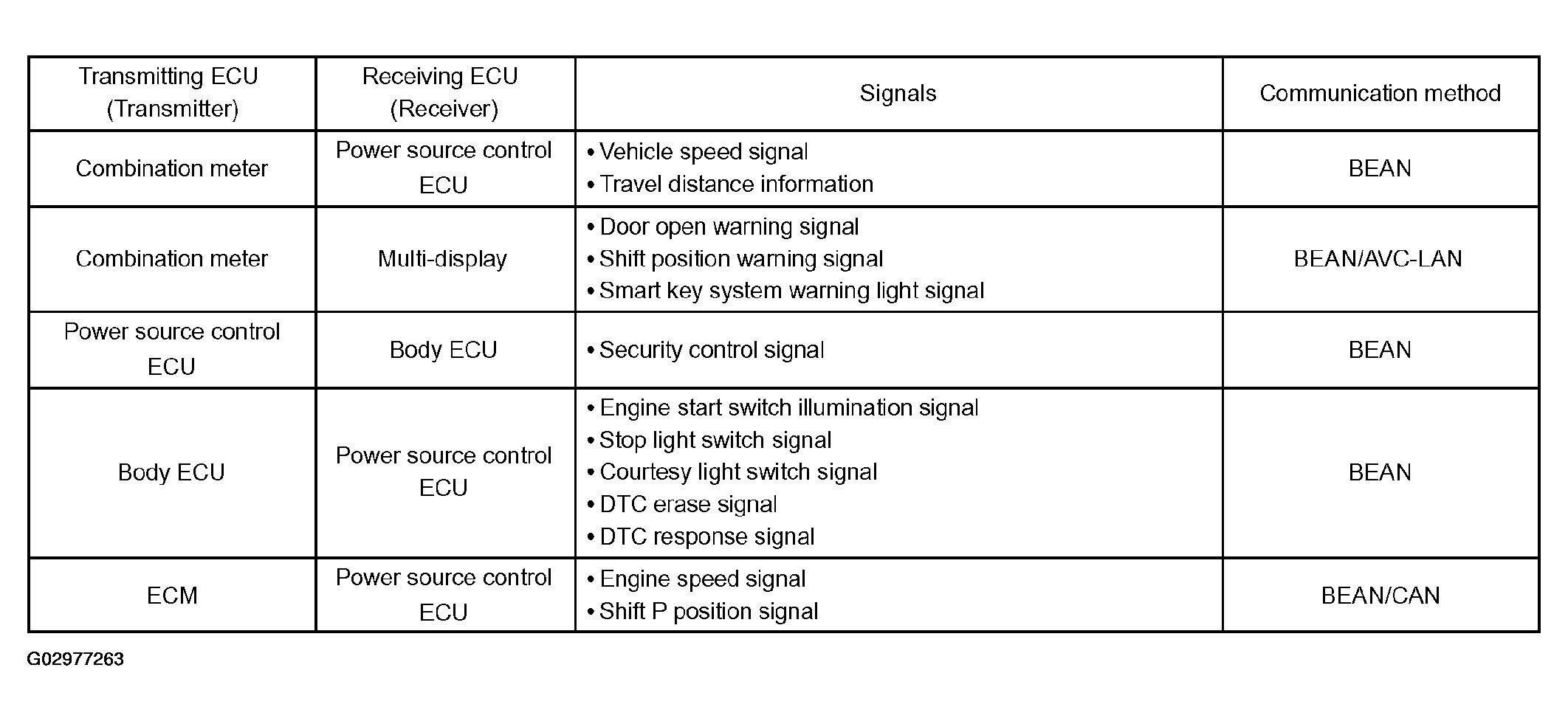

Fig 2: Push Button Start System Diagram (2 Of 2)
G02977263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
