Avalon Limited
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Starting System & Charging System
›
System Diagram
System Diagram

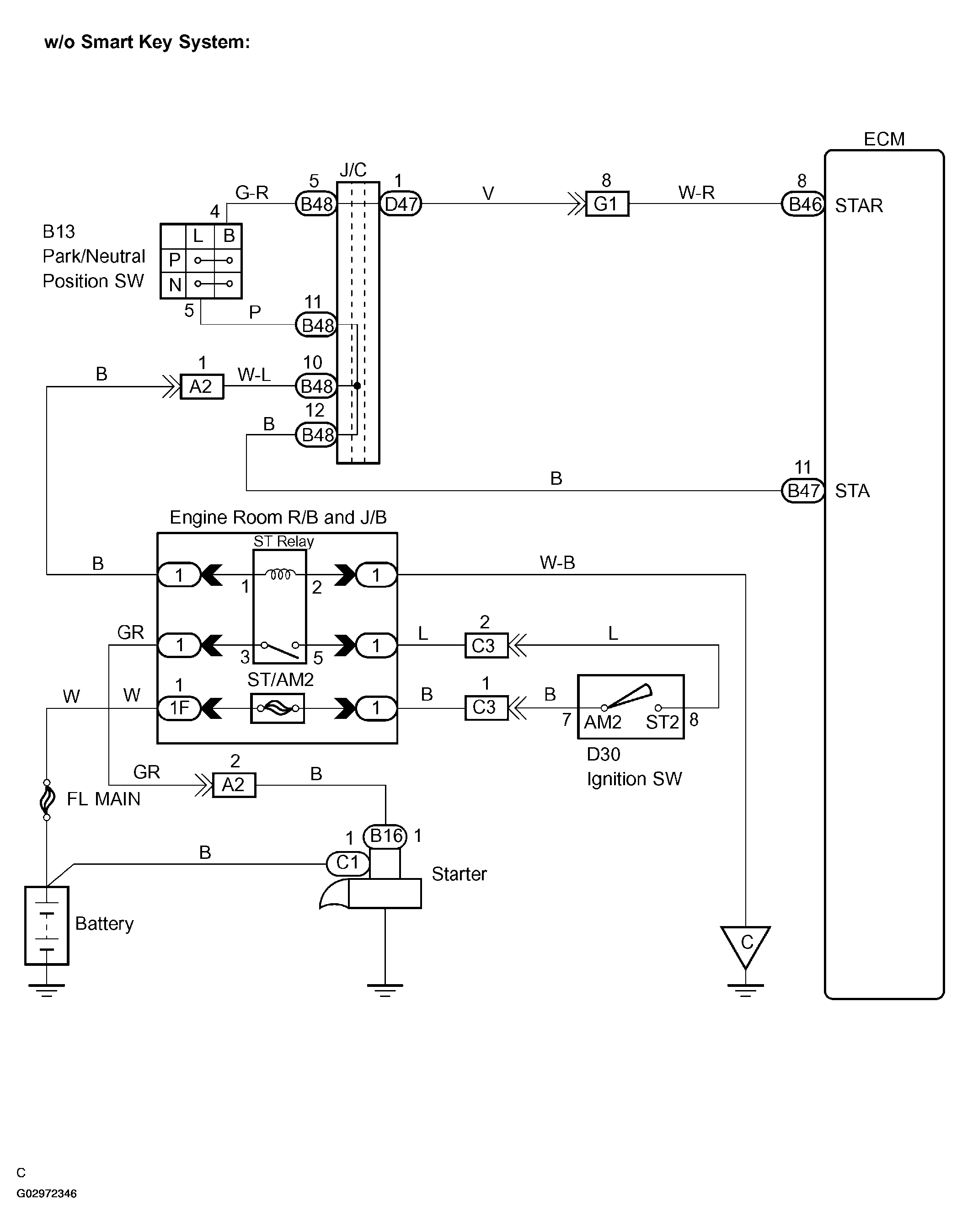

Fig 1: System Diagram W/O Smart Key System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

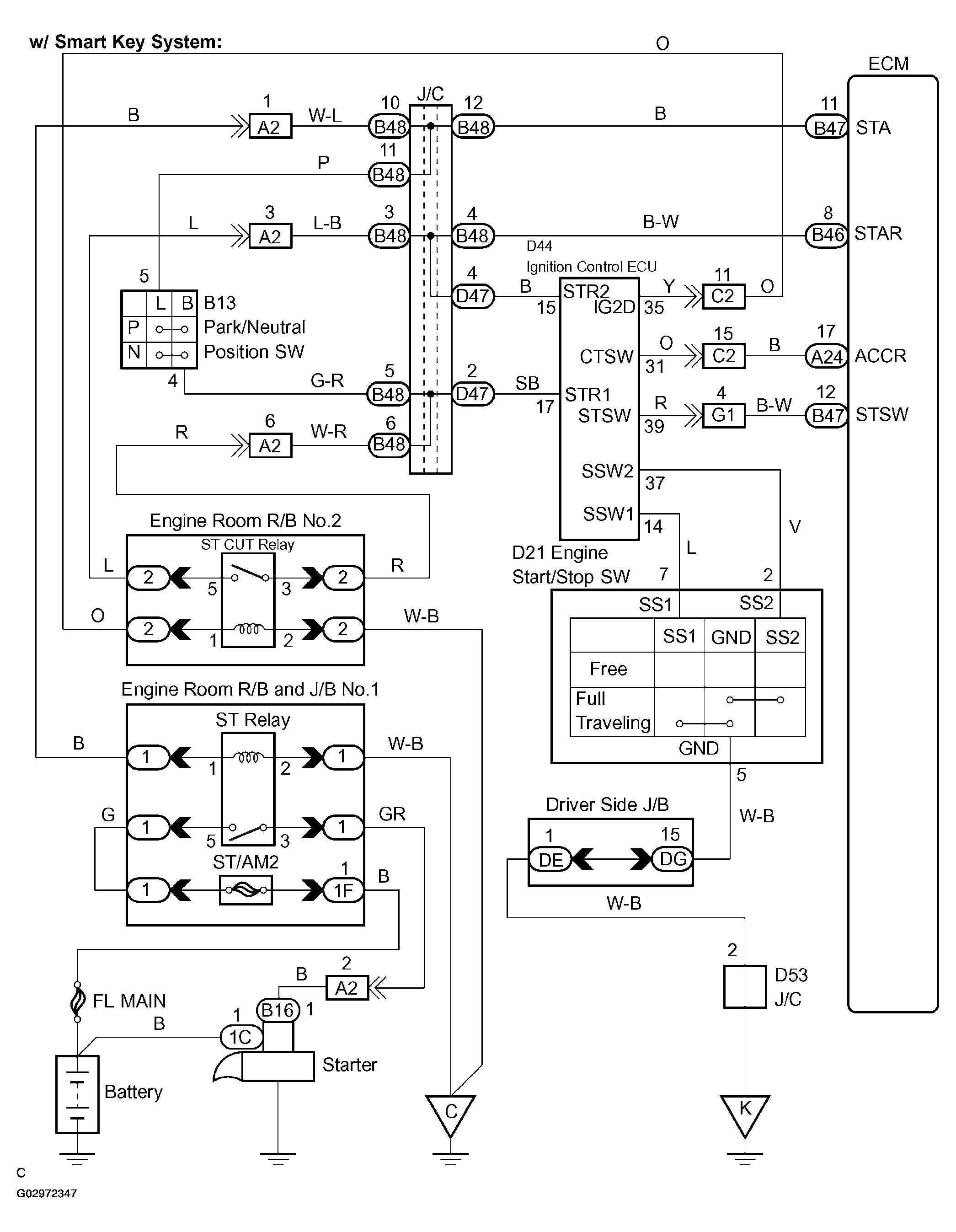

Fig 2: System Diagram With Smart Key System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
