ECM Power Source Circuit: Wiring Diagram

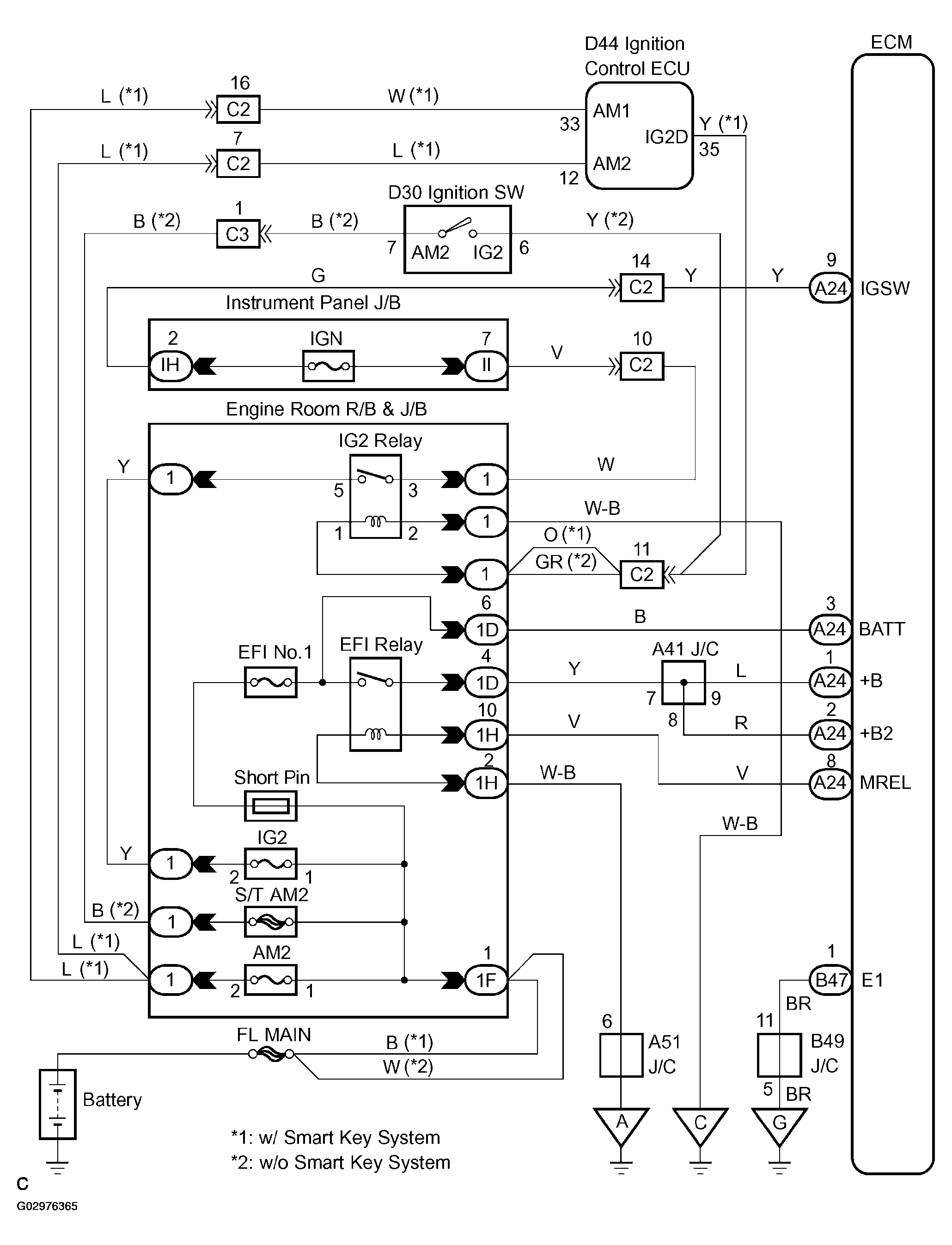

Fig 1: Identifying Wiring Diagram
G02976365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
